MG7TMSTD, 6.8 Ton, Mini-Gap Flange Spreader Set, 27mm Maximum Spread
The RIVERLAKE SW9TM is a maintenance‑free mechanical flange spreader designed for safe, controlled opening of pipe flanges during gasket replacement, valve maintenance, and routine service operations. Delivering 9 tons of spreading force with a maximum opening distance of 81 mm, this lightweight, ergonomic tool requires only a 6 mm initial gap to begin operation – making it ideal for flanges that are lightly compressed or partially separated.
Description
Model: MG7TMSTD | Product Line: Industrial Tools
Unique Double‑Angled Wedge Technology: The MG7TMSTD features an innovative double‑angled wedge design that generates greater spreading force without reducing the achievable spreading distance. This geometry provides efficient, progressive separation even on stubborn or corroded flanges.
Reversible Leg Design for Versatility: The reversible leg configuration significantly expands the range of applications. By simply reversing the leg, the tool adapts to different flange thicknesses, access orientations, or joint configurations – reducing the need for multiple spreader types.
Safe, Quick, and Easy Operation: The tool locks positively onto the flange joint, eliminating the risk of slipping or dislodging during use. Operation is straightforward: insert the tip into the gap, actuate the mechanism (manual or hydraulic depending on configuration), and the flange opens smoothly. This saves valuable time and reduces labor costs compared to makeshift prying or wedging methods.
Robust & Lightweight Construction: Despite its high force output, the MG7TMSTD is built to be lightweight and easy to handle. The compact size allows use in tight spaces, while durable materials ensure long service life in harsh industrial environments

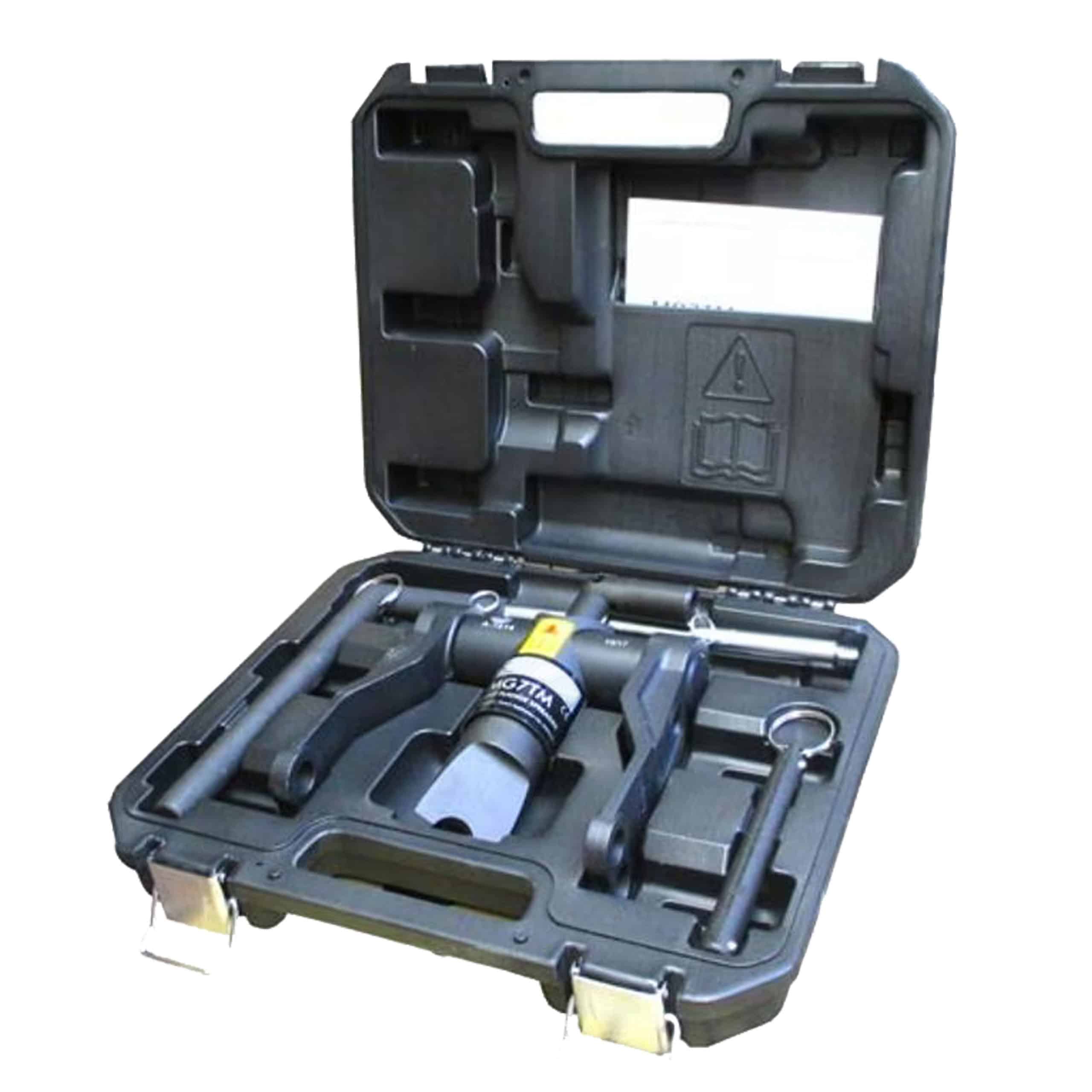

Tool Kit Including:
Dimensions

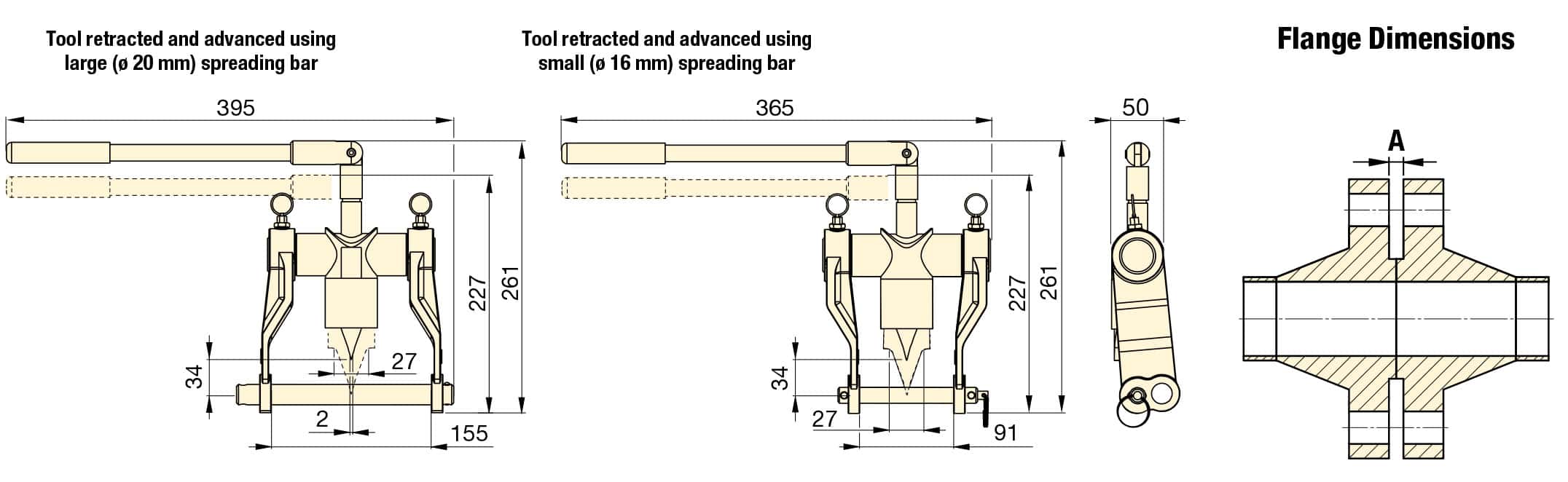

Drawing
Specifications
| Model | SG7TMSTD |
| Type | Mechanical |
| Maximum Spreading Force(Ton) | 6.8 |
| Maximum Spreading Distance(mm) | 27 |
| Falnge Min. Access Gap A(mm) | 2 |
| Wedge Width(mm) | 45 |
| Weight(Kg) | 5.5 |
