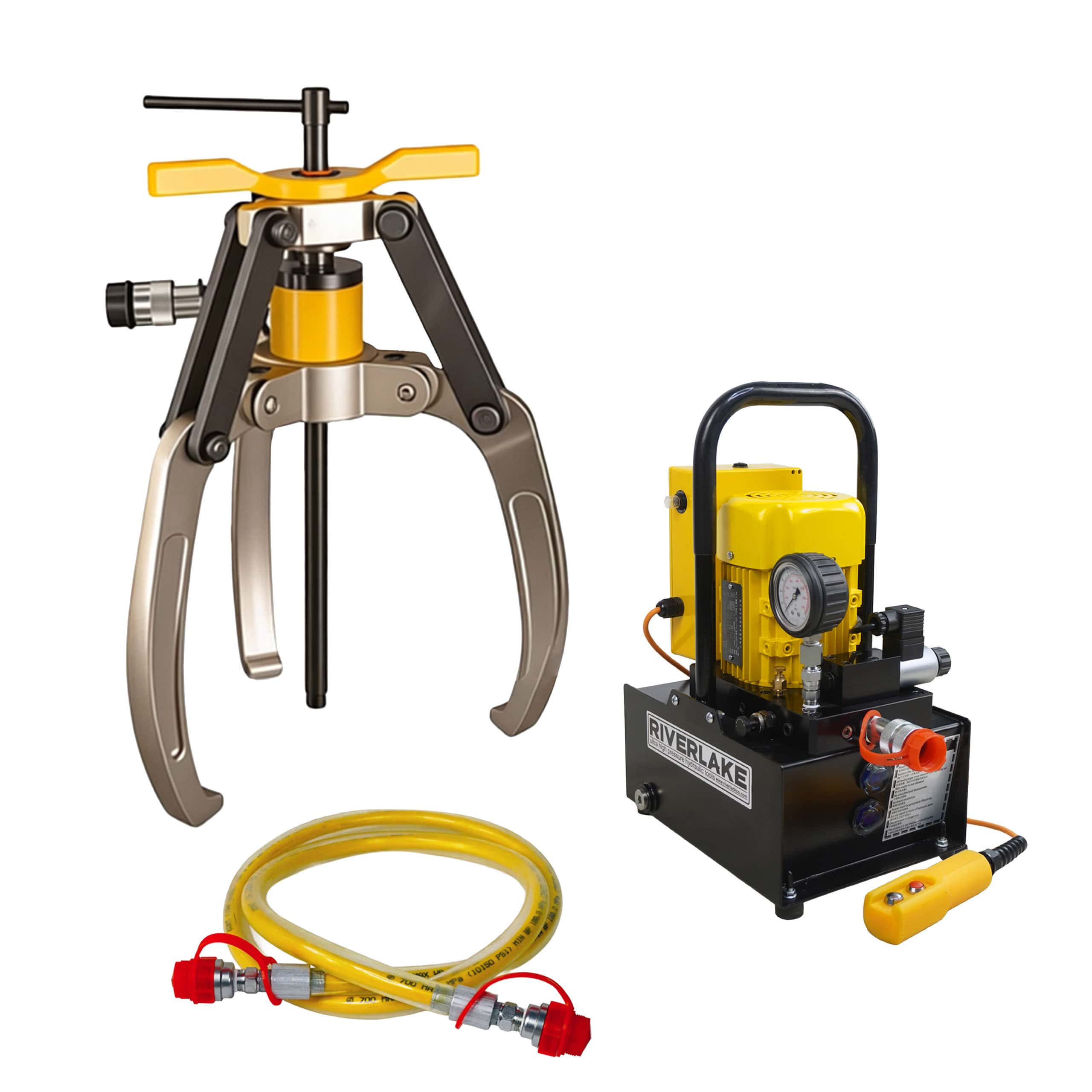

LGHS310EE, 10 Ton, 3 Jaw, Hydraulic Lock-Grip Puller Set with Electric Hydraulic Pump
The LGHS Series Hydraulic Lock Grip Puller Set is a comprehensive, high-performance pulling solution engineered by RIVERLAKE for demanding industrial maintenance and repair applications. This complete kit integrates precision hydraulic components with the innovative LGH Series Lock Grip Puller, delivering exceptional pulling power, operational safety, and user-friendly efficiency in a single, coordinated system.
Description
Series: LGHS | Product Line: Industrial Tools
System Components
Each LGHS Series set comprises the following core elements:
-
Hydraulic Pump – Provides reliable, controlled hydraulic pressure to drive the pulling operation.Available in hand pump,pneumatic pump,electric pump and battery powered hydraulic pump options.
-
GA45GC Pressure Gauge Assembly (included in manual pump and pneumatic pump configurations) – Enables accurate real-time pressure monitoring for precise load control. (Note: GA45GC is not included in sets paired with electric or battery-driven hydraulic pumps, as these pumps are already equipped with built-in pressure gauges.)
-
HSP700PC-2-MM Hydraulic Hose – A 2‑meter (6.6 ft) hose rated for a maximum working pressure of 700 bar (10,000 psi) , fitted with CEJN male quick couplers at both ends for secure, leak-free connections. The hose is protected by a PC Burst Sleeve for added operator safety in the event of hose failure.
-
LGH Series Hydraulic Lock Grip Puller – The core pulling unit, engineered for superior performance and ease of use.
Tool Kit Components
| LGH310, Hydraulic Lock Grip Puller | 1pcs |
| HSP700PC-2-MM, Hydraulic Hose | 1pcs |
| HC3005EVC32R, Electric Hydraulic Pump | 1pcs |
