LGHMS324A, 24 Ton, 3 Jaw, Hydraulic Lock-Grip Master Puller Set with Pneumatic Pump

Series: LGHMS | Product Line: Industrial Tools

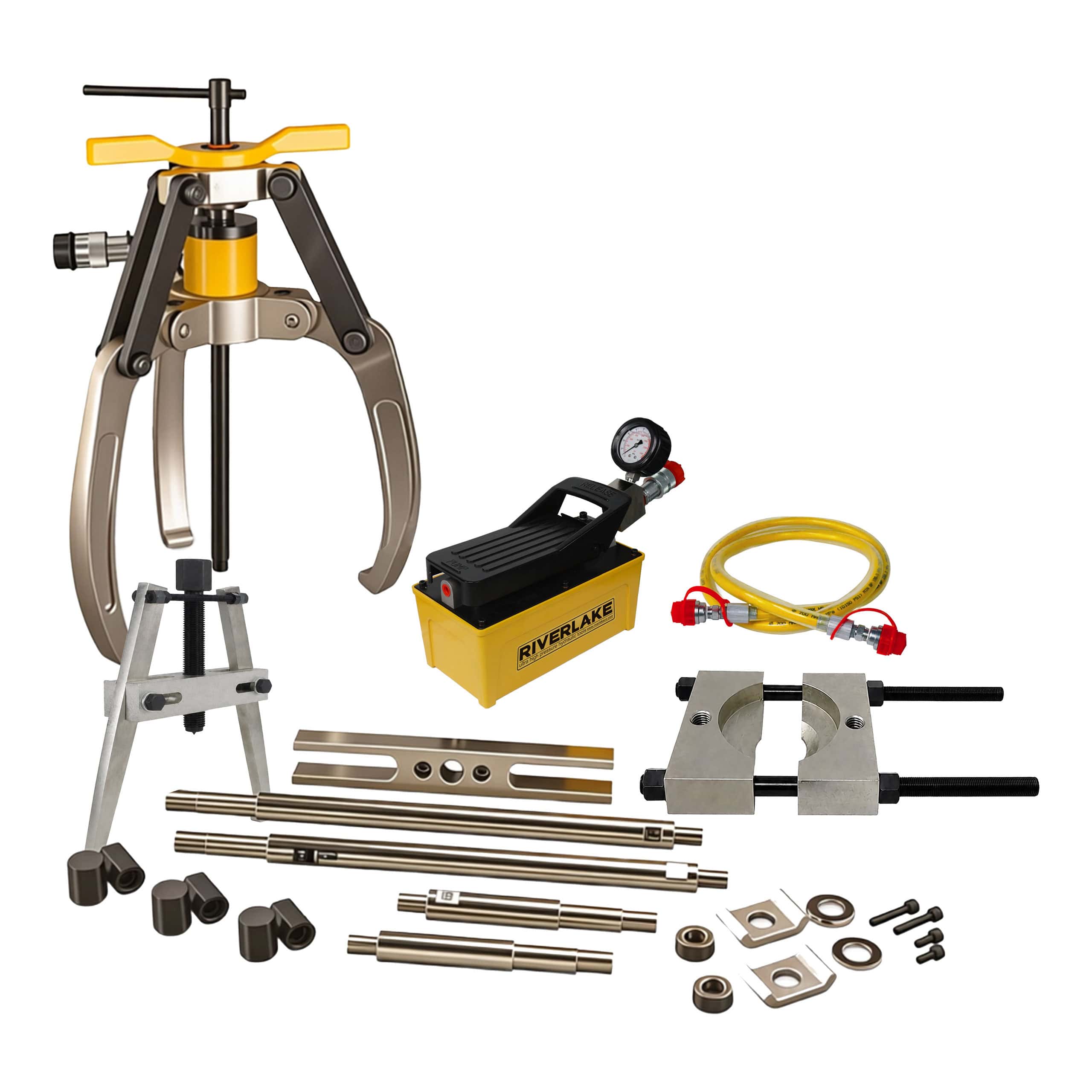

System Components

Each LGHMS Series set is meticulously assembled with the following high-grade components:

• Hydraulic Pump – Choose from a wide range of power sources to suit your operational needs: hand pump, pneumatic pump, electric pump, or battery pump (flexible options for both workshop and field service).

• GA45GC Pressure Gauge Assembly – Enables precise hydraulic pressure monitoring for accurate load control. (Note: The GA45GC is excluded in configurations paired with electric or battery-driven pumps, as these power units come with built-in pressure gauges.)

• HSP700PC-2-MM Hydraulic Hose – A 2‑meter (6.6 ft) high-performance hose rated for a maximum working pressure of 700 bar (10,000 psi) , equipped with CEJN male quick couplers at both ends for secure, tool-free connections. The hose is further safeguarded by a PC Burst Sleeve to contain potential spray in the unlikely event of hose failure, ensuring maximum operator protection.

• LGH Series Hydraulic Lock Grip Puller – The rugged core puller unit renowned for its locking jaw mechanism and synchronized travel.

• Cross Bearing Puller – Designed specifically for safe, efficient removal of universal joint cross bearings without damaging the yoke or surrounding components.

• Bearing Separator – Engineered to access and separate tightly fitted bearings, pulleys, and gears from shafts with minimal clearance.

• Bearing Cup Puller – Purpose-built for extracting bearing cups (outer races) from blind or through-holes with secure, non-slip gripping.
