Overview

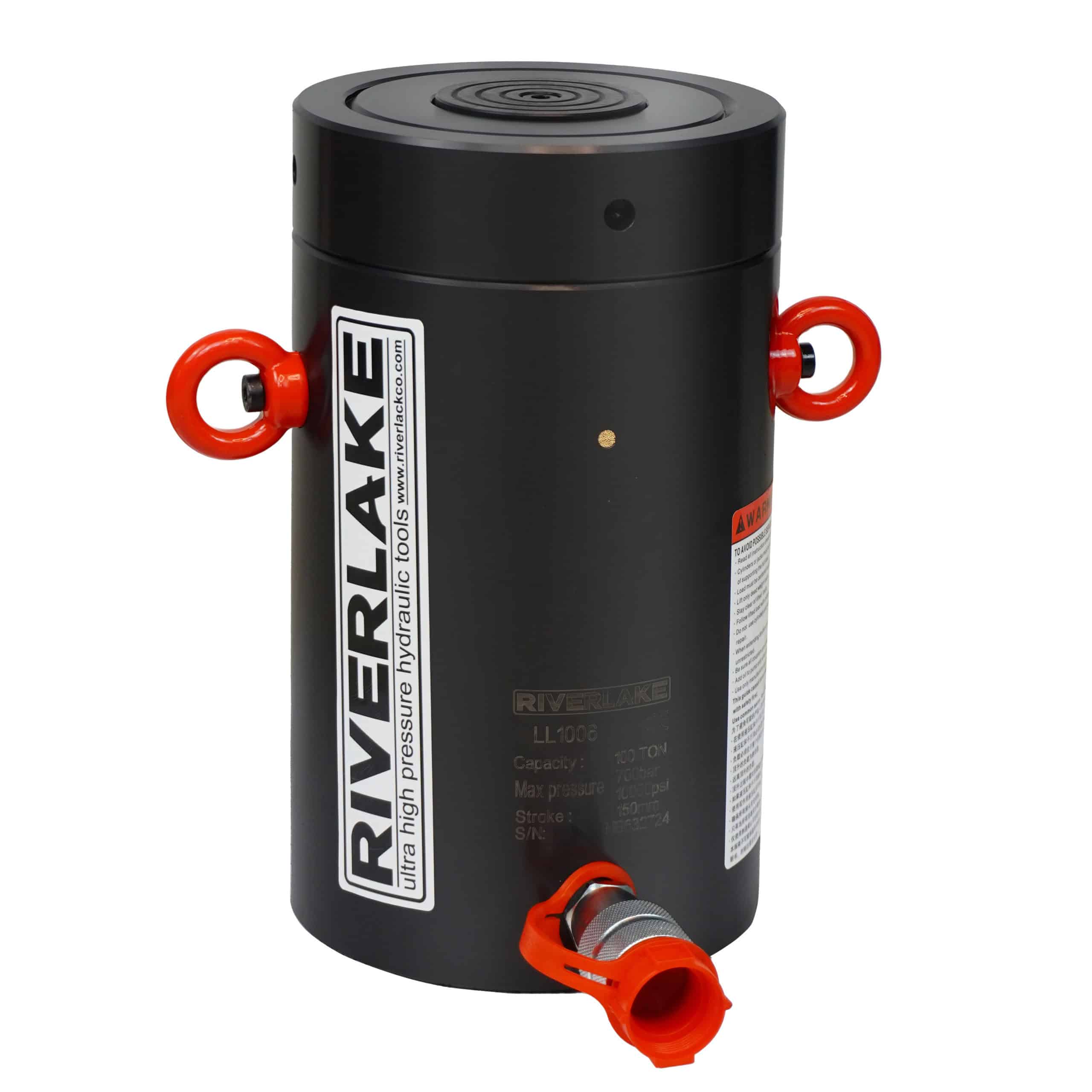

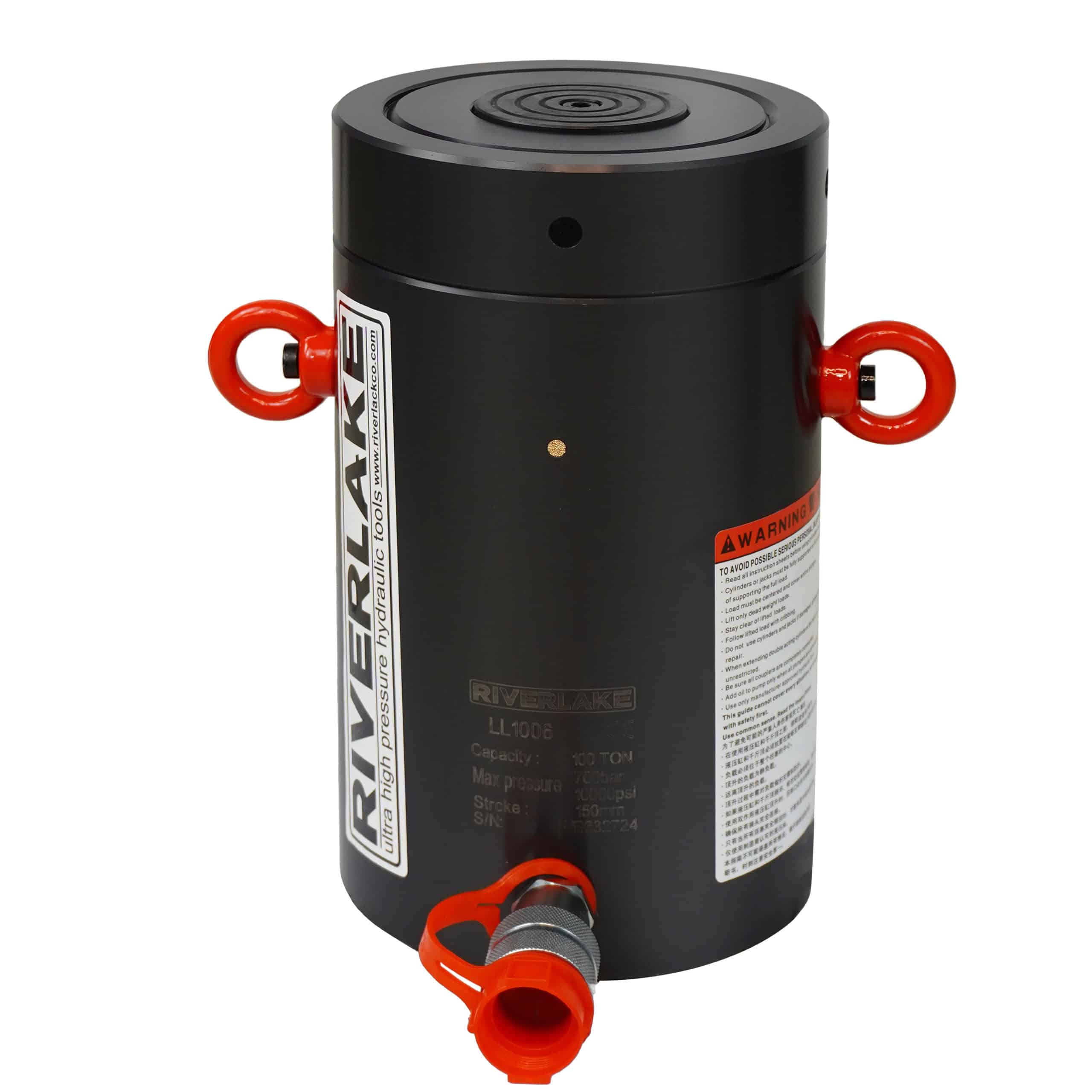

HCL8002, 800 Ton Capacity, 50mm Stroke, Single Acting,High Tonnage, Lock Nut Hydraulic Cylinder

The RIVERLAKE HCL Series is engineered for heavy lifting applications requiring secure, long-term load holding combined with straightforward single acting operation. Designed as high tonnage, lock nut hydraulic cylinders with load return, this series delivers exceptional safety, durability, and ease of use—making it the ideal choice for bridge construction, structural jacking, heavy equipment maintenance, and applications where loads must be held securely for extended periods.

PRICE ON REQUEST

Features

Description

Series: HCL | Product Line: Industrial Tools

Safe Mechanical Load Holding: The lock nut provides positive mechanical load support, ensuring secure load holding for extended periods—even in the event of hydraulic pressure loss. This feature delivers critical safety for long-duration lifting and maintenance operations.
Low Friction, Easy Operation: The low friction lock nut is designed to spin easily, significantly reducing the time and effort required for mechanical load engagement and disengagement compared to conventional designs.
Simple Load Return Design: Single acting operation with load return provides straightforward functionality—hydraulic pressure extends the piston, while retraction is achieved through the weight of the load. This simple design minimizes maintenance requirements and enhances reliability.
Superior Surface Durability: Nitrocarburized surface treatment delivers exceptional resistance to side-loading and cyclic wear, significantly extending cylinder life in demanding, repetitive applications.
Exceptional Side-Load Capacity: Withstands up to 10% side-load for up to 90% of maximum stroke, providing reliable performance even when perfect alignment cannot be achieved in real-world working conditions.
Over-Travel Protection: The overflow port functions as an integrated stroke limiter, preventing plunger blow-out and ensuring safe operation within design parameters.
All-Weather Protection: Weather-protected design, both internally and externally, ensures reliable operation in outdoor, marine, and harsh environmental conditions.
Full-Stroke Plunger Support: Replaceable bearings support the plunger throughout the entire stroke, minimizing wear, maintaining alignment, and facilitating easy maintenance when replacement is required.
Safe Handling & Installation: Certified lifting eyes are provided for safe transport and positioning, while base mounting holes are included as standard for convenient, secure fixturing.

Specifications

Maximum Operating Pressure (bar)	700
Capacity Class (tonnage)	800
Stroke (mm)	50
Collapsed Height(mm)	430
Extended Height(mm)	480
Return Type	Single-Acting, Load Retraction
Cylinder Effective Area (cm²)	1164.2
Oil Capacity (cm³)	5821
Surface Treatment	Gas Nitriding and Post Oxidation
Coupler	CEJN 3/8NPT-18
Weight (kg)	668

Dimensions

Collapsed Height/mm(A)	430
Extended Height/mm(B)	480
Outside Dia/mm(D)	505
Cylinder Bore Dia/mm(E)	385
Plunger Dia/mm(F)	Tr 385X6
Base To Advance Port/mm(H)	95
Saddle Dia/mm(J)	224
Saddle Protri. From Plgr./mm(K)	5
Lock Nut Height/mm(S)	90

Series Comparison

Model Number	Capacity/Ton	Stroke/mm	Cylinder Effective Area/cm2	Oil Capacity/cm3	Collapsed Height/mm(A)	Extended Height/mm(B)	Outside Dia/mm(D)	Cylinder Bore Dia/mm(E)	Plunger Dia/mm(F)	Base To Advance Port/mm(H)	Standard Saddle Dia/mm(J)	Saddle Protri. From Plgr./mm(K)	Lock Nut Height/mm(S)	Saddle Dia/mm(J1)	Saddle Height/mm(A1)	Saddle Model Number	Bolt Circle/mm(U)	Thread Size/mm(V)	Min. Thread Depth/mm(Z)	Number of Holes	Angle From Coupler	Weight/Kg
HCL502	50	50	78.5	393	164	214	130	100	Tr 100X4	24	71	2	25	71	179	CATS100	105	M8X1.25	10	2	90°	17
HCL504		100	78.5	785	214	314	130	100	Tr 100X4	24	71	2	25	71	229	CATS100	105	M8X1.25	10	2	90°	22
HCL506		150	78.5	1178	264	414	130	100	Tr 100X4	24	71	2	25	71	279	CATS100	105	M8X1.25	10	2	90°	27
HCL508		200	78.5	1571	314	514	130	100	Tr 100X4	24	71	2	25	71	329	CATS100	105	M8X1.25	10	2	90°	32
HCL5010		250	78.5	1963	364	614	130	100	Tr 100X4	24	71	2	25	71	379	CATS100	105	M8X1.25	10	2	90°	38
HCL5012		300	78.5	2356	414	714	130	100	Tr 100X4	24	71	2	25	71	429	CATS100	105	M8X1.25	10	2	90°	43
HCL1002	100	50	143.1	716	187	237	175	135	Tr 135X6	33	71	2	33	71	202	CATS100	150	M12X1.75	17	2	90°	35
HCL1004		100	143.1	1431	237	337	175	135	Tr 135X6	33	71	2	33	71	252	CATS100	150	M12X1.75	17	2	90°	44
HCL1006		150	143.1	2147	287	437	175	135	Tr 135X6	33	71	2	33	71	302	CATS100	150	M12X1.75	17	2	90°	54
HCL1008		200	143.1	2863	337	537	175	135	Tr 135X6	33	71	2	33	71	352	CATS100	150	M12X1.75	17	2	90°	63
HCL10010		250	143.1	3578	387	637	175	135	Tr 135X6	33	71	2	33	71	402	CATS100	150	M12X1.75	17	2	90°	73
HCL10012		300	143.1	4294	437	737	175	135	Tr 135X6	33	71	2	33	71	452	CATS100	150	M12X1.75	17	2	90°	82
HCL1502	150	50	213.8	1069	209	259	215	165	Tr 165X6	41	130	2	40	126	225	CATS201	185	M12X1.75	22	2	90°	59
HCL1504		100	213.8	2138	259	359	215	165	Tr 165X6	41	130	2	40	126	275	CATS201	185	M12X1.75	22	2	90°	73
HCL1506		150	213.8	3207	309	459	215	165	Tr 165X6	41	130	2	40	126	325	CATS201	185	M12X1.75	22	2	90°	87
HCL1508		200	213.8	4276	359	559	215	165	Tr 165X6	41	130	2	40	126	375	CATS201	185	M12X1.75	22	2	90°	102
HCL15010		250	213.8	5346	409	659	215	165	Tr 165X6	41	130	2	40	126	425	CATS201	185	M12X1.75	22	2	90°	116
HCL15012		300	213.8	6415	459	759	215	165	Tr 165X6	41	130	2	40	126	475	CATS201	185	M12X1.75	22	2	90°	130
HCL2002	200	50	283.5	1418	238	288	250	190	Tr 190X6	47	130	2	45	126	254	CATS201	215	M12X1.75	22	3	60°	85
HCL2004		100	283.5	2835	288	388	250	190	Tr 190X6	47	130	2	45	126	304	CATS201	215	M12X1.75	22	3	60°	105
HCL2006		150	283.5	4253	338	488	250	190	Tr 190X6	47	130	2	45	126	354	CATS201	215	M12X1.75	22	3	60°	124
HCL2008		200	283.5	5671	388	588	250	190	Tr 190X6	47	130	2	45	126	404	CATS201	215	M12X1.75	22	3	60°	143
HCL20010		250	283.5	7088	438	688	250	190	Tr 190X6	47	130	2	45	126	454	CATS201	215	M12X1.75	22	3	60°	163
HCL20012		300	283.5	8506	488	788	250	190	Tr 190X6	47	130	2	45	126	504	CATS201	215	M12X1.75	22	3	60°	182
HCL2502	250	50	363.1	1815	249	299	280	215	Tr 215X6	53	140	2	52	175	288	CATS300	245	M12X1.75	22	3	60°	119
HCL2504		100	363.1	3631	299	399	280	215	Tr 215X6	53	140	2	52	175	338	CATS300	245	M12X1.75	22	3	60°	143
HCL2506		150	363.1	5446	349	499	280	215	Tr 215X6	53	140	2	52	175	388	CATS300	245	M12X1.75	22	3	60°	167
HCL2508		200	363.1	7261	399	599	280	215	Tr 215X6	53	140	2	52	175	438	CATS300	245	M12X1.75	22	3	60°	192
HCL25010		250	363.1	9076	449	699	280	215	Tr 215X6	53	140	2	52	175	488	CATS300	245	M12X1.75	22	3	60°	216
HCL25012		300	363.1	10892	499	799	280	215	Tr 215X6	53	140	2	52	175	538	CATS300	245	M12X1.75	22	3	60°	240
HCL3002	300	50	433.7	2169	278	328	305	235	Tr 235X6	58	140	2	56	175	317	CATS300	260	M16X2	25	3	60°	158
HCL3004		100	433.7	4337	328	428	305	235	Tr 235X6	58	140	2	56	175	367	CATS300	260	M16X2	25	3	60°	186
HCL306		150	433.7	6506	378	528	305	235	Tr 235X6	58	140	2	56	175	417	CATS300	260	M16X2	25	3	60°	215
HCL3008		200	433.7	8675	428	628	305	235	Tr 235X6	58	140	2	56	175	467	CATS300	260	M16X2	25	3	60°	244
HCL30010		250	433.7	10843	478	728	305	235	Tr 235X6	58	140	2	56	175	517	CATS300	260	M16X2	25	3	60°	272
HCL30012		300	433.7	13012	528	828	305	235	Tr 235X6	58	140	2	56	175	567	CATS300	260	M16X2	25	3	60°	301
HCL4002	400	50	572.6	2863	317	367	350	270	Tr 270X6	67	159	5	65	210	365	CTAS400	300	M12X2	25	3	60°	236
HCL4004		100	572.6	5726	367	467	350	270	Tr 270X6	67	159	5	65	210	415	CTAS400	300	M12X2	25	3	60°	274
HCL4006		150	572.6	8588	417	567	350	270	Tr 270X6	67	159	5	65	210	465	CTAS400	300	M12X2	25	3	60°	311
HCL4008		200	572.6	11451	467	667	350	270	Tr 270X6	67	159	5	65	210	515	CTAS400	300	M12X2	25	3	60°	349
HCL40010		250	572.6	14314	517	767	350	270	Tr 270X6	67	159	5	65	210	565	CTAS400	300	M12X2	25	3	60°	387
HCL40012		300	572.6	17177	567	867	350	270	Tr 270X6	67	159	5	65	210	615	CTAS400	300	M12X2	25	3	60°	425
HCL5002	500	50	730.6	3653	357	407	400	305	Tr 305X6	75	179	5	72	230	404	CATS500	340	M24X3	36	3	60°	341
HCL5004		100	730.6	7306	407	507	400	305	Tr 305X6	75	179	5	72	230	455	CATS500	340	M24X3	36	3	60°	390
HCL5006		150	730.6	10959	457	607	400	305	Tr 305X6	75	179	5	72	230	505	CATS500	340	M24X3	36	3	60°	439
HCL5008		200	730.6	14612	507	707	400	305	Tr 305X6	75	179	5	72	230	555	CATS500	340	M24X3	36	3	60°	489
HCL50010		250	730.6	18265	557	807	400	305	Tr 305X6	75	179	5	72	230	605	CATS500	340	M24X3	36	3	60°	538
HCL50012		300	730.6	21918	607	907	400	305	Tr 305X6	75	179	5	72	230	635	CATS500	340	M24X3	36	3	60°	587
HCL6002	600	50	855.3	4276	380	430	430	330	Tr 330X6	81	194	5	80	250	433	CATS600	370	M24X3	36	3	60°	427
HCL6004		100	855.3	8553	430	530	430	330	Tr 330X6	81	194	5	80	250	483	CATS600	370	M24X3	36	3	60°	484
HCL6006		150	855.3	12829	480	630	430	330	Tr 330X6	81	194	5	80	250	533	CATS600	370	M24X3	36	3	60°	541
HCL6008		200	855.3	17106	530	730	430	330	Tr 330X6	81	194	5	80	250	583	CATS600	370	M24X3	36	3	60°	598
HCL60010		250	855.3	21382	580	830	430	330	Tr 330X6	81	194	5	80	250	633	CATS600	370	M24X3	36	3	60°	655
HCL60012		300	855.3	25659	630	930	430	330	Tr 330X6	81	194	5	80	250	683	CATS600	370	M24X3	36	3	60°	712
HCL8002	800	50	1164.2	5821	430	480	505	385	Tr 385X6	95	224	5	90	275	487	CATS800	440	M24X3	36	3	60°	668
HCL8004		100	1164.2	11642	480	580	505	385	Tr 385X6	95	224	5	90	275	537	CATS800	440	M24X3	36	3	60°	746
HCL8006		150	1164.2	17462	530	680	505	385	Tr 385X6	95	224	5	90	275	587	CATS800	440	M24X3	36	3	60°	825
HCL8008		200	1164.2	23283	580	780	505	385	Tr 385X6	95	224	5	90	275	637	CATS800	440	M24X3	36	3	60°	904
HCL80010		250	1164.2	29104	630	880	505	385	Tr 385X6	95	224	5	90	275	687	CATS800	440	M24X3	36	3	60°	982
HCL80012		300	1164.2	34925	680	980	505	385	Tr 385X6	95	224	5	90	275	737	CATS800	440	M24X3	36	3	60°	1061
HCL10002	1000	50	1520.5	7603	484	534	570	440	Tr 440X6	110	249	5	105	300	561	CATS1000	500	M24X3	36	3	60°	959
HCL10004		100	1520.5	15205	534	634	570	440	Tr 440X6	110	249	5	105	300	611	CATS1000	500	M24X3	36	3	60°	1059
HCL10006		150	1520.5	22808	584	734	570	440	Tr 440X6	110	249	5	105	300	661	CATS1000	500	M24X3	36	3	60°	1160
HCL10008		200	1520.5	30411	634	834	570	440	Tr 440X6	110	249	5	105	300	711	CATS1000	500	M24X3	36	3	60°	1260
HCL100010		250	1520.5	38013	684	934	570	440	Tr 440X6	110	249	5	105	300	761	CATS1000	500	M24X3	36	3	60°	1360
HCL100012		300	1520.5	45616	734	1034	570	440	Tr 440X6	110	249	5	105	300	811	CATS1000	500	M24X3	36	3	60°	1460
