FSH14M, 14 Ton, Hydraulic Flange Spreader Max Set, 80mm Maximum Spread

Series: FSH14M | Product Line: Industrial Tools

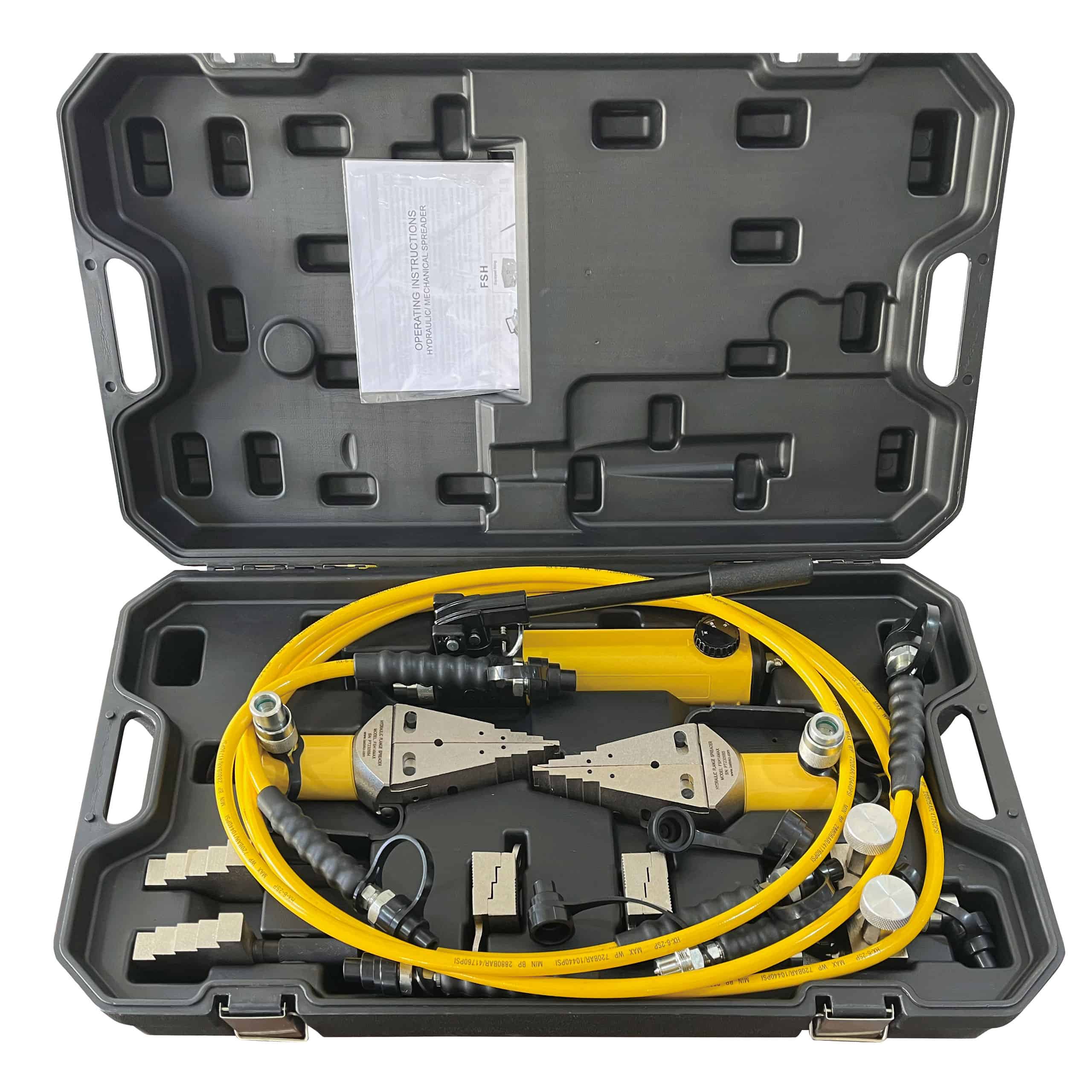

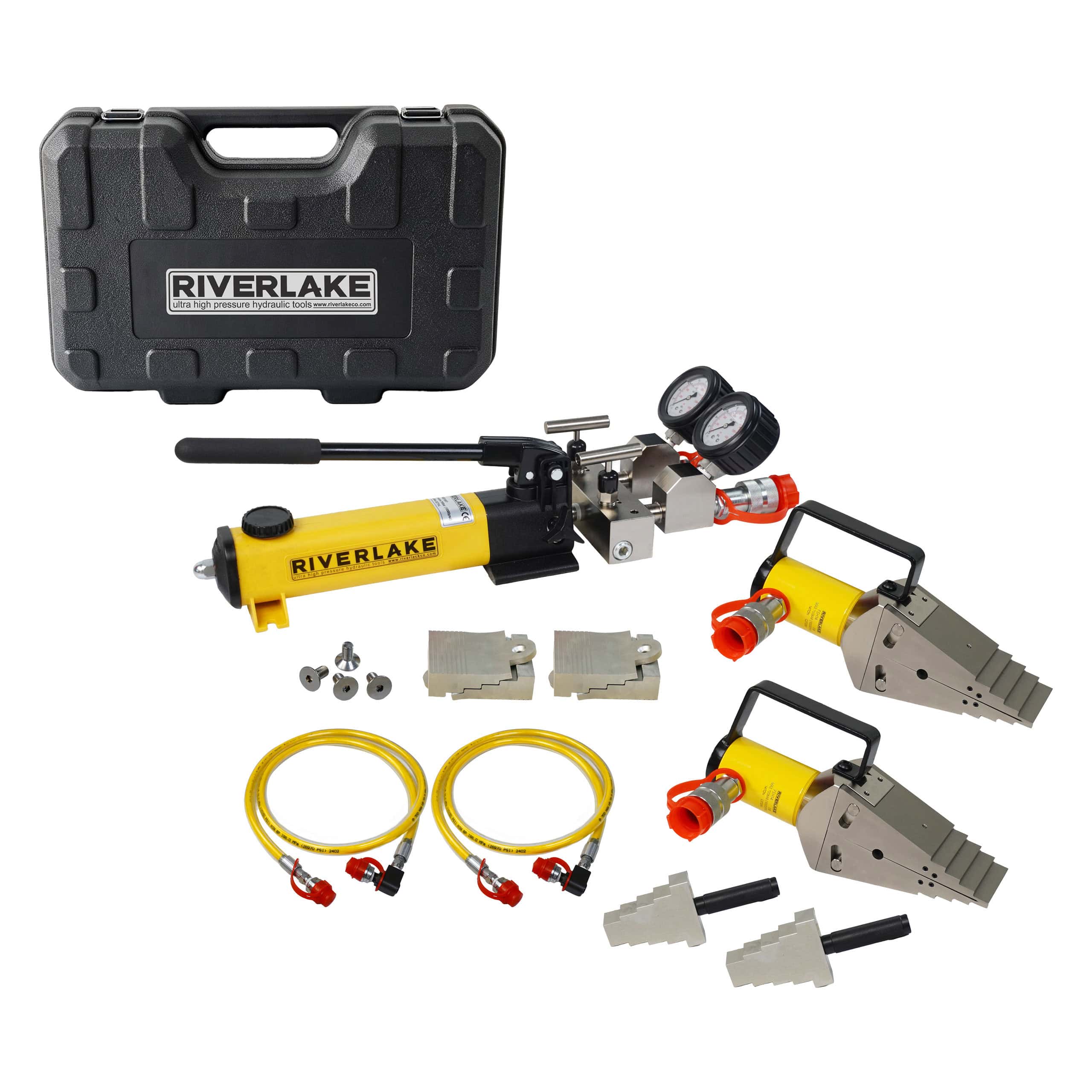

Complete Kit Contents:

• 2 x FSH14 – 14 Ton Hydraulic Flange Spreaders
  Each spreader features the unique interlocking wedge design that eliminates first‑step bending and slipping out of the joint. Requires only a 6 mm initial gap. Few moving parts ensure durability and low maintenance. Each comes with a single‑acting cylinder and an SB1 safety block for mechanical gap locking.

• 1 x P392 Manual Hand Pump
  Two‑speed, 10,000 psi (700 bar) manual pump with large oil reservoir, ergonomic handle, and built‑in safety valve for overpressure protection.

• 1 x GA45GC – 45° Angled Gauge Adaptor Assembly
  Allows convenient, easy‑reading pressure gauge positioning at a 45° angle – ideal for confined spaces.

• 1 x HSP700-1‑MM – 1 meter hydraulic hose (quick couplers both ends)
  Connects pump to the split manifold for compact, short‑run setups.

• 2 x HSP700-2‑MM – 2 meter hydraulic hoses (quick couplers both ends)
  Connect the split manifold to each FSH14 spreader, providing ample reach and flexibility.

• 1 x AM21-232 – One‑In‑Two‑Out Needle Valve Split Manifold with Quick Couplers
  Distributes hydraulic flow from the single pump to two spreaders. The needle valves allow independent control of each spreader – enabling sequential or simultaneous spreading, and fine‑tuning of force distribution between the two flange separation points.

Key Features & Benefits:

• Simultaneous or independent operation – Use one spreader or both at the same time. The needle valve manifold lets you isolate, meter, or shut off flow to each spreader individually.

• Balanced flange spreading – Ideal for larger diameter flanges where applying force at two opposite points prevents jamming, gasket damage, or uneven separation.

• Unique interlocking wedge – No bending or slip‑out, even on corroded or uneven flanges.

• Minimal access gap – Requires only 6 mm initial gap per spreader.

• Complete safety package – Each spreader includes an SB1 safety block to mechanically lock the opened gap, allowing hands‑free work between flange faces.

• Low maintenance – Simple hydraulic and mechanical design with few moving parts.

• Portable, coordinated system – All components are matched and supplied in a durable carrying case (or robust packaging) for organized transport and storage.
