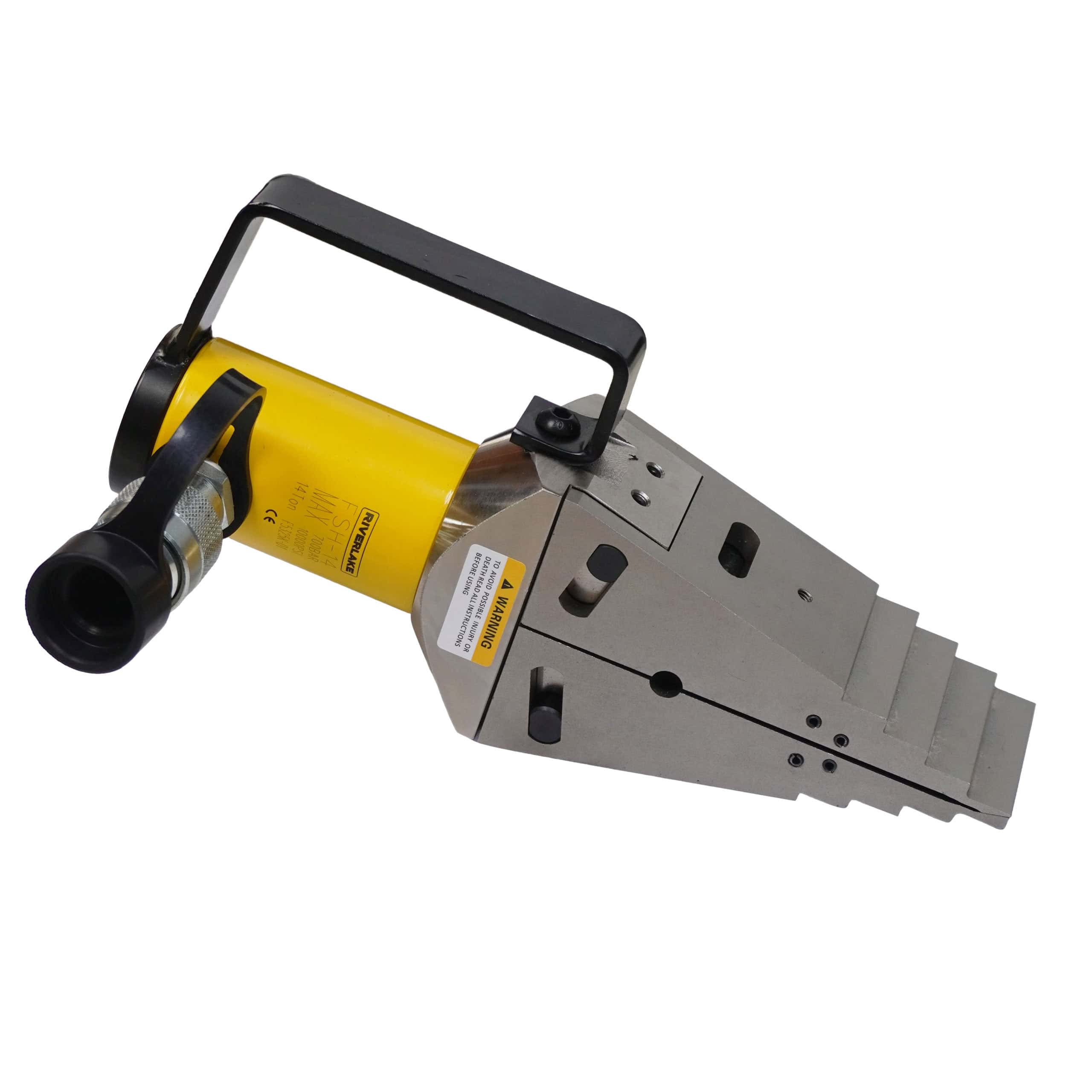

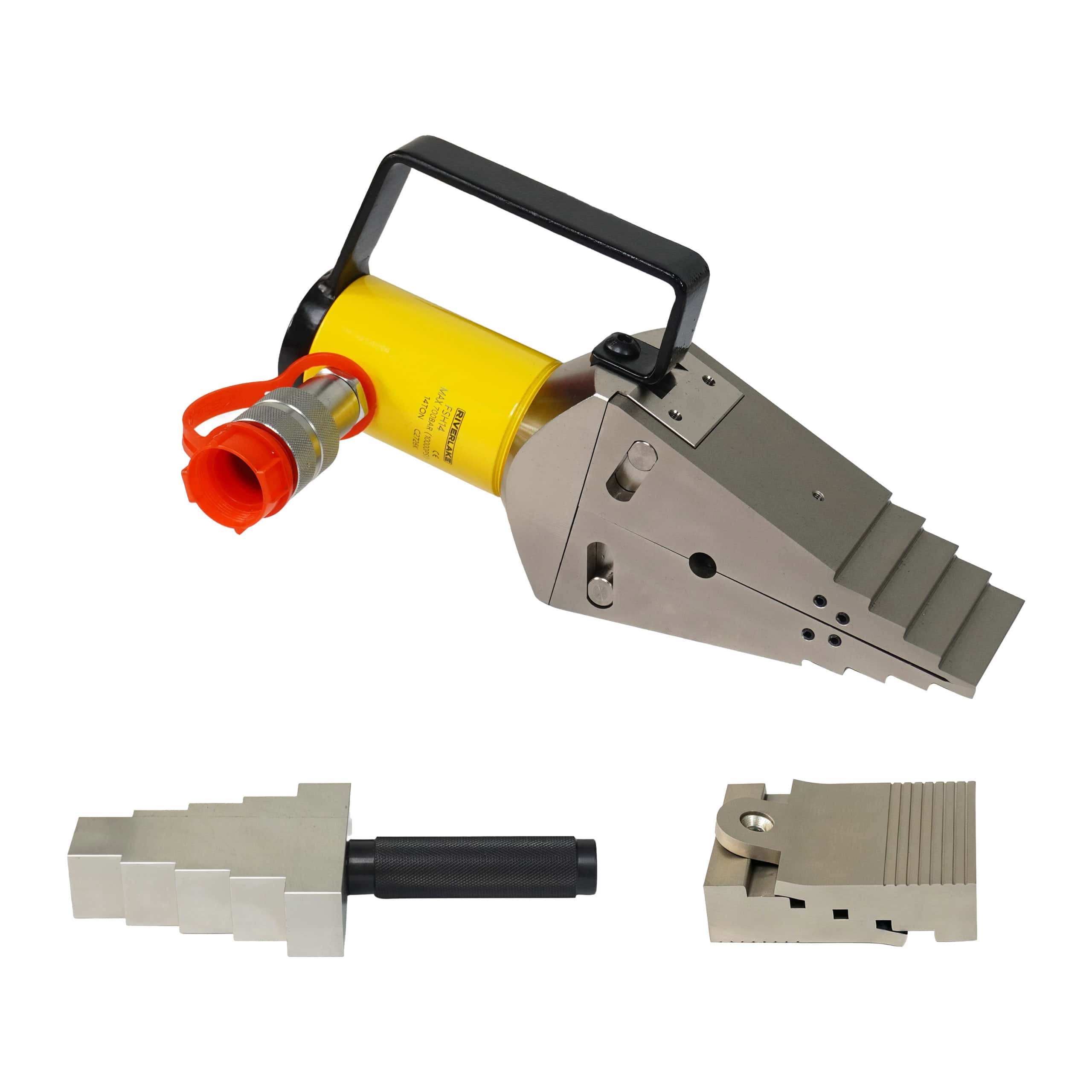

FSH14, 14 Ton, Hydraulic Flange Spreader Single Set, 80mm Maximum Spread
The RIVERLAKE FSH14 is a robust hydraulic flange spreader engineered for safe, reliable flange separation in demanding pipe maintenance applications. Its unique interlocking wedge design eliminates the risk of first‑step bending and slipping out of the joint – a common failure point in conventional spreaders – ensuring secure engagement throughout the entire spreading operation.
Description
Model: FSH14 | Product Line: Industrial Tools
-
Unique Interlocking Wedge Design: The precision‑engineered wedge geometry locks positively into the flange gap, preventing the tool from bending or dislodging under load. This provides exceptional stability and operator confidence, even on corroded or uneven flange faces.
-
Minimal Access Gap Required: With a required initial gap of only 6 mm, the FSH14 can be deployed on flanges that are tightly compressed or partially seized – eliminating time‑consuming preparatory prying or wedging.
-
Durable, Low‑Maintenance Construction: The tool contains few moving parts, which significantly reduces wear points and extends service life. Routine maintenance is minimal, making the FSH14 a cost‑effective choice for high‑use environments.
-

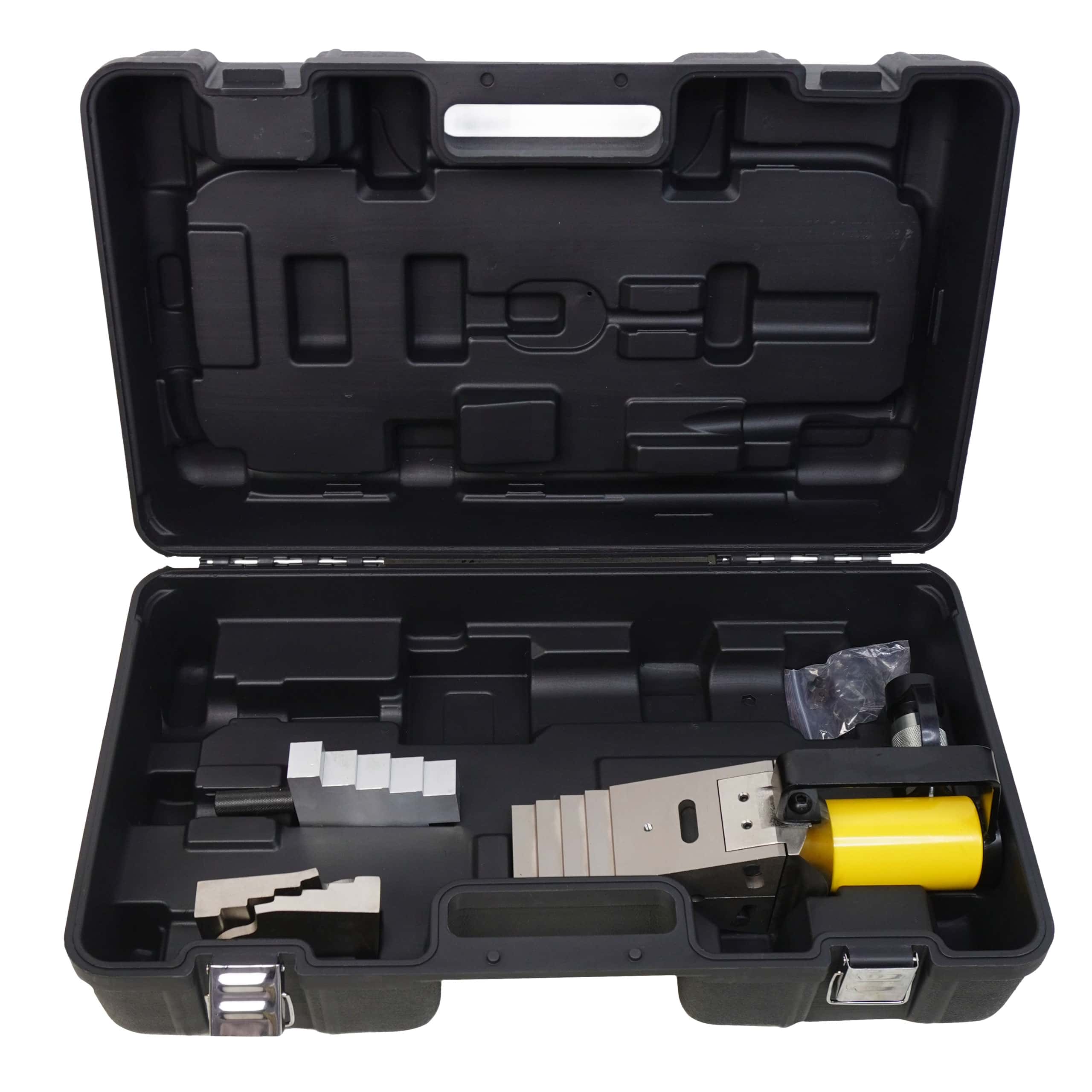

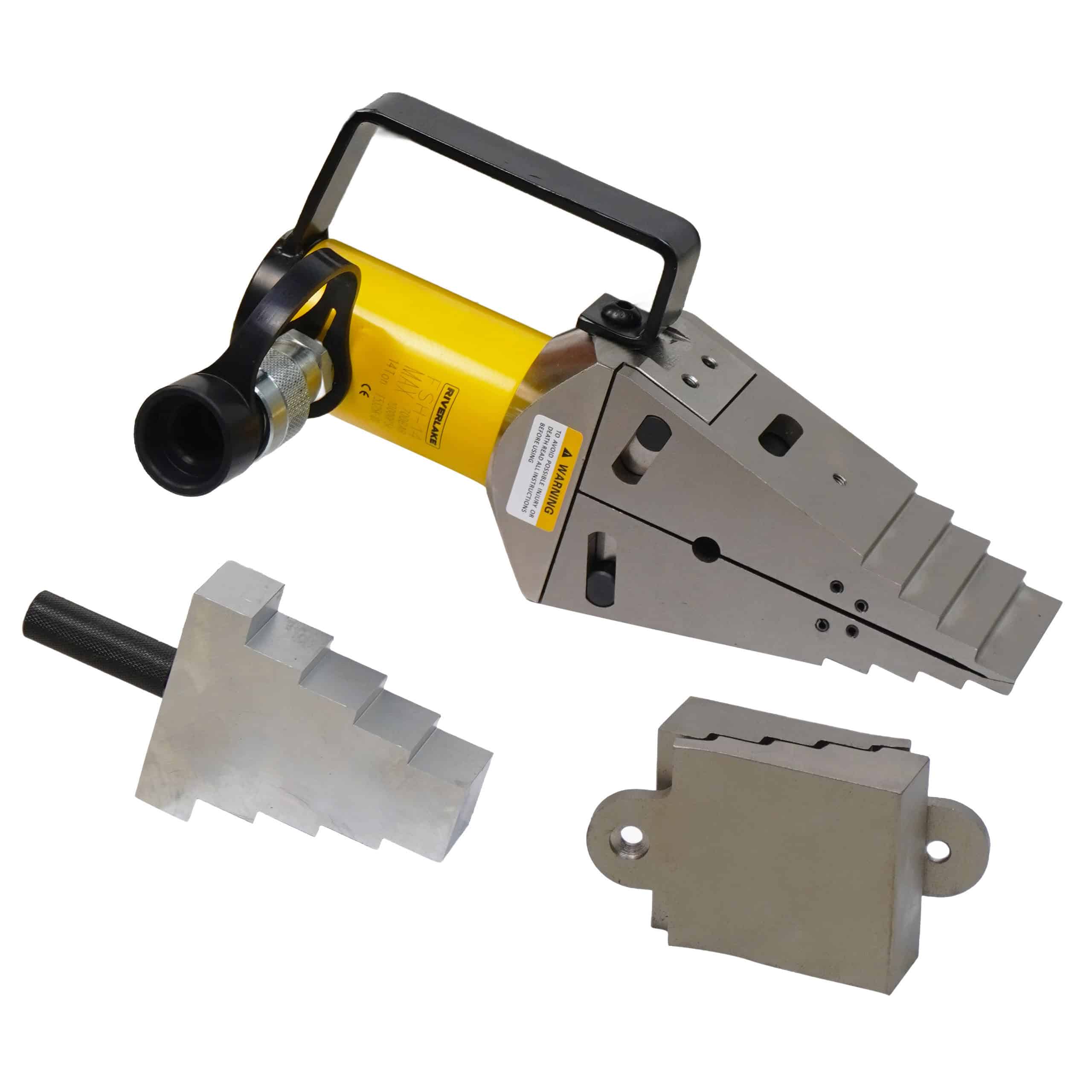

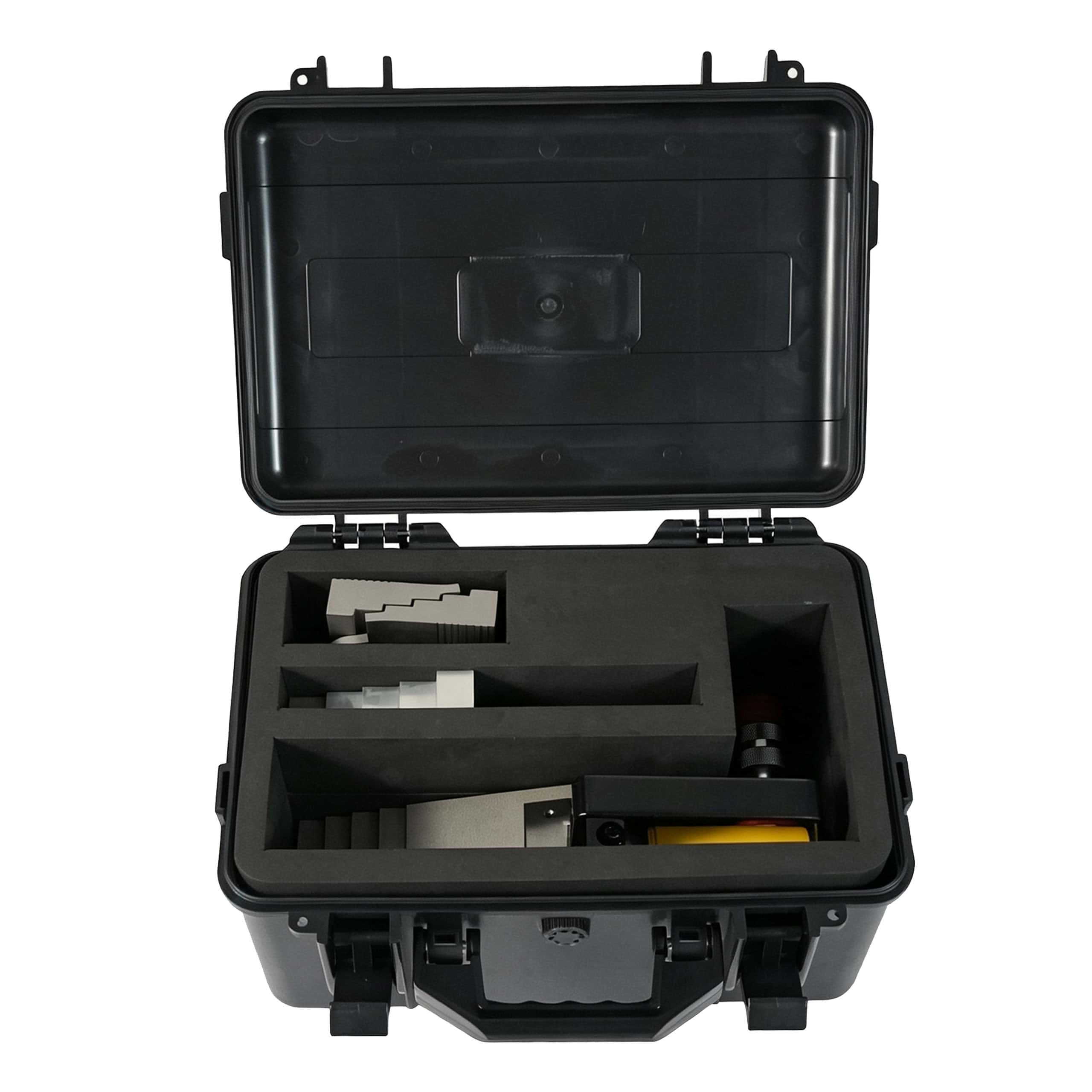

Complete Set with Safety Block: The FSH14 is supplied complete with a single‑acting hydraulic cylinder and an SB1 safety block. The safety block mechanically locks the opened flange gap, allowing technicians to work safely between flange faces without continuous hydraulic pressure.
Specifications
| Model | FSH14 |
| Maximum Operating Pressure (bar) | 700 |
| Maximum Spreading Force(Ton) | 14 |
| Tip Clearance(mm) | 6 |
| Maximum Spread(mm) | 80 |
| Oil Capacity(cm³) | 78 |
| Tool Kit Weight(Kg) | 15 |

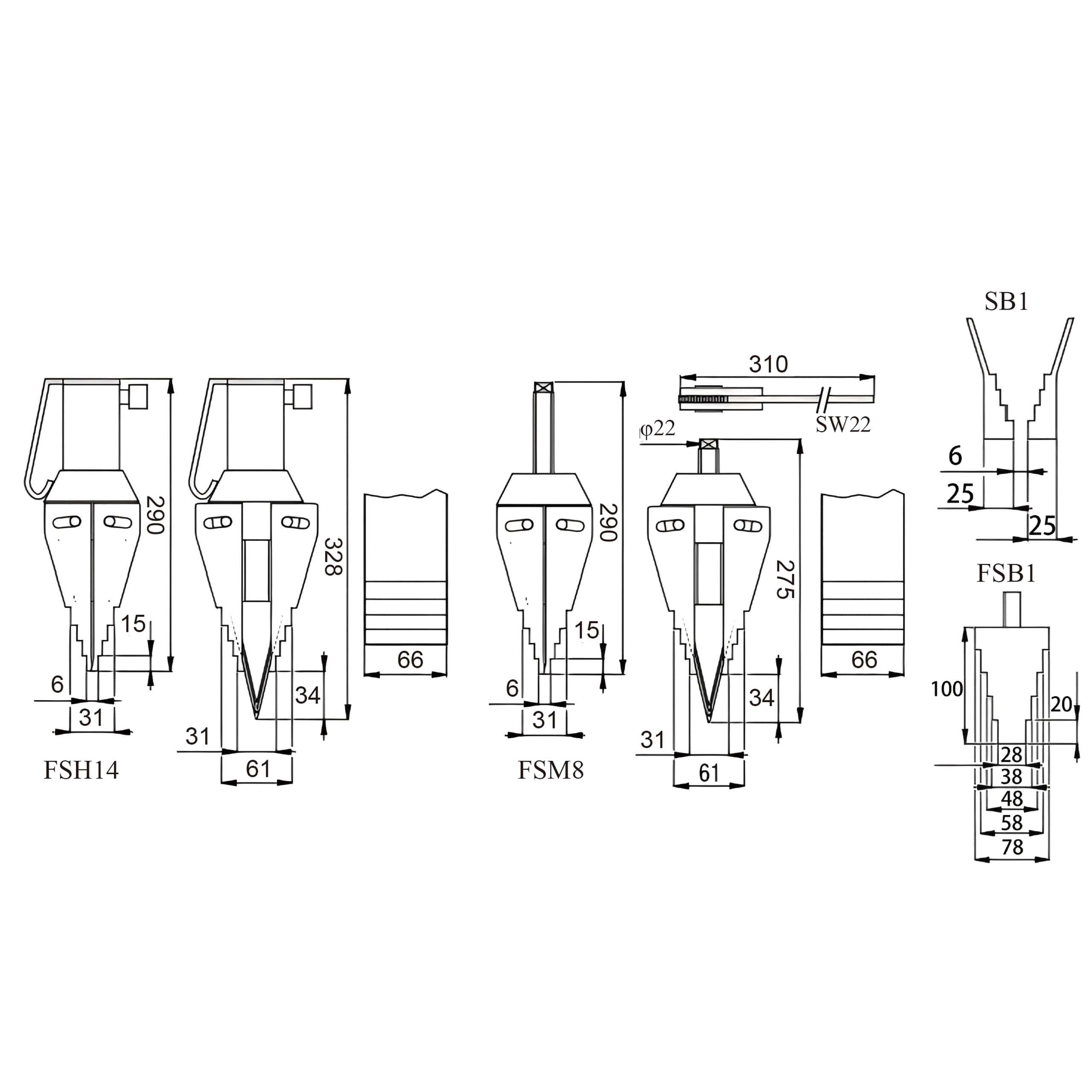

Dimensions
Drawing
Series Comparision Table
| Model | Maximum Spreading Force(Ton) | Type | Maximum Operating Pressure (bar) | Tip Clearance(mm) | Maximum Spread(mm) | Oil Capacity(cm³) | Weight(Kg) |
|---|---|---|---|---|---|---|---|
| FSH14 | 14.00 | Hydraulic | 700.00 | 6.00 | 80.00 | 78.00 | 15.00 |
| FSM8 | 8.00 | Mechanical | * | 6.00 | 80.00 | * | 14.00 |
