FA9TMSTD, 9 Ton, Integral Hydraulic Flange Alignment Tool Set

Series: FA | Product Line: Industrial Tools

Simple, Powerful Alignment: FA Series tools insert directly into flange bolt holes and apply controlled mechanical or hydraulic force to rotate, align, or twist flanges into proper position. A safety strap helps secure operation, and the tool remains stable under full load – holding alignment while bolts are installed.

Versatile & Easy to Use: The tools can be installed and operated in any position (horizontal, vertical, or overhead). Their compact, lightweight design enables easy transport and use, even in remote locations or confined work areas. No chains, pulleys, or complex rigs are needed, dramatically reducing preparation time.

Three Configurations to Match Your Needs:

• FA1TMSTD & FA4TMSTD – Mechanical Flange Alignment Tools
  Purely mechanical operation using a threaded screw mechanism. Ideal for applications where hydraulic power is unavailable or where simple, manual control is preferred. Durable, low‑maintenance, and intrinsically safe.

• FA9TESTD – Hydraulic Flange Alignment Tool with External Pump
  Supplied complete with an HP350S hand pump, hydraulic hose, and pressure gauge. The external pump allows remote operation and precise force control while keeping the tool head compact for tight spaces.

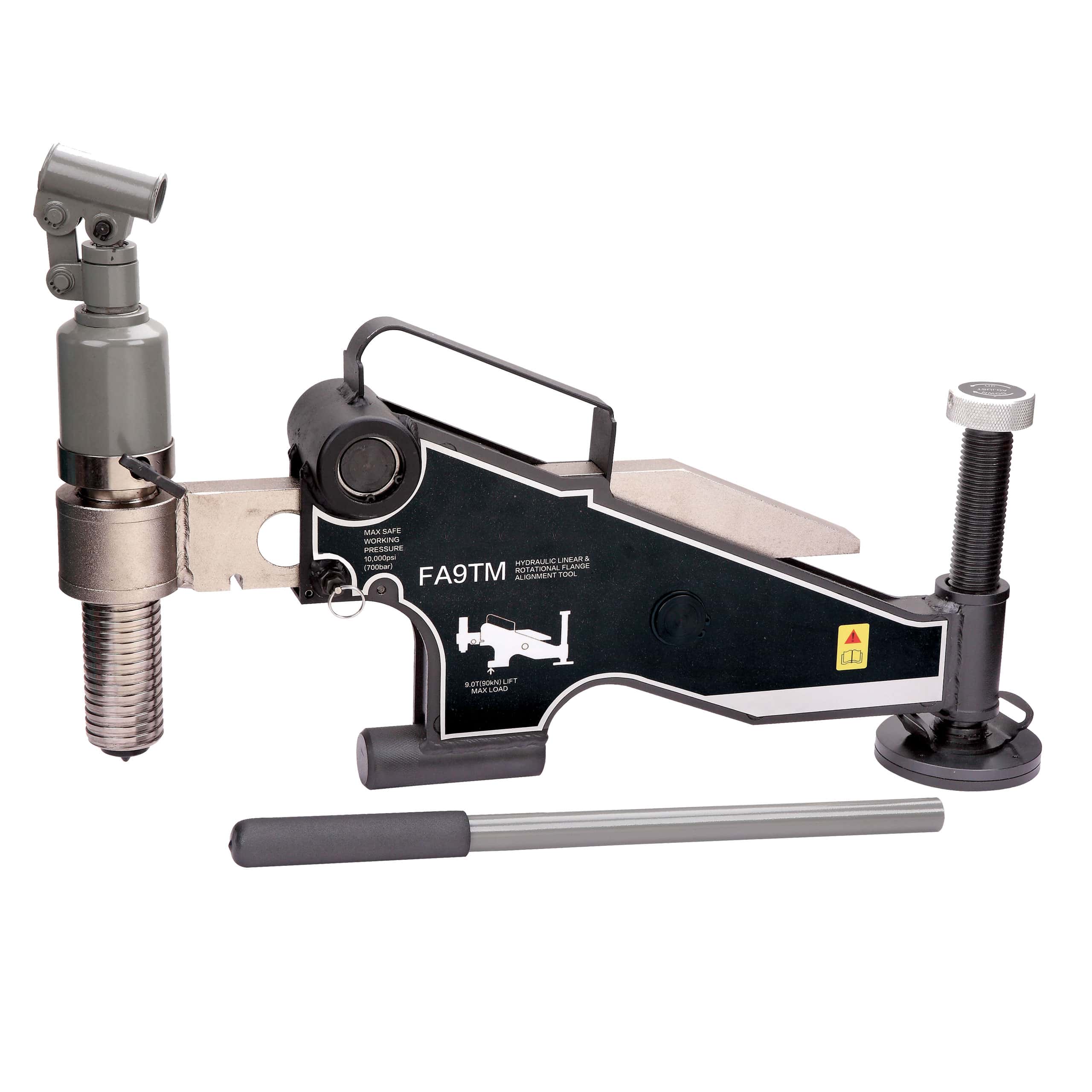

• FA9TMSTD – Integral Hydraulic Flange Alignment Tool
  Features a built‑in manual hand pump, eliminating the need for separate hoses or external power units. Self‑contained and ready to use immediately – ideal for field service, maintenance rounds, and quick deployments.

Key Features Across the Series:

• Corrects twist and rotational misalignment quickly and safely

• No external power source required (mechanical or integral hydraulic options)

• Compatible with most ANSI, API, BS, and DIN flanges

• Reduces setup time – no chains, pulleys, or rigs

• Safety strap for secure operation

• Usable in any position (horizontal, vertical, overhead)

• Stable under full load – holds alignment during bolting

• Portable, lightweight design for easy transport
