FA4TMSTD, 4 Ton, Mechanical Flange Alignment Tool Set
The RIVERLAKE FA Series provides a fast, safe, and efficient solution for correcting twist and rotational misalignment in pipe flanges – without requiring chains, pulleys, rigging, or any external power source. Designed for use on most ANSI, API, BS, and DIN flanges, these portable, lightweight tools significantly reduce setup time and enhance worker safety.
Description
Series: FA | Product Line: Industrial Tools
Simple, Powerful Alignment: FA Series tools insert directly into flange bolt holes and apply controlled mechanical or hydraulic force to rotate, align, or twist flanges into proper position. A safety strap helps secure operation, and the tool remains stable under full load – holding alignment while bolts are installed.
Versatile & Easy to Use: The tools can be installed and operated in any position (horizontal, vertical, or overhead). Their compact, lightweight design enables easy transport and use, even in remote locations or confined work areas. No chains, pulleys, or complex rigs are needed, dramatically reducing preparation time.
Three Configurations to Match Your Needs:
-
FA1TMSTD & FA4TMSTD – Mechanical Flange Alignment ToolsPurely mechanical operation using a threaded screw mechanism. Ideal for applications where hydraulic power is unavailable or where simple, manual control is preferred. Durable, low‑maintenance, and intrinsically safe.
-
FA1TMSTD Including: 1pcs FA1TM mechanical flange alignment tools,1pcs safety strap,1pcs plastic tool case
-

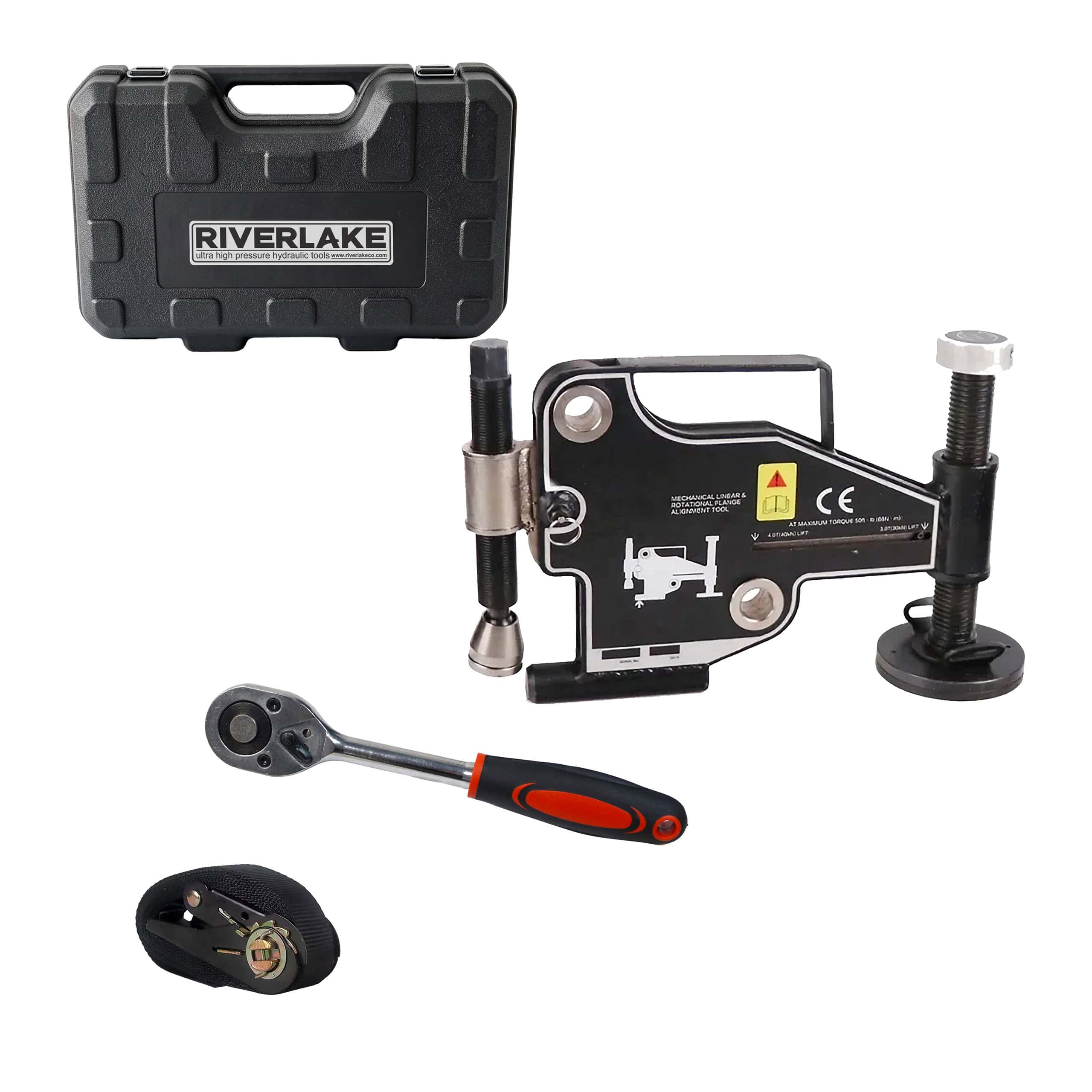

FA4TMSTD Including:1pcs FA4TM mechanical flange alignment tools,1pcs safety strap,1pcs manual torque wrench,1pcs plastic tool case
-
FA9TESTD – Hydraulic Flange Alignment Tool with External PumpSupplied complete with an P142-GC hand pump, hydraulic hose, and pressure gauge. The external pump allows remote operation and precise force control while keeping the tool head compact for tight spaces.
-
FA9TESTD Including:1pcs FA9TE hydraulic flange alignment tool,1pcs P142-GC hand pump,1pcs HSP700PC-2-MM hydraulic hose,1pcs safety strap,1pcs plastic tool case
Specifications
| Model | FA4TMSTD |
| Type | Mechanical |
| Alignment Capacity(Ton) | 4 |
| Min. Bolt Size(mm) | 24 |
| Flange Thickness(mm) | 30-133 |
| Tool Kit Weight(Kg) | 8.6 |
Series Comparision Table
| Model | Alignment Capacity(Ton) | Min. Bolt Size(mm) | Min. Bolt Size(inch) | Flange Thickness(mm) | Flange Thickness(inch) | Type | Weight (kg) |
|---|---|---|---|---|---|---|---|
| FA1TMSTD | 1 | 16 | 0.63 | 14-82 | 0.55-3.29 | Mechanical | 1.6 |
| FA4TMSTD | 4 | 24 | 0.95 | 30-133 | 1.18-5.23 | Mechanical | 8.6 |
| FA9TESTD | 9 | 35.5 | 1.4 | 93-228 | 3.66-9 | Split Hydraulic | 14.5 |
