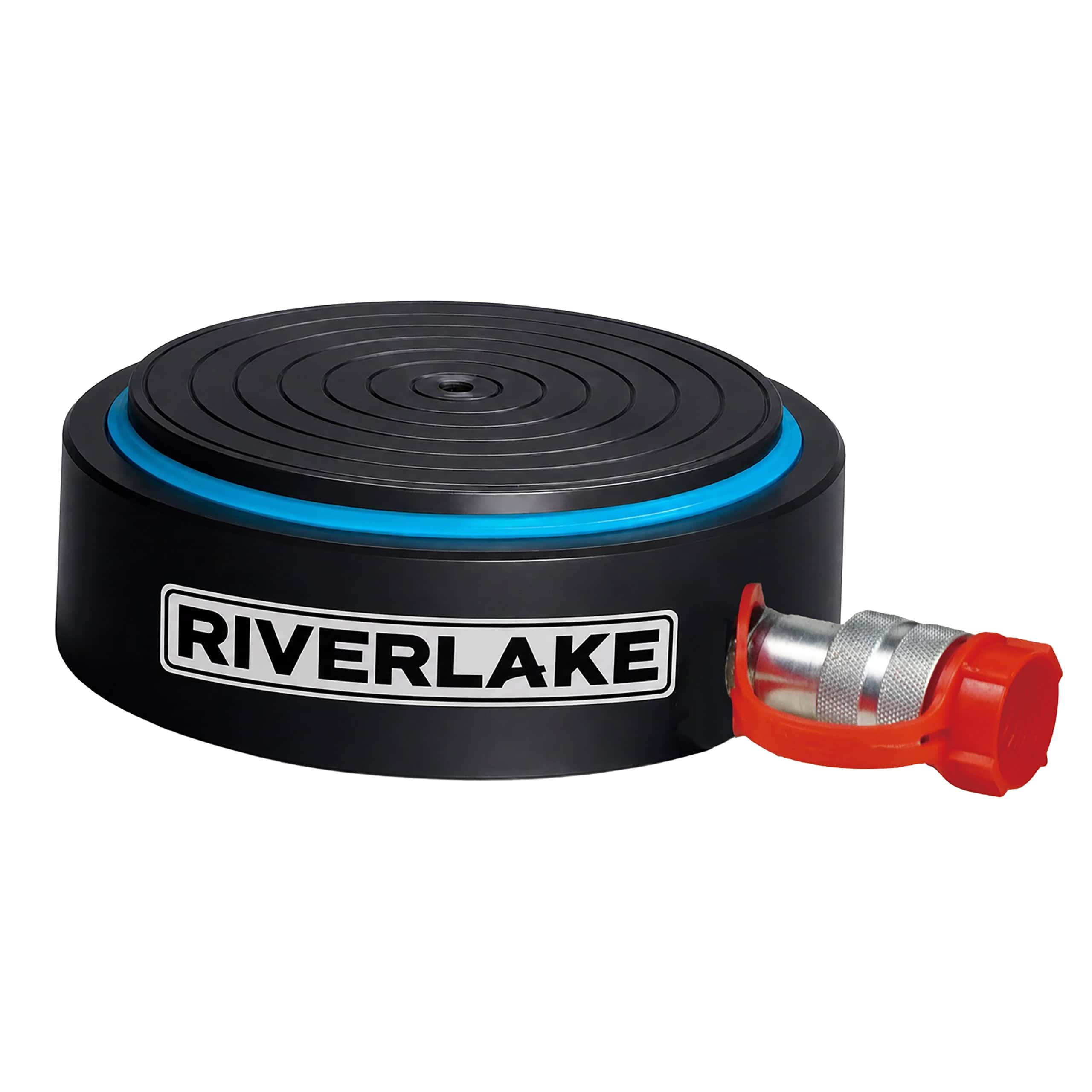

CUSP150, 150 Ton Capacity, 10mm Stroke, Big Tonnage, Ultra Flat Hydraulic Cylinder without Stop-Ring

Series: CUSP | Product Line: Industrial Tools

• Up to 4% Offset Load at Maximum Capacity
  Withstands eccentric loading up to 4% at maximum load, ensuring stable and reliable performance under demanding conditions.

• Low-Profile, High-Tonnage Ultra-Flat Design
  Features a low body height and an integrated tilting saddle cylinder, delivering powerful force in tight workspaces.

• Integrated Tilting Saddle – Up to 4°
  The integrated tilting saddle allows up to 4° of articulation, promoting uniform load distribution and reducing the risk of point loading.

• Gas Nitriding & Post-Oxidation Surface Treatment
  Provides superior corrosion resistance and enhanced resistance to offset loads, extending service life in harsh environments.

• Maximum Stroke Indicator Line
  A clear maximum stroke indicator line helps operators monitor plunger travel and avoid over-stroke.

• Hose & Coupler Configurations
  CUSP10 through CUSP75 models are supplied with an 18 cm hydraulic hose terminated with a CEJN 3/8NPT coupler, ideal for narrow-space operation. All other models are equipped with a CEJN 3/8NPT quick coupler and dust cap.

• No Stroke-Limiting Stop-Ring
  Designed without a stop-ring that limits plunger travel, allowing full use of the cylinder’s stroke within its rated capacity.
