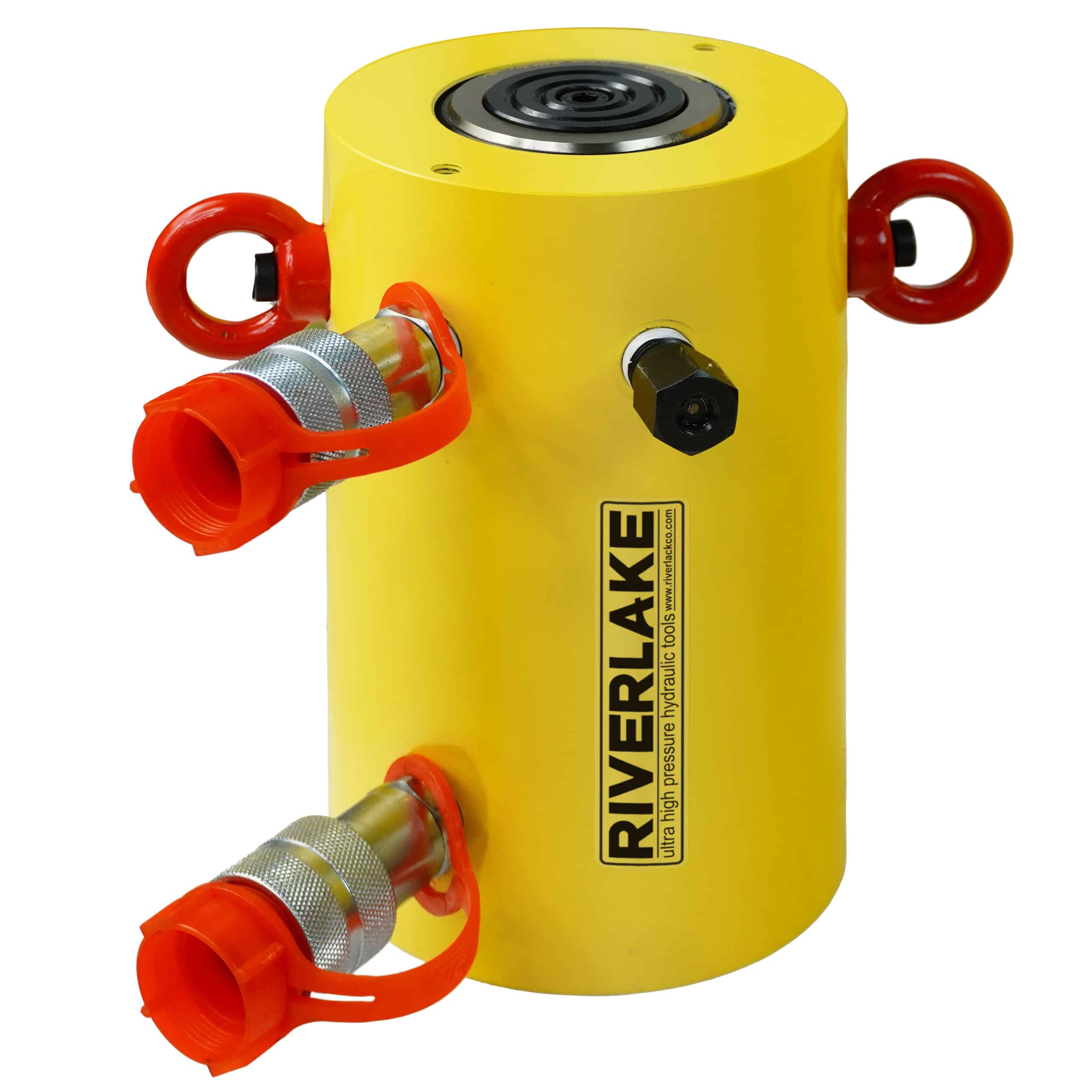

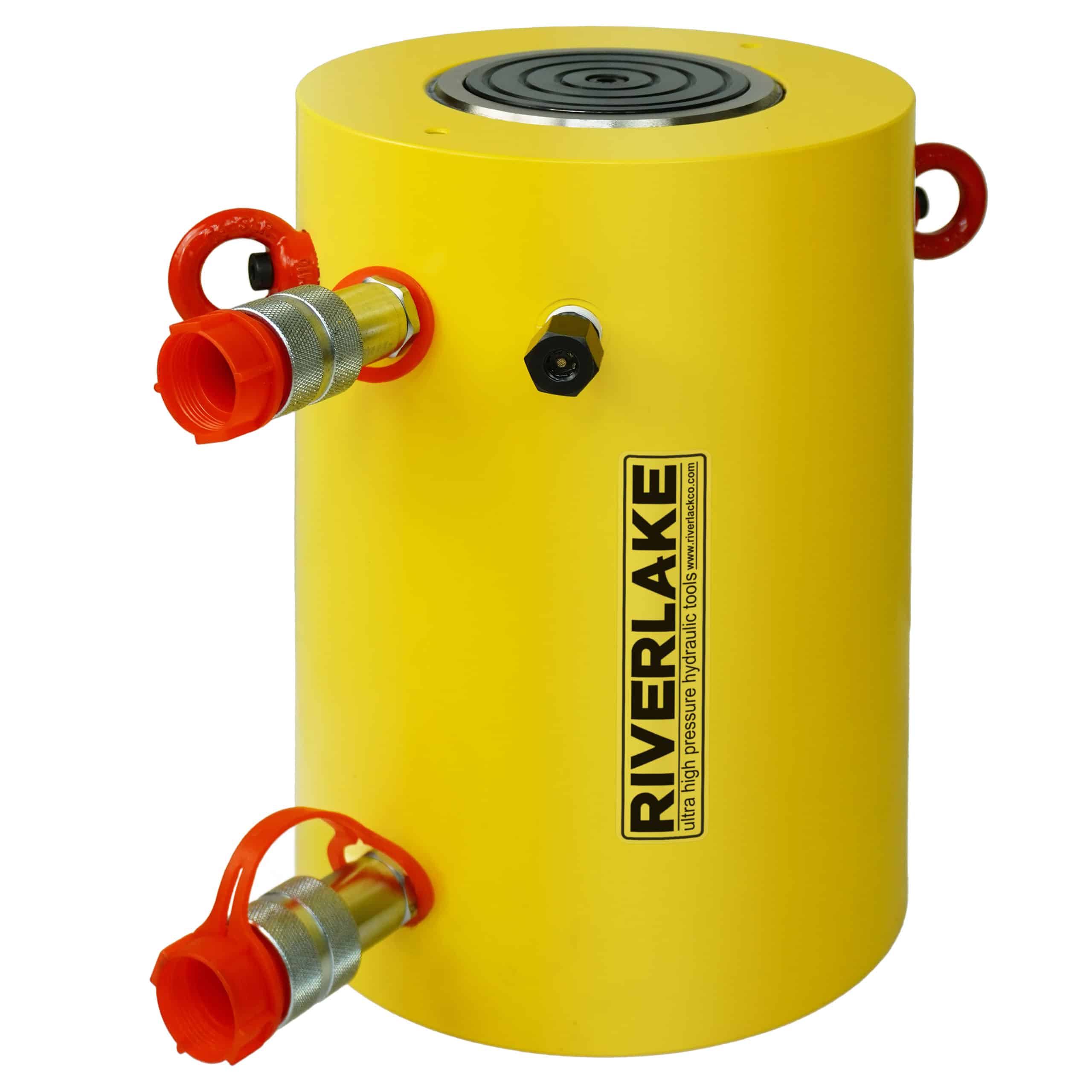

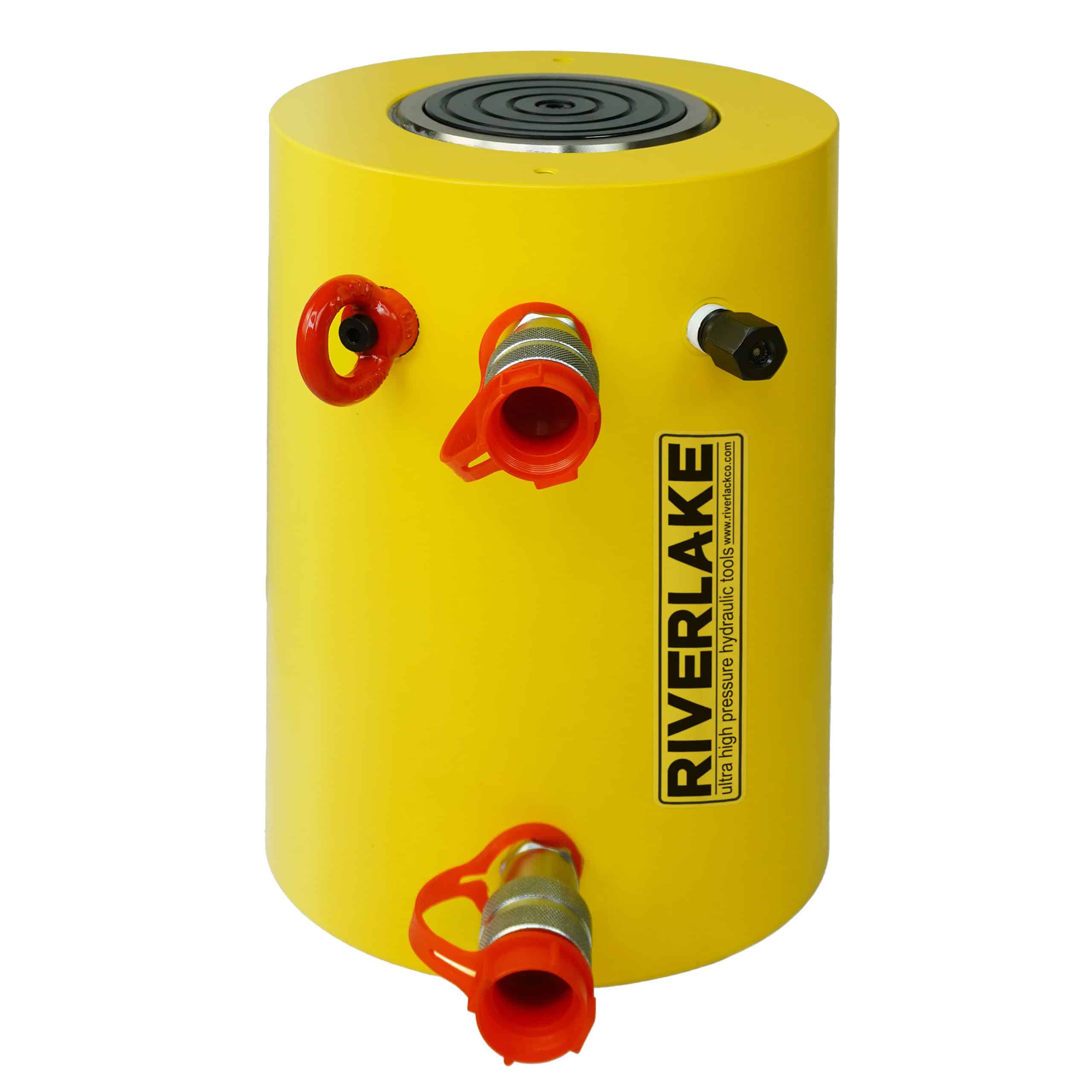

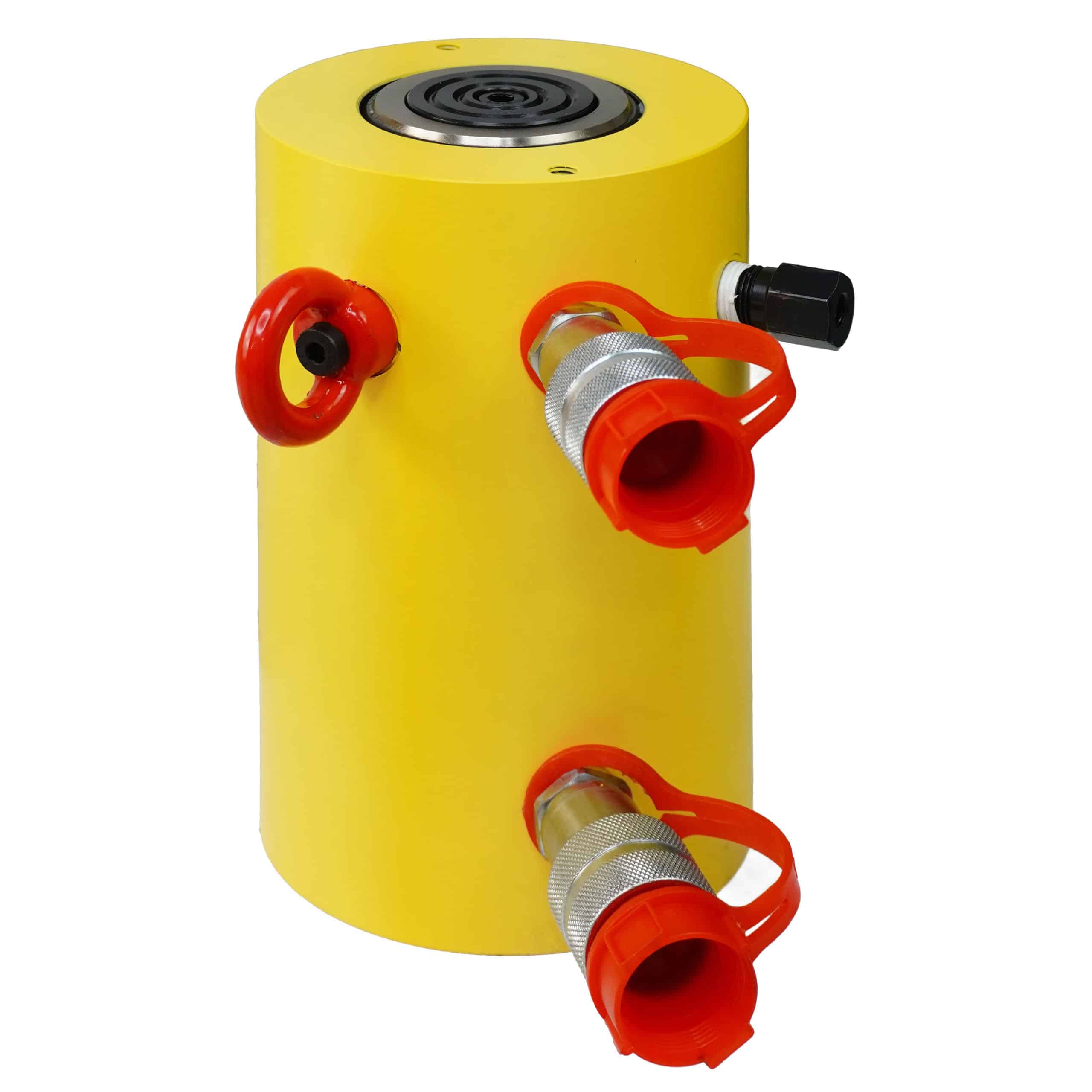

CLRG8002, 800 Ton Capacity, 50mm Stroke, High Tonnage,Double Acting Hydraulic Cylinder

The CLRG Series Big Tonnage Double-Acting Hydraulic Cylinder, manufactured by RIVERLAKE, is a premium heavy-duty hydraulic component engineered for high-load industrial applications. Built with robust construction and precision design, this cylinder delivers reliable performance, exceptional durability, and enhanced safety, making it perfectly suited for heavy lifting, pressing, positioning and other demanding hydraulic operations. It integrates a full range of high-performance design features to resist wear, prevent contamination, ensure stable operation and extend service life under harsh working conditions.

PRICE ON REQUEST

Features

Description

Series: CLRG | Product Line: Industrial Tools

Interchangeable Hardened Grooved Saddles (Standard): The cylinder comes equipped with interchangeable, hardened grooved saddles as a standard configuration, delivering superior stability and adaptability for diverse working scenarios, while enabling quick replacement to boost on-site efficiency.
Plunger Wiper Protection: A dedicated plunger wiper is fitted to effectively block dust, debris and other contaminants from entering the cylinder chamber, greatly reducing internal wear and significantly prolonging the overall service life of the hydraulic cylinder.
Integral Stopping Ring for Blow-Out Protection: The built-in integral stopping ring provides reliable piston blow-out protection, preventing component damage caused by abnormal operation and ensuring stable and safe movement of the piston.
Double-Acting Hydraulic Return: Adopting a double-acting design with hydraulic return, the cylinder achieves smooth and controlled extension and retraction, enabling efficient and precise movement without relying on external gravity, ideal for repeated heavy-duty operations.
Baked Enamel Anti-Corrosion Finish: The cylinder body features a baked enamel finish that forms a tough protective layer, effectively enhancing corrosion resistance and maintaining intact appearance and performance even in humid, harsh industrial environments.
Base Mounting Holes for Easy Fixturing: Precisely machined base mounting holes are designed for quick and secure fixturing, simplifying installation and positioning, and ensuring stable mounting for heavy-load operation.
Built-In Safety Valve for Over-Pressurization Protection: A safety valve is installed on the retract side of the cylinder, which actively prevents equipment damage caused by accidental over-pressurization, adding a strong safety barrier for daily operation.
Hardened & Chromed Piston: The piston is hardened and surface-chromed, which sharply reduces internal friction and wear, while further improving corrosion resistance, keeping the cylinder running smoothly for a long time.
Hardened Alloy Steel Guide Ring: The hardened alloy steel guide ring eliminates over-travel risks, provides stable lateral support, and effectively reduces wear caused by off-center loads, protecting core components from premature damage.
High-Strength Composite Bearing: Equipped with a high-strength composite bearing, it delivers reliable support for off-center loads without scratching or damaging the inner cylinder walls, maintaining stable performance even under eccentric loading conditions.

Specifications

Maximum Operating Pressure (bar)	700
Capacity Class (tonnage)	800
Stroke (mm)	50
Collapsed Height(mm)	484
Extended Height(mm)	534
Return Type	Double-Acting, Hydraulic Return
Cylinder Effective Area Advance (cm²)	1176.3
Cylinder Effective Area Retract (cm²)	387
Oil Capacity Advance (cm³)	5881
Oil Capacity Retract (cm³)	1935
Surface Treatment	Baked enamel finish
Coupler	CEJN 3/8NPT-18
Weight (kg)	741

Dimensions

Collapsed Height/mm(A)	484
Extended Height/mm(B)	534
Outside Dia/mm(D)	505
Cylinder Bore Dia/mm(E)	387
Plunger Dia/mm(F)	317
Base To Advance Port/mm(H)	149
Top To Retract Port/mm(I)	135
Saddle Dia/mm(J)	297
Saddle Protri. From Plgr./mm(K)	3
Depth of Plunger Hole/mm(L)	27
Saddle Dia/mm(J1)	287
Saddle Height/mm(K1)	75

Series Comparison

Model Number	Capacity/Ton	Stroke/mm	Push Max Cylinder Capacity/KN	Pull Max Cylinder Capacity/KN	Push Cylinder Effective Area/cm2	Pull Cylinder Effective Area/cm2	Push Oil Capacity/cm3	Pull Oil Capacity/cm3	Collapsed Height/mm(A)	Extended Height/mm(B)	Outside Dia/mm(D)	Cylinder Bore Dia/mm(E)	Plunger Dia/mm(F)	Base To Advance Port/mm(H)	Top To Retract Port/mm(I)	Saddle Dia/mm(J)	Saddle Protri. From Page./mm(K)	Depth of Plunger Hole/mm(L)	Saddle Dia/mm(J1)	Saddle Height/mm(K1)	Saddle Model	Weight/Kg
CLRG-502	50	50	539	269	77	38.5	385	192	162	212	130	99	70	52	33	50	1	19	50	24	CATG-50	17
CLRG-504	50	100	539	269	77	38.5	770	385	212	312	130	99	70	52	33	50	1	19	50	24	CATG-50	20
CLRG-506	50	150	539	269	77	38.5	1155	577	262	412	130	99	70	52	33	50	1	19	50	24	CATG-50	23
CLRG-508	50	200	539	269	77	38.5	1540	770	312	512	130	99	70	52	33	50	1	19	50	24	CATG-50	27
CLRG-5010	50	250	539	269	77	38.5	1924	962	362	612	130	99	70	52	33	50	1	19	50	24	CATG-50	31
CLRG-5012	50	300	539	269	77	38.5	2309	1155	412	712	130	99	70	52	33	50	1	19	50	24	CATG-50	34
CLRG-1002	100	50	929	433	132.7	61.9	664	309	179	229	165	130	95	54	48	75	1	19	73	29	CATG-100	29
CLRG-1004	100	100	929	433	132.7	61.9	1327	619	229	329	165	130	95	54	48	75	1	19	73	29	CATG-100	34
CLRG-1006	100	150	929	433	132.7	61.9	1991	928	279	429	165	130	95	54	48	75	1	19	73	29	CATG-100	40
CLRG-1008	100	200	929	433	132.7	61.9	2655	1237	329	529	165	130	95	54	48	75	1	19	73	29	CATG-100	46
CLRG-10010	100	250	929	433	132.7	61.9	3318	1546	379	629	165	130	95	54	48	75	1	19	73	29	CATG-100	52
CLRG-10012	100	300	929	433	132.7	61.9	3982	1856	429	729	165	130	95	54	48	75	1	19	73	29	CATG-100	58
CLRG-1502	150	50	1390	675	198.6	96.5	993	482	196	246	205	159	114	61	56	94	1	19	91	31	CATG-150	39
CLRG-1504	150	100	1390	675	198.6	96.5	1986	965	246	346	205	159	114	61	56	94	1	19	91	31	CATG-150	52
CLRG-1506	150	150	1390	675	198.6	96.5	2978	1447	296	446	205	159	114	61	56	94	1	19	91	31	CATG-150	65
CLRG-1508	150	200	1390	675	198.6	96.5	3971	1930	346	546	205	159	114	61	56	94	1	19	91	31	CATG-150	78
CLRG-15010	150	250	1390	675	198.6	96.5	4964	2412	396	646	205	159	114	61	56	94	1	19	91	31	CATG-150	92
CLRG-15012	150	300	1390	675	198.6	96.5	5957	2895	446	746	205	159	114	61	56	94	1	19	91	31	CATG-150	105
CLRG-2002	200	50	1861	889	265.9	127	1330	635	212	262	235	184	133	67	66	113	1	24	118	35	CATG-200	55
CLRG-2006	200	150	1861	889	265.9	127	3989	1905	312	462	235	184	133	67	66	113	1	24	118	35	CATG-200	91
CLRG-20012	200	300	1861	889	265.9	127	7977	3809	462	762	235	184	133	67	66	113	1	24	118	35	CATG-200	146
CLRG-2502	250	50	2565	1068	366.4	152.6	1832	763	235	285	275	216	165	73	78	145	1	24	144	46	CATG-250	89
CLRG-2506	250	150	2565	1068	366.4	152.6	5497	2289	335	485	275	216	165	73	78	145	1	24	144	46	CATG-250	136
CLRG-25012	250	300	2565	1068	366.4	152.6	10993	4578	485	785	275	216	165	73	78	145	1	24	144	46	CATG-250	207
CLRG-3002	300	50	3193	1060	456.2	151.4	2281	757	322	372	310	241	197	101	75	177	1	19	160	62	CATG-300	184
CLRG-3006	300	150	3193	1060	456.2	151.4	6843	2270	422	572	310	241	197	101	75	177	1	19	160	62	CATG-300	232
CLRG-30012	300	300	3193	1060	456.2	151.4	13685	4541	572	872	310	241	197	101	75	177	1	19	160	62	CATG-300	303
CLRG-4002	400	50	3919	1354	559.9	193.5	2800	967	374	424	350	267	216	114	105	196	3	27	193	51	CATG-400	270
CLRG-4006	400	150	3919	1354	559.9	193.5	8399	2902	474	624	350	267	216	114	105	196	3	27	193	51	CATG-400	330
CLRG-40012	400	300	3919	1354	559.9	193.5	16797	5804	624	924	350	267	216	114	105	196	3	27	193	51	CATG-400	421
CLRG-5002	500	50	5114	1733	730.6	247.6	3653	1238	419	469	400	305	248	114	135	228	3	27	228	63	CATG-500	401
CLRG-5006	500	150	5114	1733	730.6	247.6	10959	3713	519	669	400	305	248	114	135	228	3	27	228	63	CATG-500	480
CLRG-50012	500	300	5114	1733	730.6	247.6	21918	7427	669	969	400	305	248	114	135	228	3	27	228	63	CATG-500	599
CLRG-6002	600	50	5987	2068	855.3	295.4	4276	1477	429	479	430	330	267	114	135	247	3	27	241	76	CATG-600	474
CLRG-6006	600	150	5987	2068	855.3	295.4	12829	4431	529	679	430	330	267	114	135	247	3	27	241	76	CATG-600	565
CLRG-60012	600	300	5987	2068	855.3	295.4	25659	8862	679	979	430	330	267	114	135	247	3	27	241	76	CATG-600	701
CLRG-8002	800	50	8234	2709	1176.3	387	5881	1935	484	534	505	387	317	149	135	297	3	27	287	75	CATG-800	741
CLRG-8006	800	150	8234	2709	1176.3	387	17644	5806	584	734	505	387	317	149	135	297	3	27	287	75	CATG-800	868
CLRG-80012	800	300	8234	2709	1176.3	387	35288	11611	734	1034	505	387	317	149	135	297	3	27	287	75	CATG-800	1058
CLRG-10002	1000	50	10260	3792	3792	541.7	7329	2709	564	614	560	432	343	174	170	323	3	27	311	93	CATG-1000	1062
CLRG-10006	1000	150	10260	3792	3792	541.7	21986	8126	664	814	560	432	343	174	170	323	3	27	311	93	CATG-1000	1213
CLRG-100012	1000	300	10260	3792	3792	541.7	43972	16252	814	1114	560	432	343	174	170	323	3	27	311	93	CATG-1000	1439
