BRC106, 10 Ton Capacity, 151mm Stroke, Single Acting,Spring Retraction, Pull Hydraulic Cylinder
The RIVERLAKE CLL Series delivers reliable load holding and lifting performance in a robust single acting design. Engineered as single acting, load retraction lock nut cylinders, this series combines mechanical load security with advanced surface treatment technology to provide exceptional durability and safety across a wide range of heavy lifting applications—from bridge construction and structural jacking to industrial maintenance and heavy equipment positioning.
PRICE ON REQUEST
Features
Description
Series: BRP/BRC | Product Line: Industrial Tools
-
High-Strength Alloy Steel ConstructionManufactured from premium high-strength alloy steel, the BRP/BRC Series ensures excellent structural integrity and durability under heavy pulling loads, providing long-term reliability in the most demanding work conditions.
-
Baked Paint FinishThe overall baked paint treatment not only enhances the cylinder’s visual recognizability but also significantly improves corrosion resistance, making the units suitable for use in harsh or outdoor environments.
-
CEJN Quick Couplers with Dust CapsAll units are equipped with genuine CEJN quick couplers and protective dust caps, enabling fast, tool-free hydraulic connections while preventing contamination ingress during transport or storage.
-
High-Grade Polyurethane SealsAdvanced polyurethane sealing systems provide exceptional sealing performance, outstanding wear resistance, and a long operational lifespan, minimizing oil leaks and reducing maintenance frequency.
-
Industrial-Grade Dust SealsIntegrated industrial-grade dust seals effectively prevent dirt, debris, and moisture from entering the cylinder assembly, greatly reducing internal contamination and extending the overall service life of the hydraulic cylinder.
-
Single-Acting, Spring Return DesignThe single-acting spring return mechanism allows the cylinder to extend (pull) under hydraulic pressure and automatically retract via internal spring force when pressure is released, offering safe, predictable, and energy-efficient operation.
Specifications
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Capacity Class (tonnage) | 10 |
| Stroke (mm) | 151 |
| Collapsed Height(mm) | 289 |
| Extended Height(mm) | 440 |
| Return Type | Single-Acting,Spring Retraction |
| Cylinder Effective Area (cm2) | 15 |
| Oil Capacity (cm3) | 228 |
| Surface Treatment | Baked Painting |
| Coupler | CEJN 3/8NPT-18 |
| Weight (kg) | 9.5 |
Dimensions
Dimensions
| Collapsed Height/mm(A) | 289 |
| Extended Height/mm(B) | 440 |
| Outside Dia/mm(D) | 85 |
| Cylinder Bore Dia/mm(E) | 54 |
| Plunger Dia/mm(F) | 31 |
| Distance From Top To Oil Port/mm(H) | 39 |
| Oil Port Thread(NPT) | * |
| Plunger Thread Depth/mm(P) | 25 |
| External Plunger Thread(Q) | M30X2 |
Series Comparison
Series Comparison
| Model Number | Capacity/Ton(kN) | Stroke/mm | Cylinder Effective Area/cm2 | Oil Capacity/cm3 | Collapsed Height/mm(A) | Extended Height/mm(B) | Outside Dia/mm(D) | Cylinder Bore Dia/mm(E) | Plunger Dia/mm(F) | Top To Advance Port/mm(H) | Oil Port Thread NPT(J) | Plunger Thread Length/mm(P) | External Plunger Thread(Q) | Weight/Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BRC25 | 2.5(24) | 127 | 3.5 | 45 | 264 | 391 | 48 | 28 | 19 | 45 | 3/4”-14 | 28 | 1 1/16”-24 | 1.8 |
| BRC46 | 5(51) | 140 | 7.3 | 101 | 301 | 441 | 57 | 42 | 30 | 42 | 1 1/4”-11 1/2” | 32 | 1 3/16”-16 | 4.5 |
| BRC106 | 10((105) | 151 | 15 | 228 | 289 | 440 | 85 | 54 | 31 | 39 | * | 25 | M30X2 | 9.5 |
| Model Number | Capacity/Ton(kN) | Stroke/mm | Cylinder Effective Area/cm2 | Oil Capacity/cm3 | Collapsed Height/mm(A) | Extended Height/mm(B) | Outside Dia/mm(D) | Cylinder Bore Dia/mm(E) | Link Height/mm(J) | Link Opening/mm(L) | Link Thickness/mm(M) | Link Width/mm(N) | Slot to Link End/mm(T) | Weight/Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

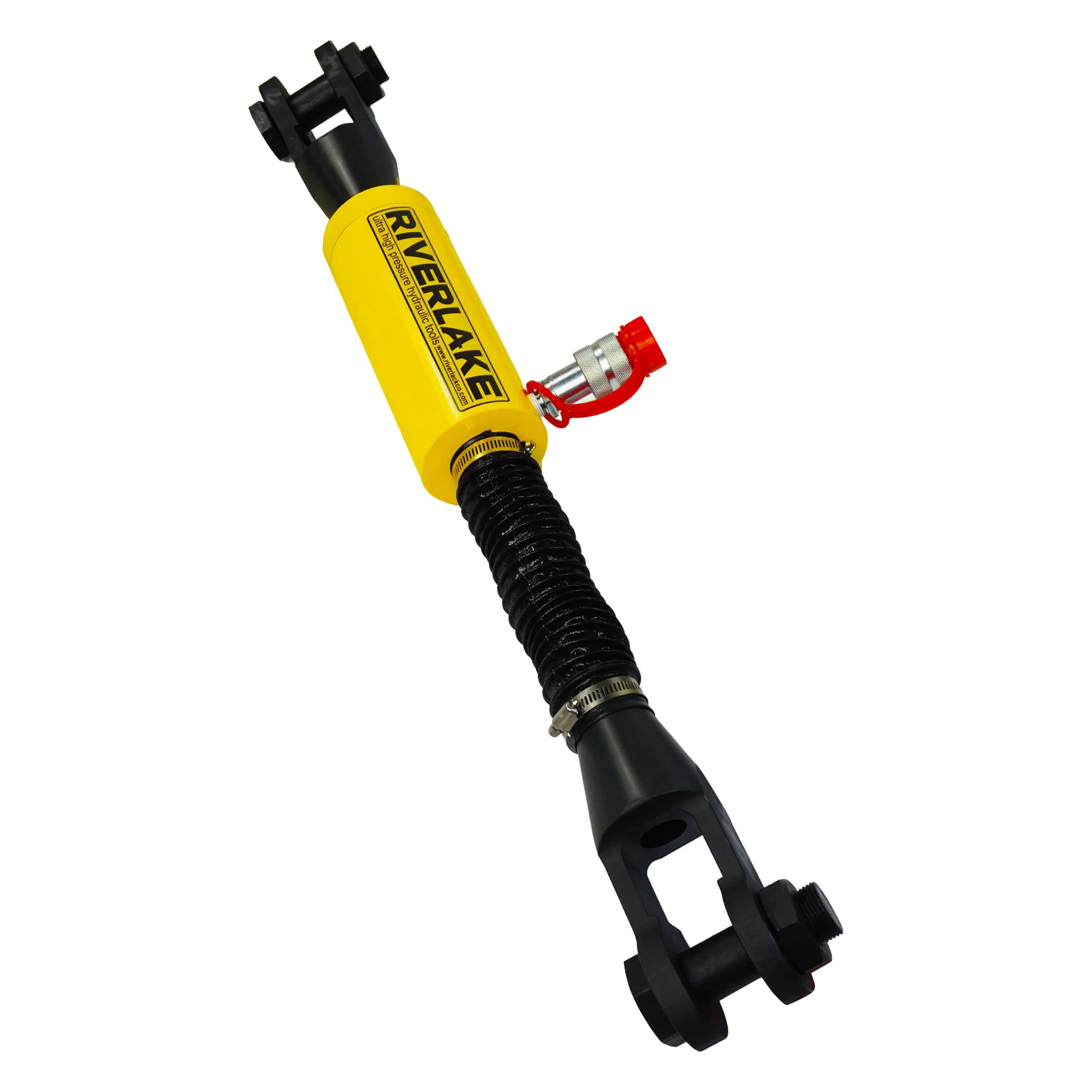

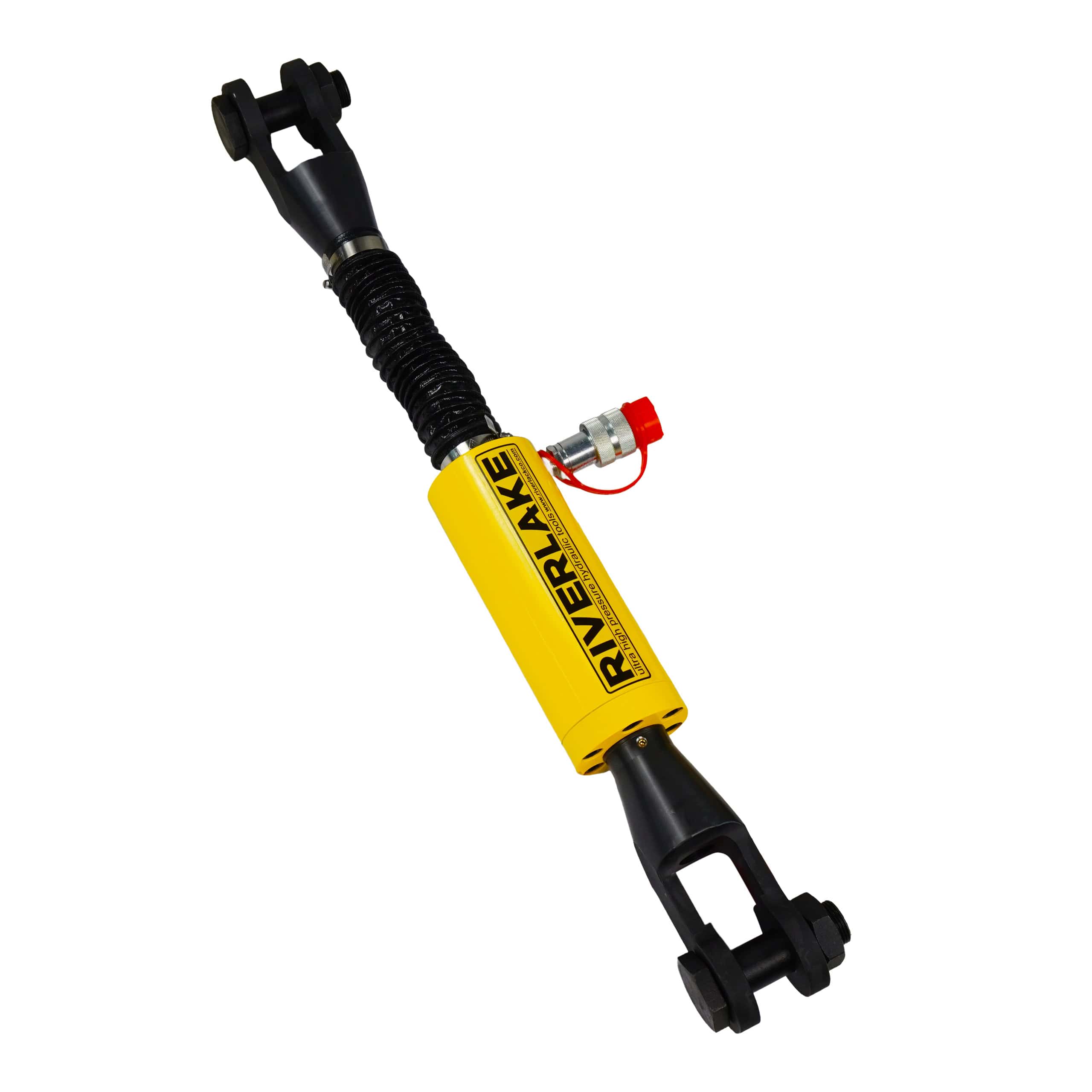

| BRP106C | 10(110) | 150 | 15.8 | 238 | 601 | 751 | 85 | 54.1 | 105 | 87 | 30 | 35 | 32 | 15.3 |

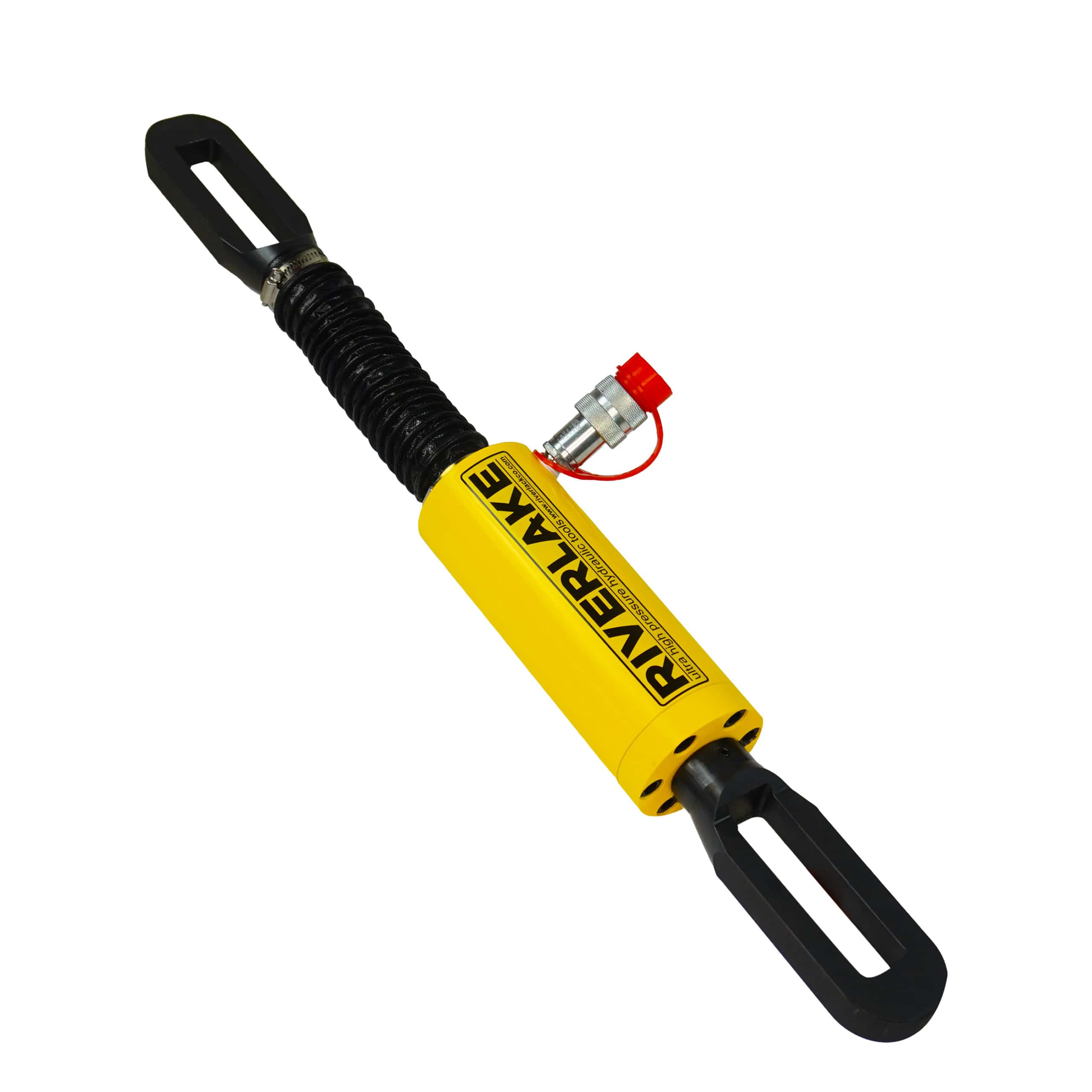

| BRP106L | 10(110) | 150 | 15.8 | 238 | 573 | 723 | 85 | 54.1 | 64 | 119 | 22 | 30 | 32 | 13.3 |
| BRP306 | 30(325) | 154 | 46.4 | 715 | 1110 | 1264 | 137 | 88.9 | 114 | 155 | 35 | 39 | 55 | 63.1 |
| BRP606 | 50(506) | 153 | 72.1 | 1096 | 718 | 871 | 140 | 110.1 | 130 | 151 | 40 | 48 | 65 | 58.3 |
