Introduction
In multi-cylinder hydraulic systems—from industrial presses to aerospace actuators—synchronization isn’t optional; it’s mission-critical. When cylinders fall out of sync, consequences include skewed loads, accelerated component wear, and catastrophic system failure. Yet achieving perfect harmony between cylinders remains a complex engineering challenge. This blog dissects the most effective synchronization methods, empowering you to select the right solution for reliability, precision, and cost-efficiency.
Why Synchronization Matters
Hydraulic cylinders must move in unison to:
- Ensure even force distribution (e.g., in stamping presses).
- Prevent structural twisting (e.g., crane booms or bridge lifts).
- Maintain positional accuracy (e.g., robotic arms or CNC machinery).
Failure risks safety violations, unplanned downtime, and costly repairs. The stakes demand solutions tailored to your system’s precision tolerance (±0.1mm vs. ±2mm), dynamic response, and operating environment.
Common Synchronization Methods Compared
- Mechanical Linking
- How it works: Cylinders are rigidly connected via gears, chains, or torsion-resistant shafts.
- Pros: Simple, low-cost, immune to hydraulic fluctuations.
- Cons: Demands perfect alignment; induces high mechanical stress; inflexible for long strokes.
- Best for: Short-stroke applications like compact clamps or low-precision lifts.
- Flow Control Methods
- Flow Dividers/Combiners:
Fixed-gear or rotary designs split flow equally.
Pros: Robust, moderate cost, no electronics.
Cons: Flow imbalance under varying loads; limited scalability beyond 2–4 cylinders. - Throttle Valves & Flow Controls:
Manual or adjustable orifices regulate cylinder speed.
Pros: Low-cost, easy retrofitting.
Cons: Requires constant tuning; prone to drift with temperature/pressure changes.
- Flow Dividers/Combiners:
- Electronic Synchronization (Closed-Loop)

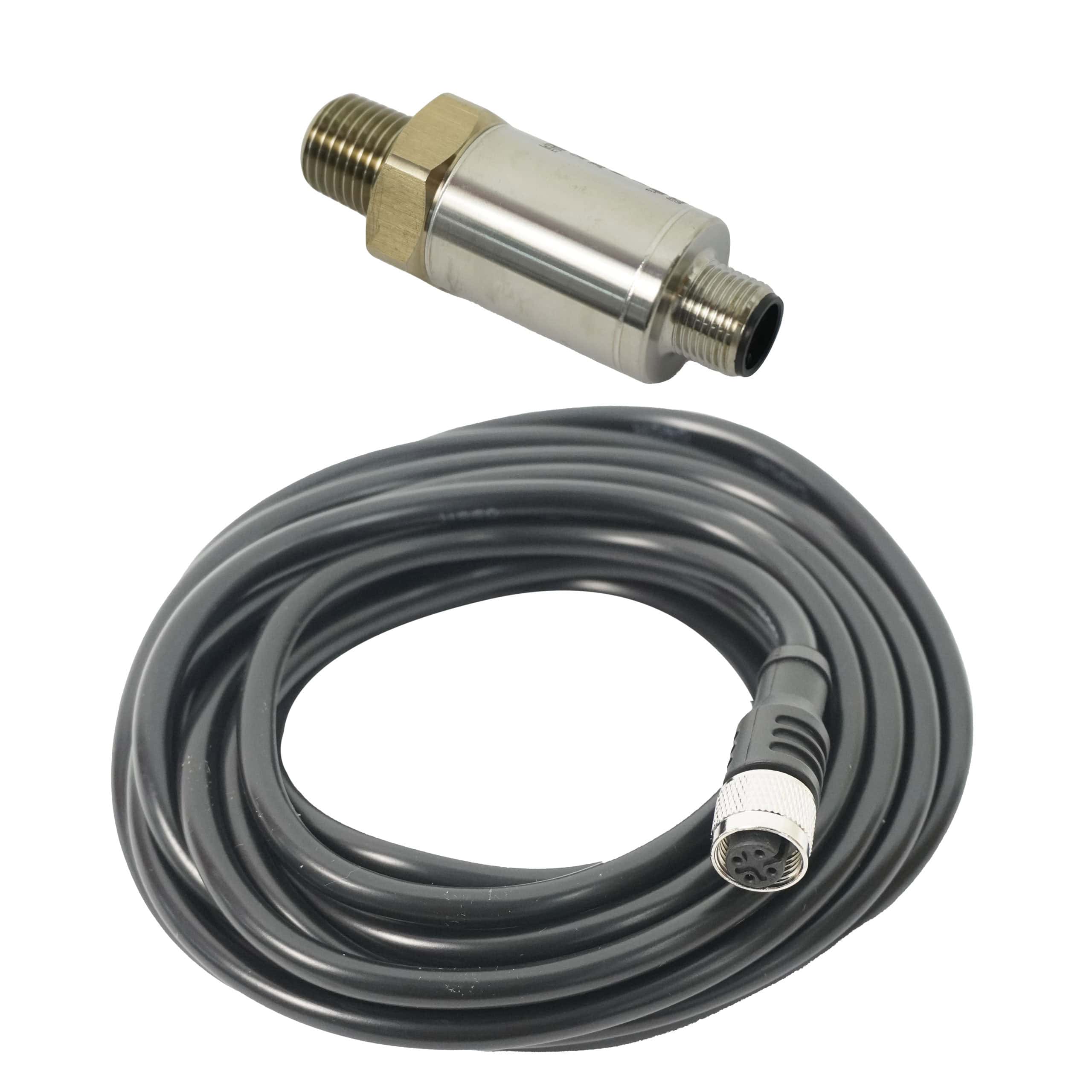

- How it works: Position/pressure sensors feed real-time data to a PLC, which adjusts proportional/servo valves via PID control algorithms.
- Pros: Sub-millimeter precision; compensates for load shifts, leakage, or thermal drift.
- Cons: High upfront cost; demands skilled maintenance and clean power.
- Best for: High-accuracy systems (e.g., injection molding, test benches).
- Hydraulic-Mechanical Hybrids
- Master-Slave Systems:
The “master” cylinder’s movement directs oil to “slave” cylinders.
Pros: No electronics; moderate precision.
Cons: Lag under dynamic loads; unsuitable for asymmetric systems.
- Master-Slave Systems:
Advanced Solutions
- Electro-Hydraulic Motion Controllers: Integrate IoT sensors with predictive algorithms to preempt desynchronization.
- Pressure-Compensated Flow Dividers: Minimize errors from load-induced pressure differentials.
- Synchronization Manifolds: Pre-engineered valve blocks simplify multi-cylinder circuit design.
Key Selection Criteria
Evaluate methods using these parameters:
| Factor | Mechanical | Flow Control | Electronic |
|---|---|---|---|
| Precision | Low | Medium | High |
| Cost | $ | $$ | $$$ |
| Complexity | Low | Medium | High |
| Adaptability | Low | Medium | High |
| Maintenance | Low | Medium | High |
Real-World Case Studies
- Automotive Press Line: Mechanical linkages synchronized 4 cylinders (±2mm tolerance) for hood stamping—cost-effective but required weekly alignment checks.
- Precision Injection Molder: Closed-loop electronic sync (with LVDTs) achieved ±0.1mm repeatability, boosting part quality by 30%.
- Mobile Crane: Pressure-compensated flow dividers balanced outrigger cylinders across uneven terrain, eliminating boom deflection.
Troubleshooting Tips
- Symptom: Cylinder drift
Fix: Check for internal leakage; recalibrate sensors/valves. - Symptom: Jerky motion
Fix: Inspect fluid contamination; adjust PID gains. - Symptom: Pressure spikes
Fix: Install cushion valves; verify flow divider health.
The “Best” Method? It Depends.
No one-size-fits-all solution exists:
- Opt for mechanical linking if cost and simplicity trump precision.
- Choose flow dividers for moderate accuracy in harsh environments (e.g., agriculture).
- Invest in electronic sync for mission-critical precision (e.g., aerospace, medical).
Future Trend: AI-driven predictive synchronization using digital twins is rising—enabling real-time compensation before deviations occur.
Conclusion
Synchronizing hydraulic cylinders balances precision, reliability, and economics. While mechanical and flow control methods suffice for basic needs, closed-loop electronic systems offer unparalleled accuracy for evolving Industry 4.0 applications. Prioritize lifecycle costs over upfront savings: a marginally more expensive system can prevent six-figure downtime. Consult ISO 4413 standards, validate with simulation, and partner with trusted suppliers (e.g., Ultpre,Bosch Rexroth, Parker Hannifin) to future-proof your design.
