Description
Model: ZJ9
Series: SJ
Product Lines: Pile Load Testing Equipment
- 9 points pile load testing system, can work with a maximum of 9 cylinders simultaneously.
- Flexible in choosing the cylinders to use for the operation.
- Real-time control, monitoring, and recording of multiple pile test jacks’ pressure, output force,load cell sensor feedback and even sensor feedback from dial gauge displacement sensors.
- High pressure maintenance ability and pressure compensation function.
- After the pile load test, excel format testing data can be downloaded with a USB.
- Record data every second.
- Panel design connecting interface.
- 10-inch PLC touch screen.
- Available for internet long-distance remote control.
- Additional displacement sensors for the entire system to measure the settlement of the foundation can be configured if required.
- Standard pressure accuracy is 10bar,3bar accuracy can be reached too(but the pressure increasing speed will be very slow).
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

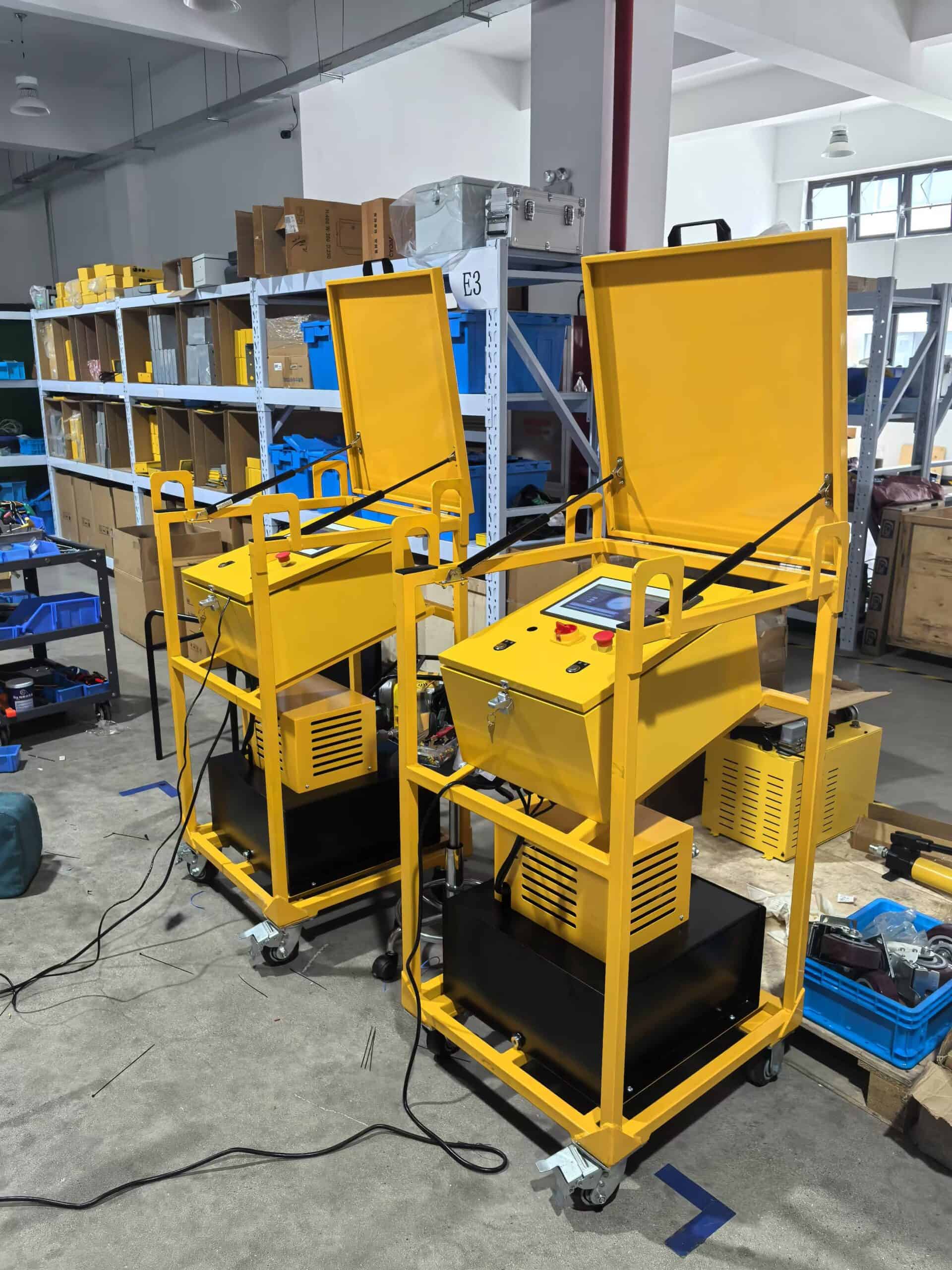

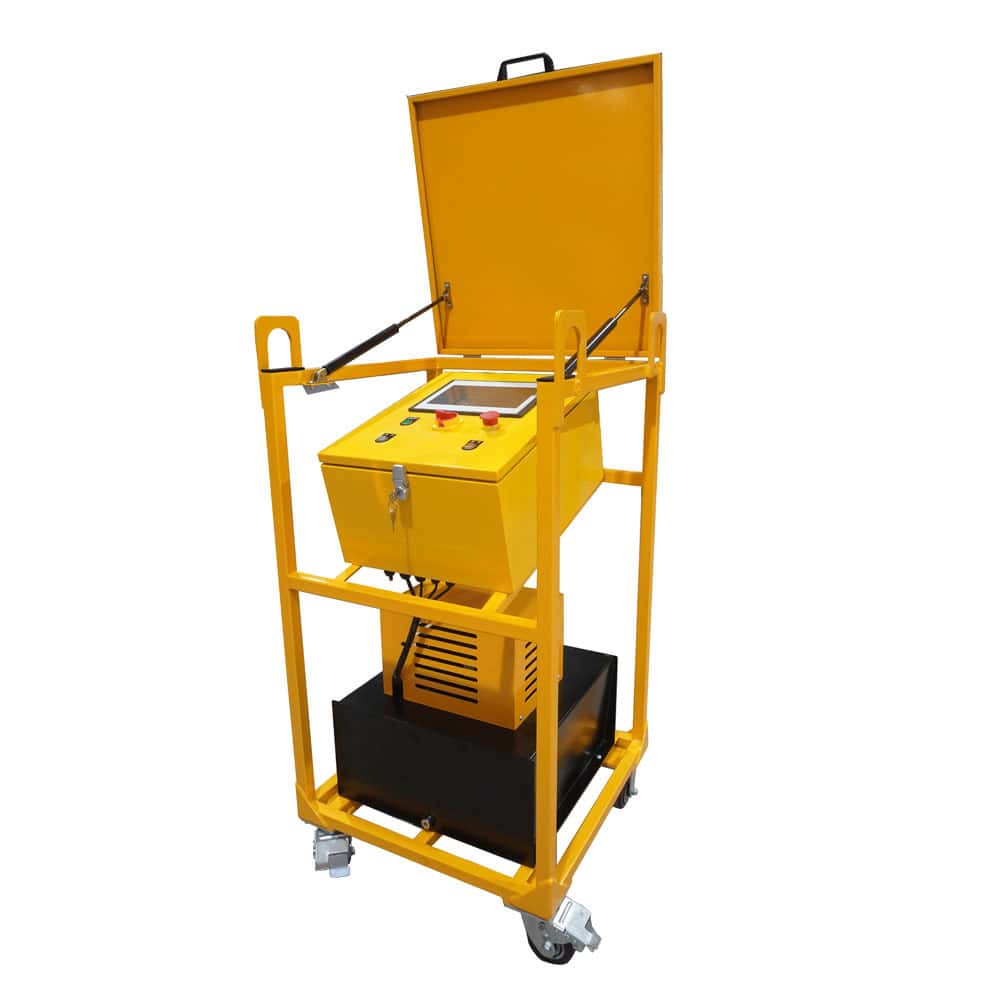

Image Gallery
Application Videos
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Cylinder Compatability | Single-acting, Double-Acting |
| Oil Capacity (L) | 200 |
| Power(KW) | 7 |
| Number of Liting Points | 9 |
| Flow Rate(L/min) | 6 |
| Voltage/V | 410V 50HZ |
| Weight (kg) | 450 |
