FSM8, 8 ton, mechanische flensspreider, enkele set, maximale spreiding 80 mm

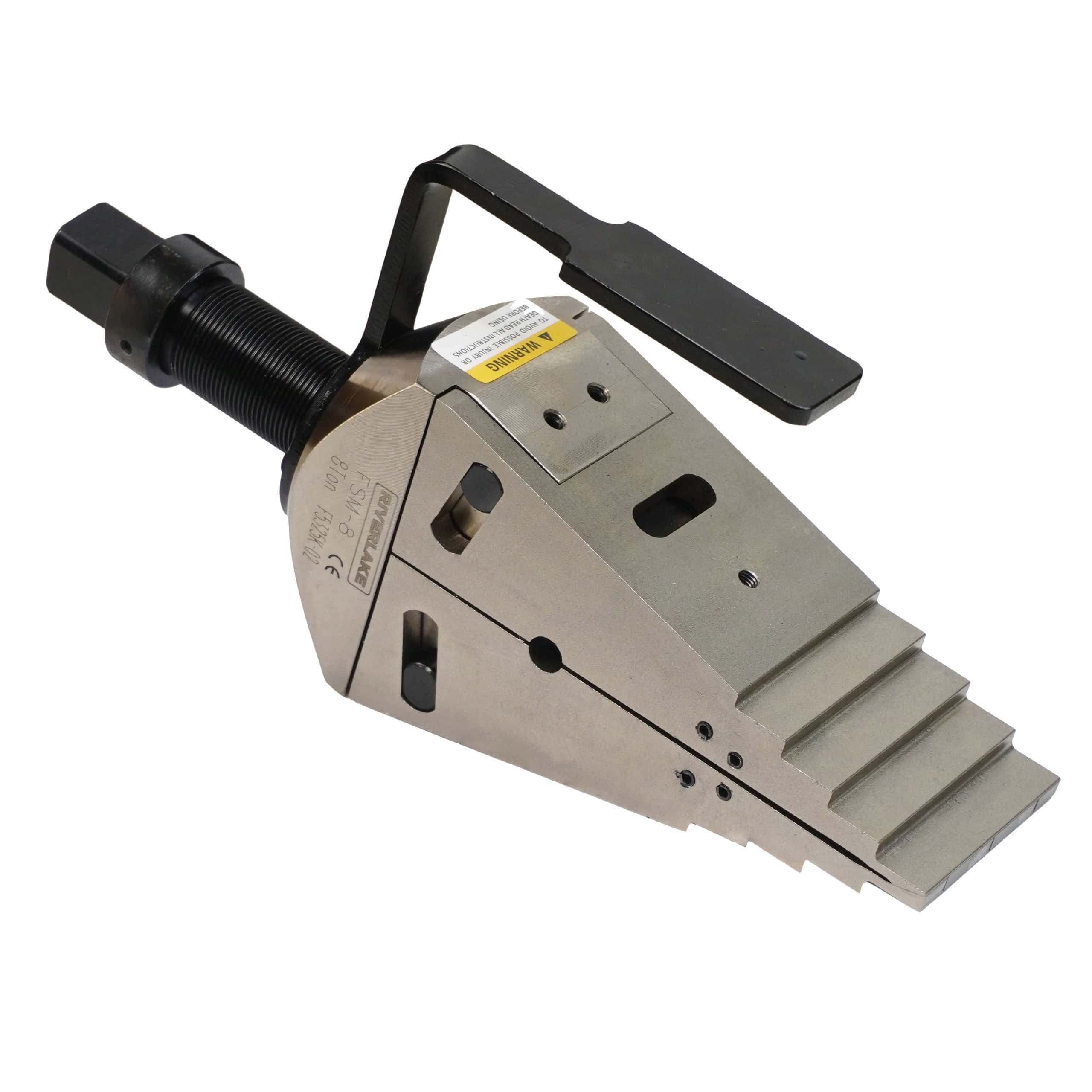

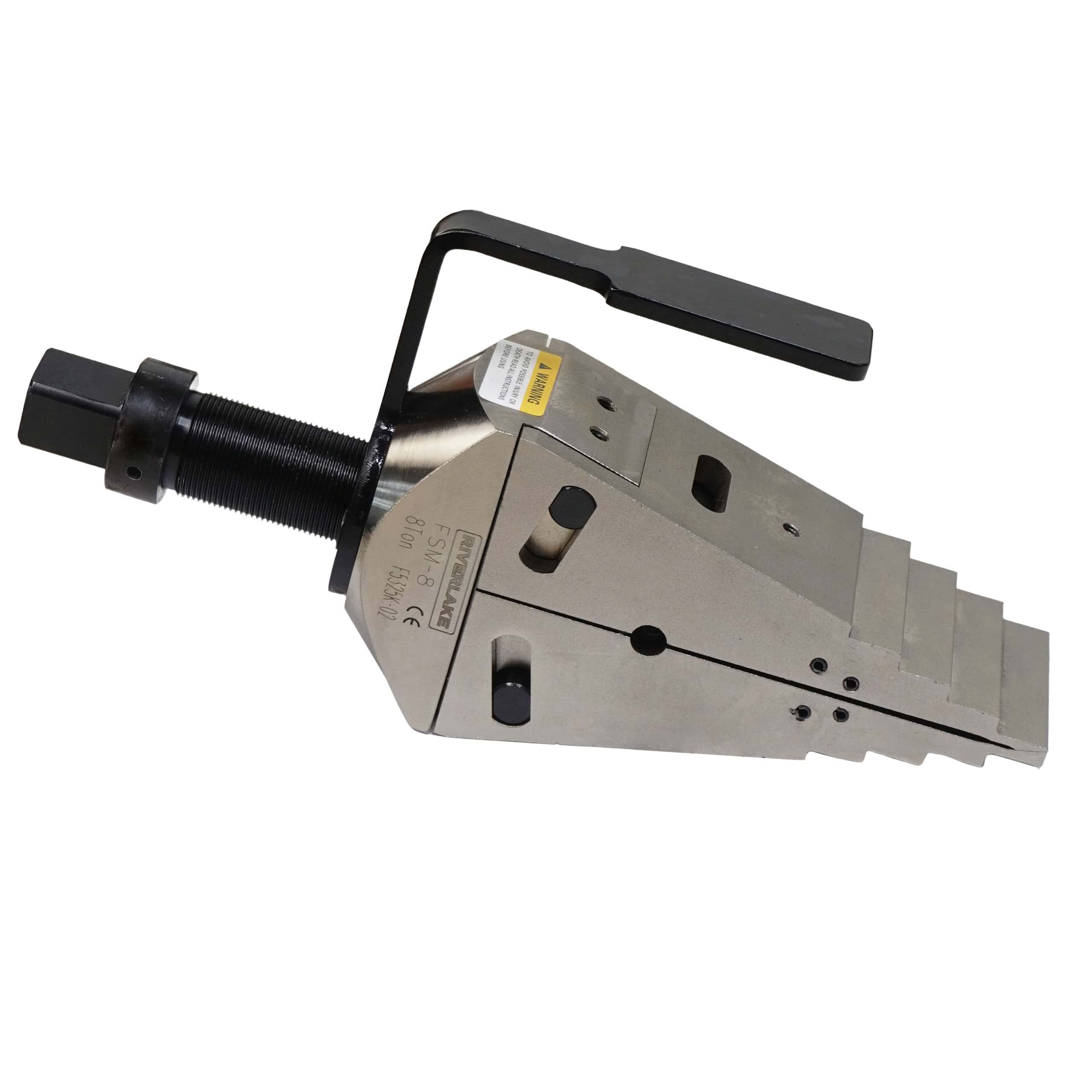

The RIVERLAKE FSM8 is a robust mechanical flange spreader designed for safe, controlled, and reliable flange separation without the need for hydraulics. Its unique interlocking wedge geometry eliminates first‑step bending and the risk of slipping out of the joint – a common failure point in conventional spreaders – ensuring secure engagement throughout the entire spreading operation.
Beschrijving
Model: FSM8 |Product Line: Industrial Tools
-
Uniek in elkaar grijpend wigontwerp: The precision wedge locks positively into the flange gap, preventing the tool from bending or dislodging under load. This provides exceptional stability and operator confidence, even on corroded or uneven flange faces.
-
Minimale toegangskloof vereist: With a required initial gap of only 6 mm, the FSM8 can be deployed on flanges that are tightly compressed or partially seized – eliminating time‑consuming preparatory prying or wedging.
-
Duurzame, onderhoudsarme constructie: The tool contains few moving parts, which significantly reduces wear points and extends service life. Routine maintenance is minimal, making the FSM8 a cost‑effective choice for high‑use environments.
-

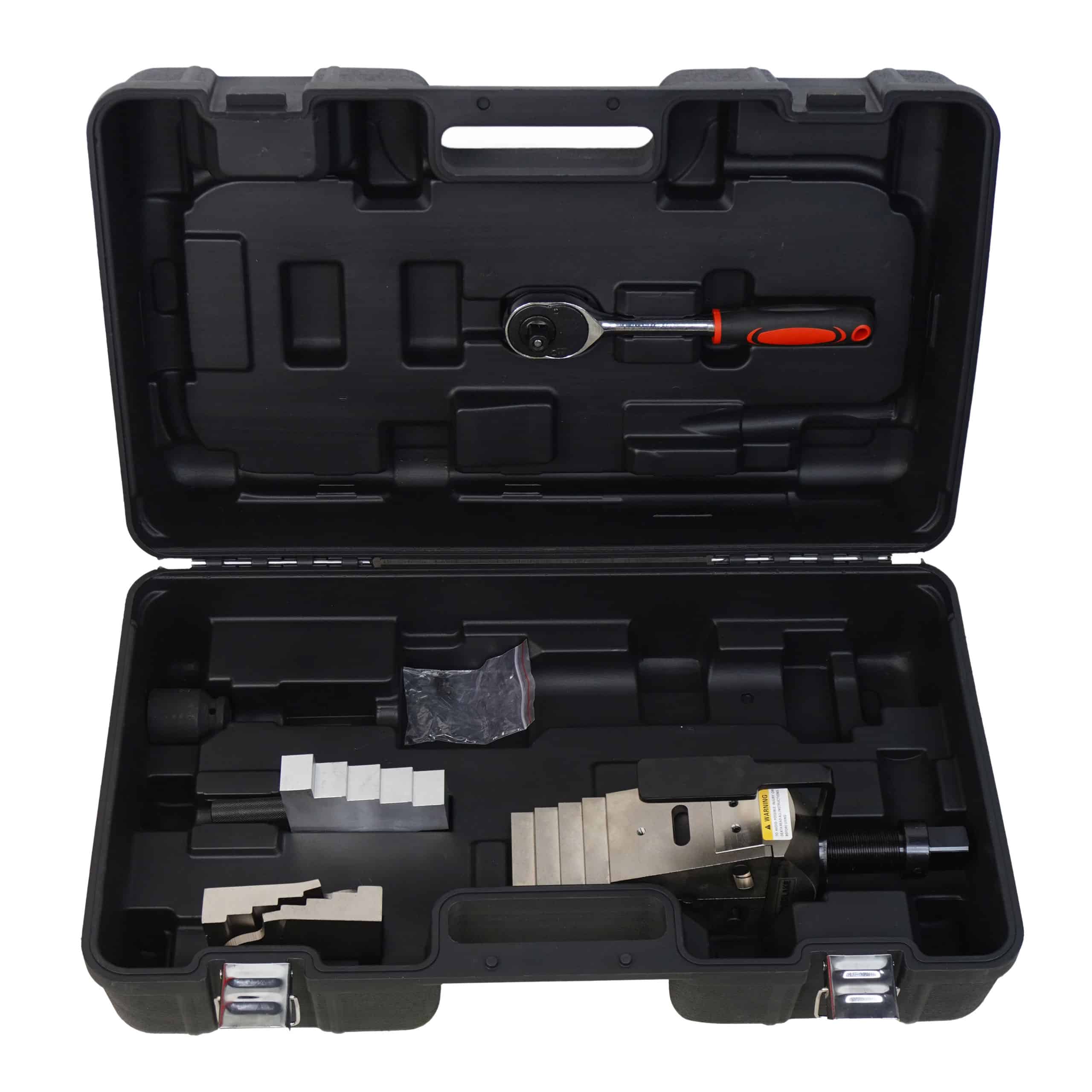

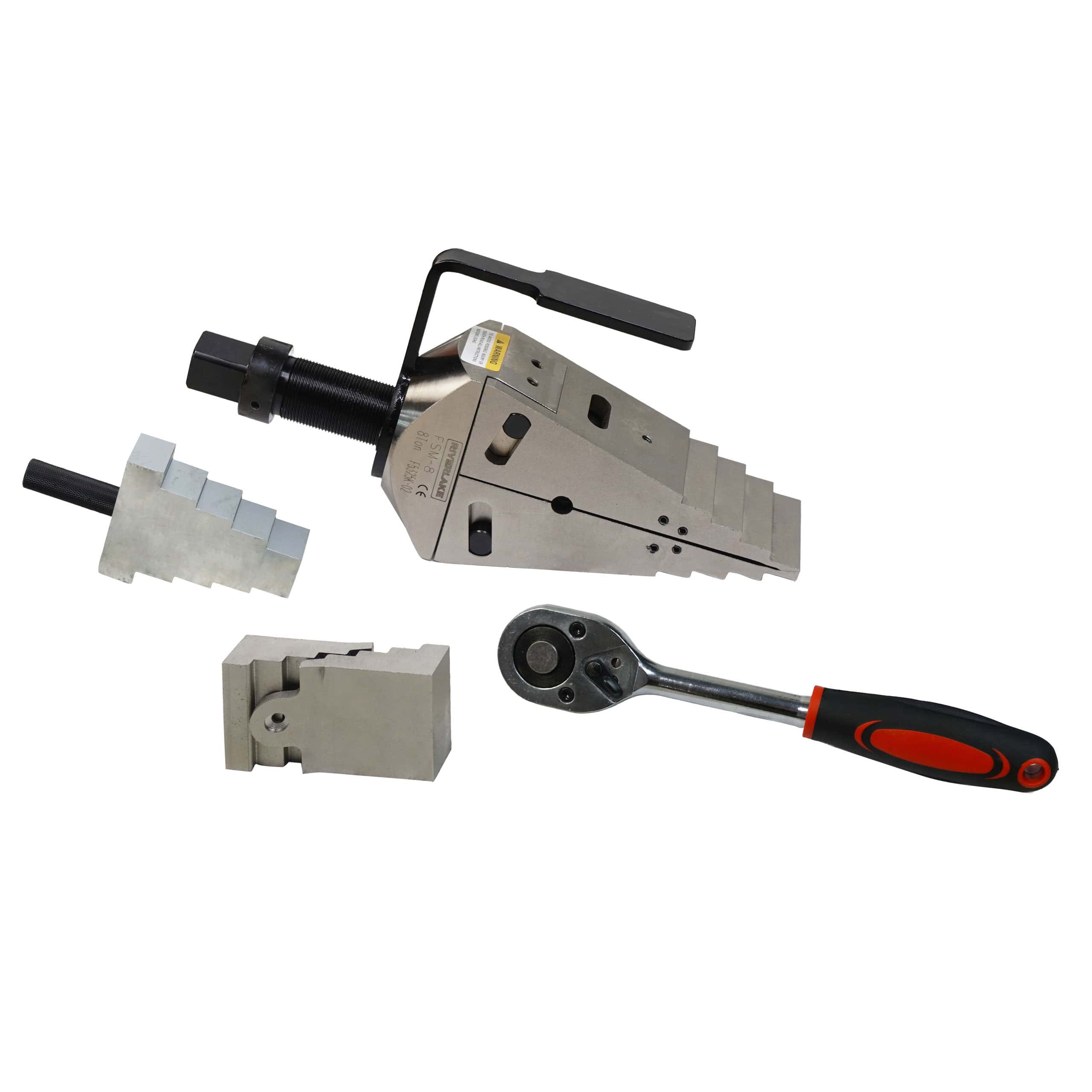

Complete Set with Safety Accessories: The FSM8 is supplied complete with an SB1 safety block and an SW22 ratchet spanner. The safety block mechanically locks the opened flange gap, allowing technicians to work safely between flange faces. The SW22 ratchet spanner provides efficient mechanical actuation without the need for external power sources.
Specificaties
| Model | FSM8 |
| Type | Mechanisch |
| Maximale spreidingskracht (ton) | 8 |
| Uiteindeontruiming (mm) | 6 |
| Maximale spreiding (mm) | 80 |
| Gewicht van de gereedschapskit (kg) | 14 |
Vergelijkingstabel van de reeks
| Model | Maximale spreidingskracht (ton) | Type | Maximale werkdruk (bar) | Uiteindeontruiming (mm) | Maximale spreiding (mm) | Oliecapaciteit (cm³) | Gewicht (kg) |
|---|---|---|---|---|---|---|---|
| FSH14 | 14.00 | Hydraulisch | 700.00 | 6.00 | 80.00 | 78.00 | 15.00 |
| FSM8 | 8.00 | Mechanisch | * | 6.00 | 80.00 | * | 14.00 |
