Description

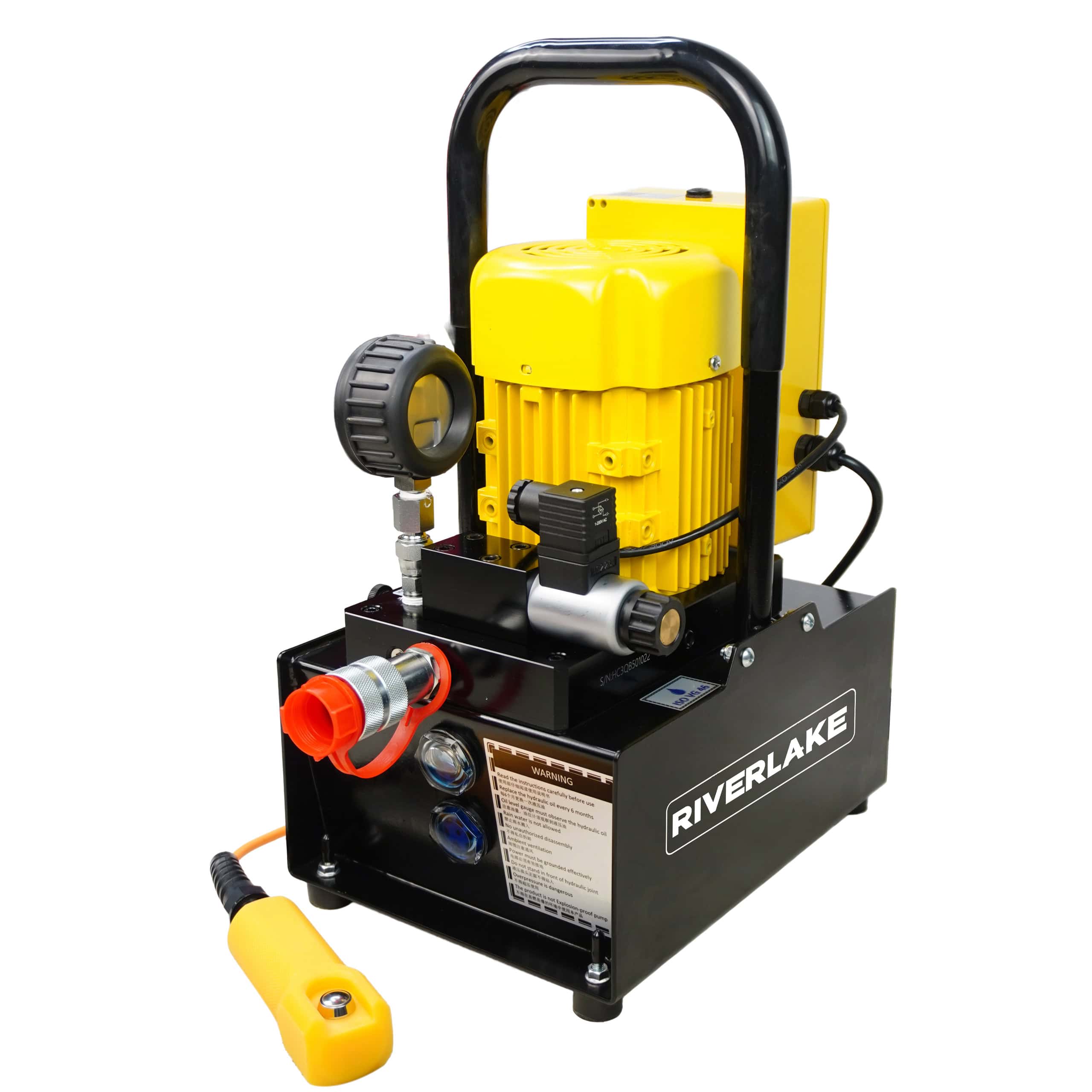

Model: HE3002EV32R
Product Lines: Industrial Tools
- Brushless motor, maintenance free, low noise
- Start-stop switch on the pump, 3 meters remote control switch, multiple operation modes
- Two-stage plunger pump, effectively improving work efficiency
- IP55 protection level
- Rubber non-slip feet
- Equipped with a thermal overload protector to effectively protect the motor
- Built-in safety valve to prevent overpressure
- Equipped with an external pressure-adjusting valve
- NPT3/8 oil outlet
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Specifications
Maximum Operating Pressure (bar) | 700 |
Pump Type | Single Acting |
Usable Oil(L) | 2 |
Power(KW) | 0.375 |
Voltage(V) | 1 PH 220/115V |
Low Pressure Flow Rate(L/min) | 1.5 |
High Pressure Flow Rate(L/min) | 1.2 |
Dimensions(mm) | 290X230X405 |
Weight (kg) | 14 |
Dimensions
Series Comparison
Model | Max Working Pressure(Mpa) | Motor Power(KW) | Low Pressure Flow Rate(L/min) | High Pressure Flow Rate(L/min) | Voltage | Usable Oil(L) | Control Valve | Oil Outlets | Pressure Gauge | Weight(Kg) |
---|---|---|---|---|---|---|---|---|---|---|
HE3002MV32R | 70 | 0.375 | 1.5 | 0.2 | 1 PH 220/115V | 2L | MV32 Manual unloading valve | Single Acting | N | 14 |
HE3002EV32R | 70 | 0.375 | 1.5 | 0.2 | 1 PH 220/115V | 2L | EV32 Solenoid Valve | Single Acting | Y | 14 |
HE3002HEV32R | 70 | 0.375 | 1.5 | 0.2 | 1 PH 220/115V | 2L | HEV32 HAWE Solenoid Valve,Pressure Holding No Leakage | Single Acting | Y | 14 |
HE3005MV32RG | 70 | 0.375 | 1.5 | 0.2 | 1 PH 220/115V | 3L | MV32 Manual unloading valve | Single Acting | Y | 15 |
HC3005MV32 | 70 | 0.55 | 4.5 | 0.35 | 1 PH 220/115V | 5L | MV32 Manual unloading valve | Single Acting | Y | 18 |
HC3005MV43 | 70 | 0.55 | 4.5 | 0.35 | 1 PH 220/115V | 5L | MV43 4Way 3Position Double Acting Manual Valve | Double Acting | Y | 19 |
HC3005EVL43 | 70 | 0.55 | 4.5 | 0.35 | 1 PH 220/115V | 5L | EVL43 4Way 3Position solenoid valve Double Acting with hydraulic lock, No Leakage | Double Acting | Y | 21 |
HC3005EVB43 | 70 | 0.55 | 4.5 | 0.35 | 1 PH 220/115V | 5L | EVB43 4Way 3Position solenoid valve Double Acting With Load Lowering Valve Installed on A Port | Double Acting | Y | 21 |
