Model: CTE-25AG

Series: CTE

Product Lines: Industrial Tools

  • The oil-filled pressure gauge can display the real-time working pressure of the pump, and avoid damage from overloading
  • Two-speed hydraulic pump
  • Fuse: to protect the motor and machine safety while power overloading
  • Memory: an internal memory device is equipped to indicate the times of use, provide reference data for maintenance
  • It must change the hydraulic oil at least one time in a year, and please use R-32 super special cycle oil

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Application Videos


Maximum Operating Pressure (bar)700
Pump TypeSingle Acting
Oil Capacity(L)4
Low Flow Rate(L/min)3
High Flow Rate(L/min)0.32
Weight (kg)16

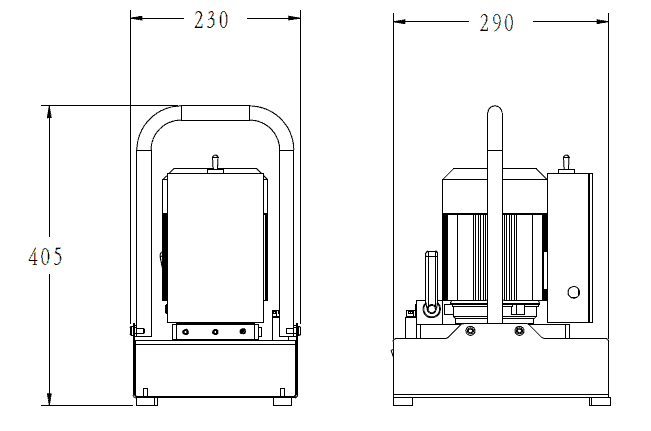

Portable Electric Hydraulic Pump Dimension

Series Comparison

ModelPump TypeOil Reserve/LPower/KWVoltage/VLow Flow Rate(L/min)High Flow Rate(L/min)Dimensions/mmWeight/Kg
CTE-25AGSingle Acting40.7522030.32235X310X39816
CTE-25ASDouble Acting40.7522030.32235X310X39817
