Description

Model: HA5007MV43

Product Lines: Industrial Tools

  • Equipped with Pneumatic TrioPneumatic triplet.
  • Ball valve motor start switch, easy to start and stop.
  • Optional single-acting, double-acting manual control valve.
  • Built-in safety valve, external pressure adjusting valve.
  • Steel oil tank, full protection frame.
  • 6 meters remote cable control handle

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

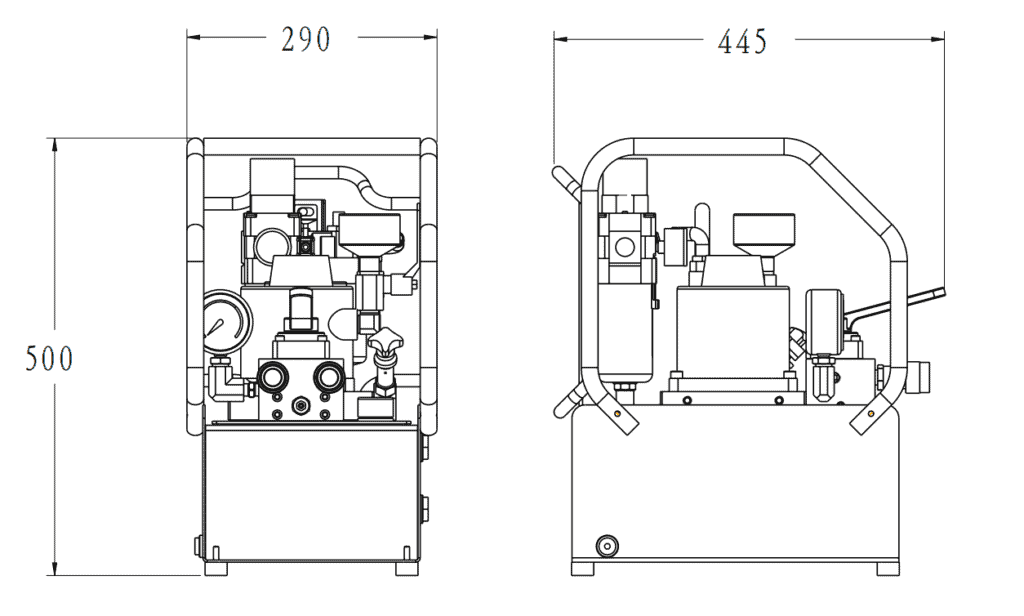

Dimension

Dimension

Specifications

Maximum Operating Pressure (bar)700
High Pressure Flow Rate(L/min)1
Low Pressure Flow Rate(L/min)9
Usable Oil Capacity(L)7
Control ValveManual Single/Double Acting
Weight(Kg)31
