Description

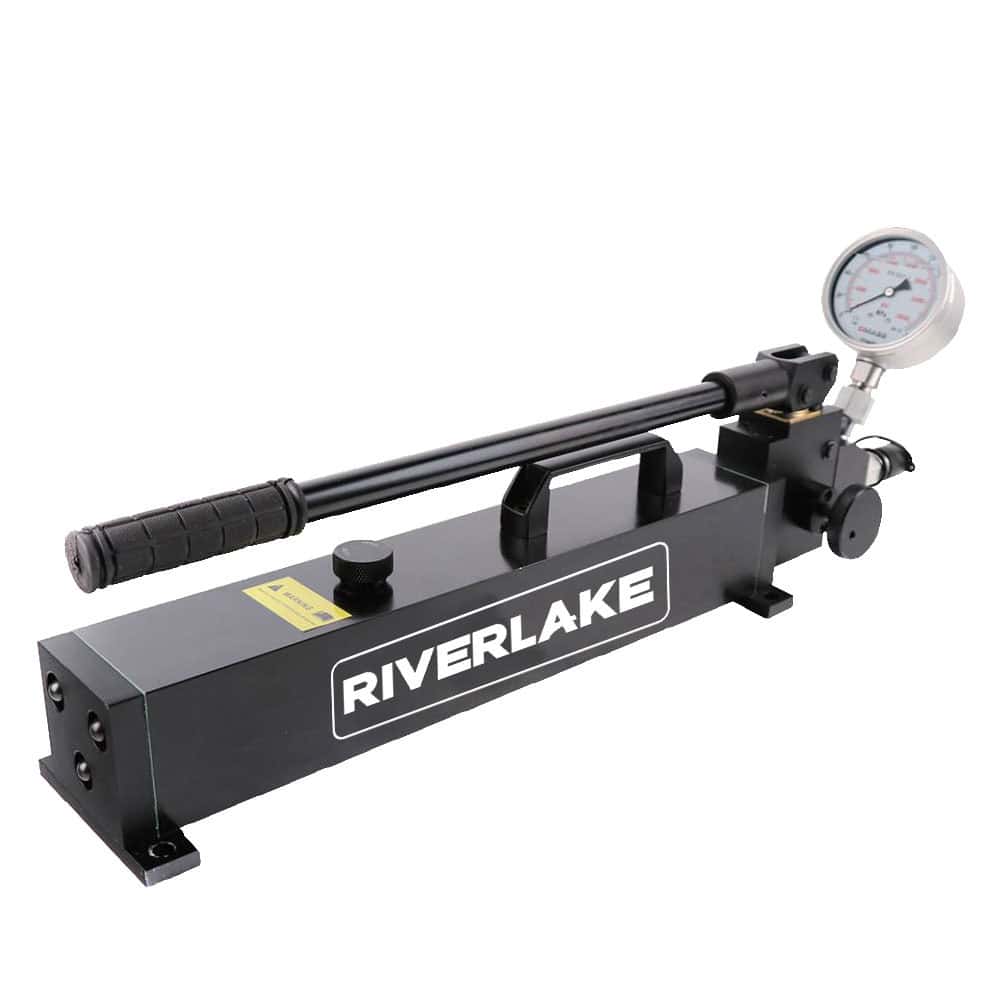

Model: P2100
Series: P Series
Product Lines: Industrial Tools
- Made of aluminum titanium alloy, lightweight, high pressure, corrosion, and impact resistance to various hash environments.
- Two-speed operation, built-in high and low-pressure automatic switch valve.Providing greater flow at low pressure to save operation time and increase the work efficiency
- Internal safety valve design, protection for overload
- The pressure regulating valve can adjust the working pressure
- Compact design, easy to carry

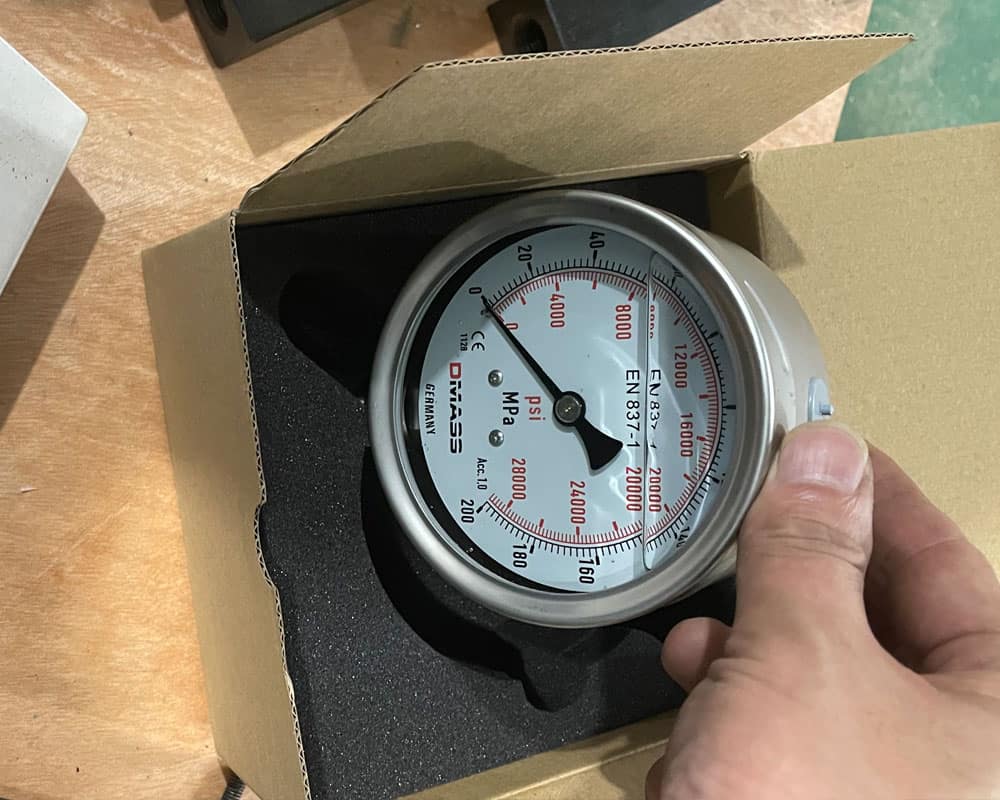

- Installed with pressure gauge and adapter
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Specifications
Maximum Operating Pressure (bar) | 2100 |
Material | Aluminum Titanium Alloy |
Usable Oil Capacity/cm3 | 1600 |
First Stage Pressure/bar | 18 |
Second Stage Pressure/bar | 2100 |
Oil Displacement Per Stroke 1st Stage (cm3) | 32 |
Oil Displacement Per Stroke 2nd Stage (cm3) | 1.2 |
Max handle Force(Kg) | 20 |
Weight(Kg) | 10.8 |

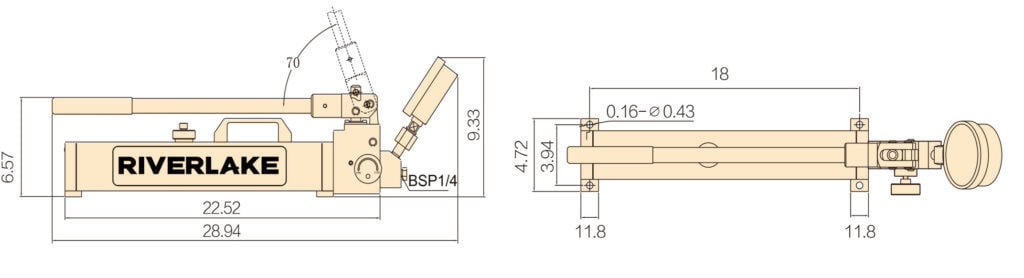

Dimensions
Series Comparison
Model | Usable Oil Capacity/cm3 | First Stage Pressure/bar | Second Stage Pressure/bar | Max handle Force/Kg | Oil Displacement Per Stroke 1st Stage (cm3) | Oil Displacement Per Stroke 2nd Stage (cm3) | Weight/Kg | Dimension A/mm | Dimension B/mm | Dimension C/mm |
---|---|---|---|---|---|---|---|---|---|---|
P-1500 | 1600 | 18 | 1500 | 20 | 32 | 1.2 | 10.8 | 225.2 | 47.2 | 65.7 |
P-2100 | 1600 | 18 | 2100 | 20 | 32 | 1.2 | 10.8 | 225.2 | 47.2 | 65.7 |
P-2800 | 1600 | 18 | 2800 | 20 | 32 | 0.8 | 10.8 | 225.2 | 47.2 | 65.7 |
