Description
Model: RLP5000H
Series: RLP Series
Product Lines: Industrial Tools
- The high-efficiency pump features 50% higher speed and efficiency than a two-stage pump.
- External startup switch of the motor for greater ease of remote operation.
- Optimized PCB design to achieve powerful functions: automatic cut-off in one minute after no-operation, automatic decompression after stop, and overload protection.
- An advance external heat sink increases pump reliability of continuous operation.
- The advanced pressure control valve fits through a long-time continuous operation and provides stable pressure.
- Triphase brushless motor provides for high efficiency, low maintenance, and long life.
- The pump head is built for long life and low maintenance, Compact, and Lightweight, high speed, large flow, high efficiency
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

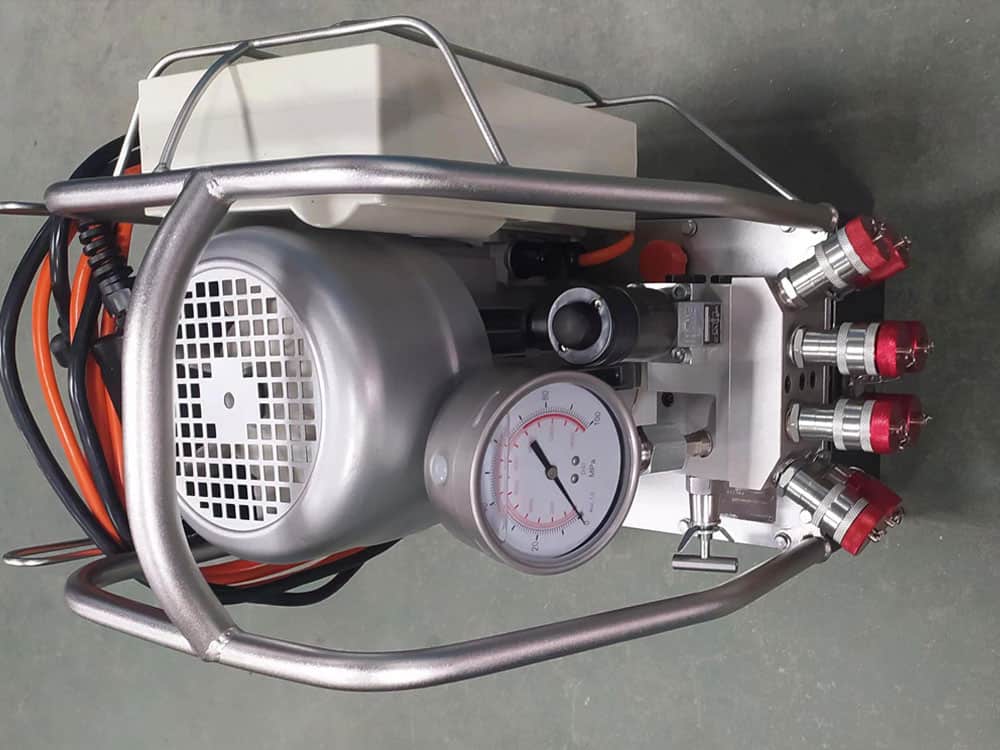

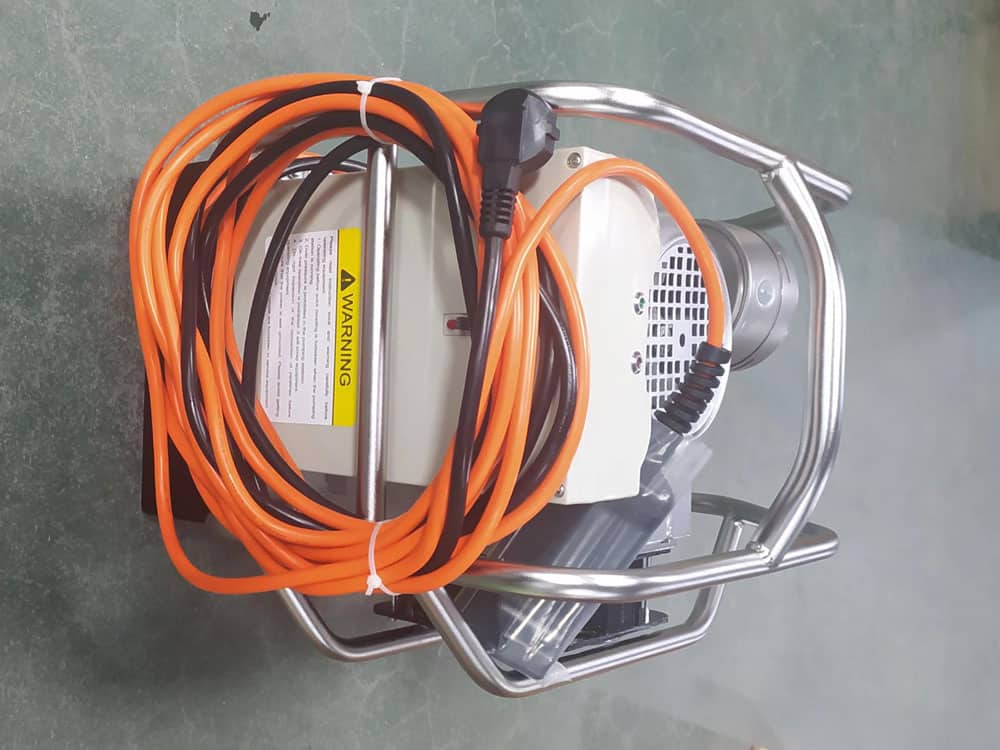

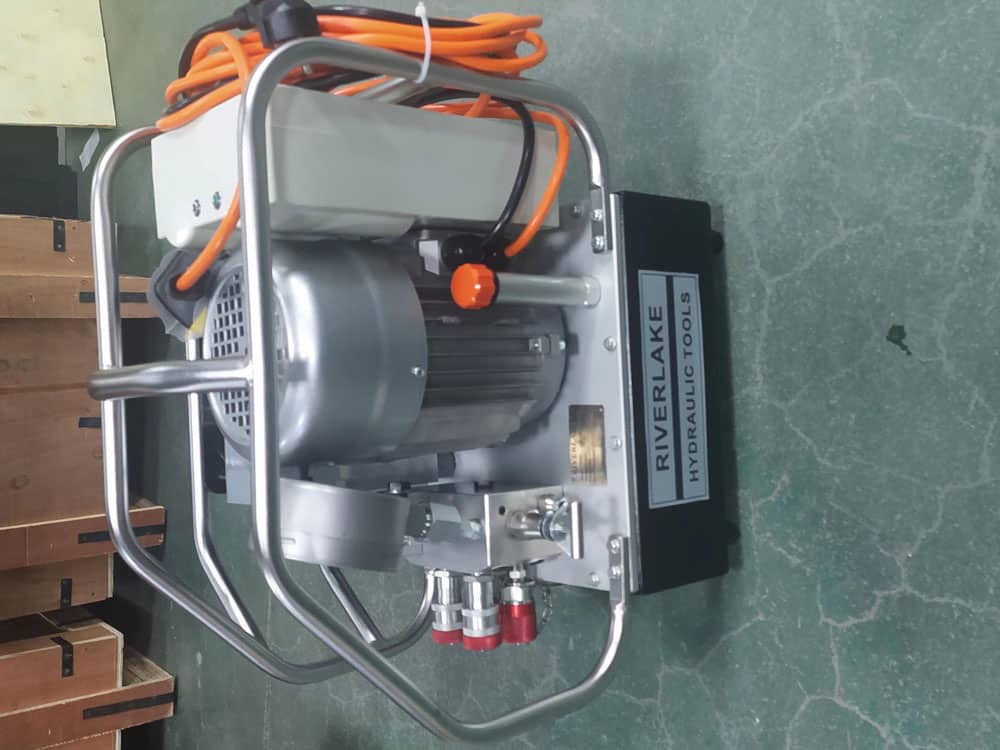

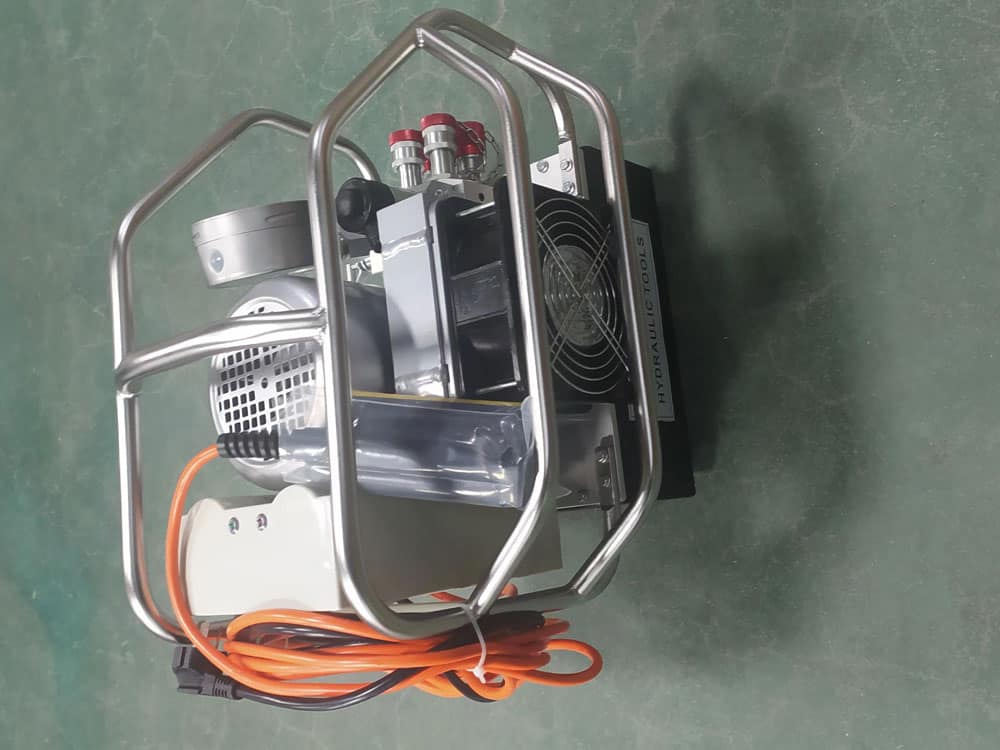

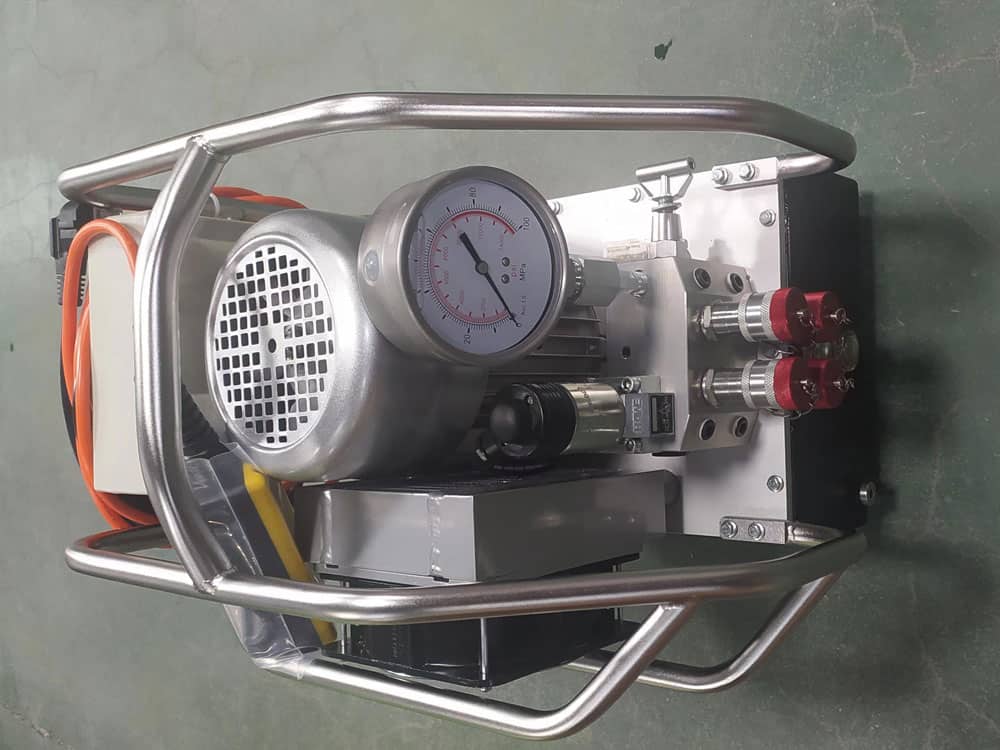

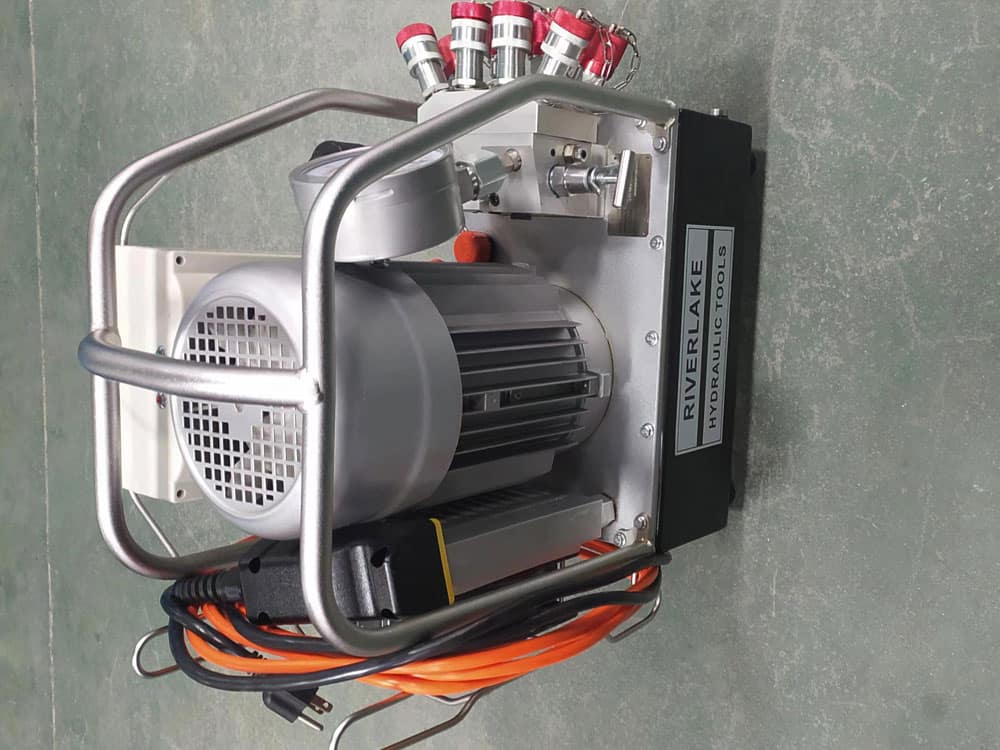

Image Gallery
Specifications
| High Pressure (bar) | 700 |
| Middle Pressure(bar) | 280 |
| Low Pressure(bar) | 70 |
| High-Pressure Oil Flow (L/min) | 0.85 |
| Middle-Pressure Oil Flow (L/min) | 1.7 |
| Low-Pressure Oil Flow (L/min) | 7.5 |
| Motor Power(KW) | 1.1 |
| Oil Capacity(L) | 5 |
| Input Power | 1PH 110-240V 50/60HZ |
| Weight(Kg) | 28 |

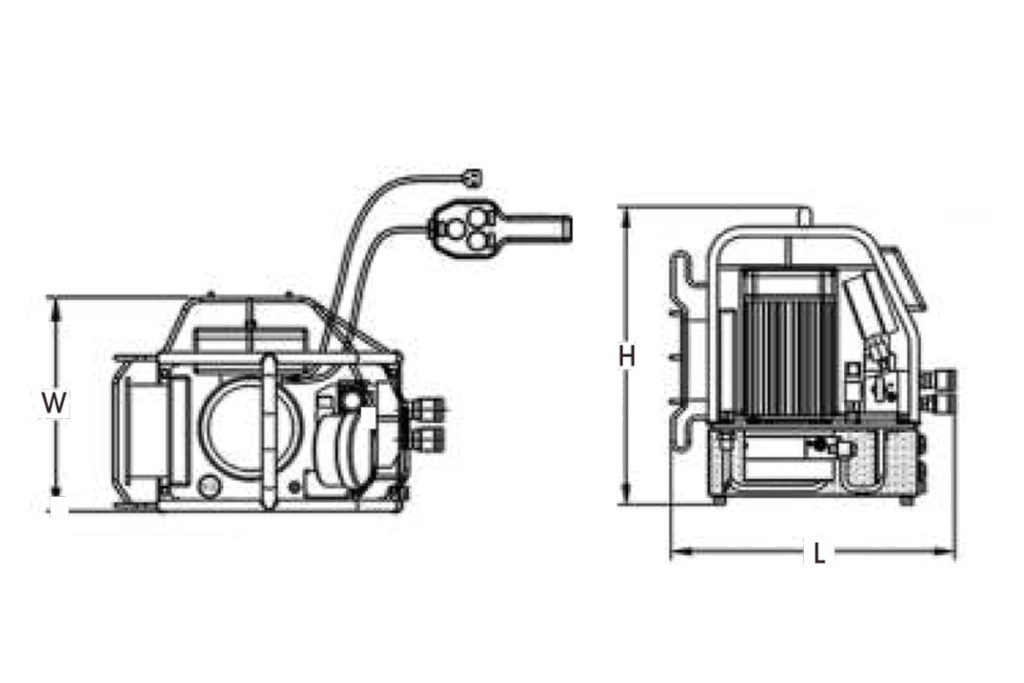

Dimensions
| Dimension L/mm | 450 |
| Dimension W/mm | 330 |
| Dimension H/mm | 460 |
Series Comparison
| Model | High Pressure Oil Flow (L/min) | Middle Pressure Oil Flow (L/min) | Low Pressure Oil Flow (L/min) | High Pressure(Mpa) | Middle Pressure(Mpa) | Low Pressure(Mpa) | Motor Power(KW) | Oil Capacity(L) | Input Power | Torque Wrench Numbers | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RLP5000H | 0.85 | 1.7 | 7.5 | 70 | 28 | 7 | 1.1 | 5 | 1PH 110-240V 50/60HZ | 2 | 28 |
| RLP5000H-4 | 0.85 | 1.7 | 7.5 | 70 | 28 | 7 | 1.1 | 5 | 1PH 110-240V 50/60HZ | 4 | 28 |
