Description

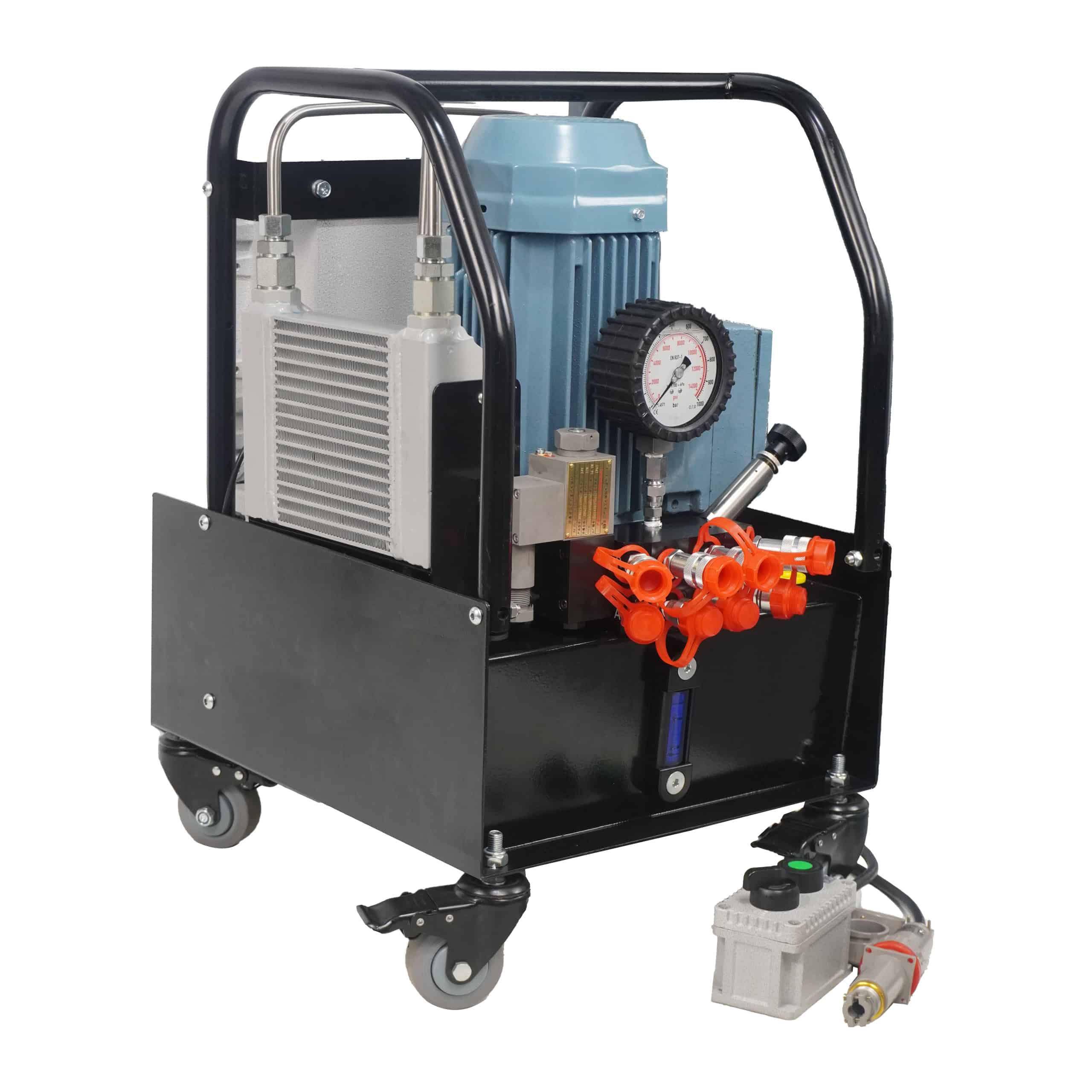

Model: EXHE5TW
Product Lines: Industrial Tools
- Explosion-proof design level: Exd II B T4.
- Increased safety electric control box, equipped with three-phase overload protector.
- The directional valve was imported from Germany.
- ABB explosion-proof motor.
- Two-stage flow, high efficiency.
- Equipped with an adjustable relief valve, the pressure is continuously adjustable.
- It is equipped with a heat-dissipation aluminum row and low-temperature rise.
- 6M wire control handle.
- Configured with a protective frame and lockable casters.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Parts List
1:Hydraulic reversing valve | 9:High-pressure oil port |
2:Radiator | 10:Air Went |
3:Low-pressure oil port | 11:Oil level gauge |
4:Bobbin winder | 12:Circuit breaker switch |
5:Casters | 13:Power Indicator |
6:Motor | 14:Oil drain port |
7:Pressure gauge | 15:The pump running indicator light |
8:Pressure adjusting valve | 16:The pump running indicator light |
Dimensions
Specification
Model | Max Working Pressure(Mpa) | High Pressure Oil Flow (L/min) | Low Pressure Oil Flow (L/min) | Power(KW) | Voltage | Oil Tank Capacity(L) | Torque Wrench Number | Weight Including Oil(Kg) |
---|---|---|---|---|---|---|---|---|
EXHE5TW | 70 | 0.85 | 7 | 1.5 | 380VAC,3ph | 20 | 1 | 120 |
EXHE5TW-2 | 70 | 0.85 | 7 | 1.5 | 380VAC,3ph | 20 | 2 | 120 |
EXHE5TW4 | 70 | 0.85 | 7 | 1.5 | 380VAC,3ph | 20 | 4 | 120 |
