Description
Model: PTES
Product Lines: Industrial Tools

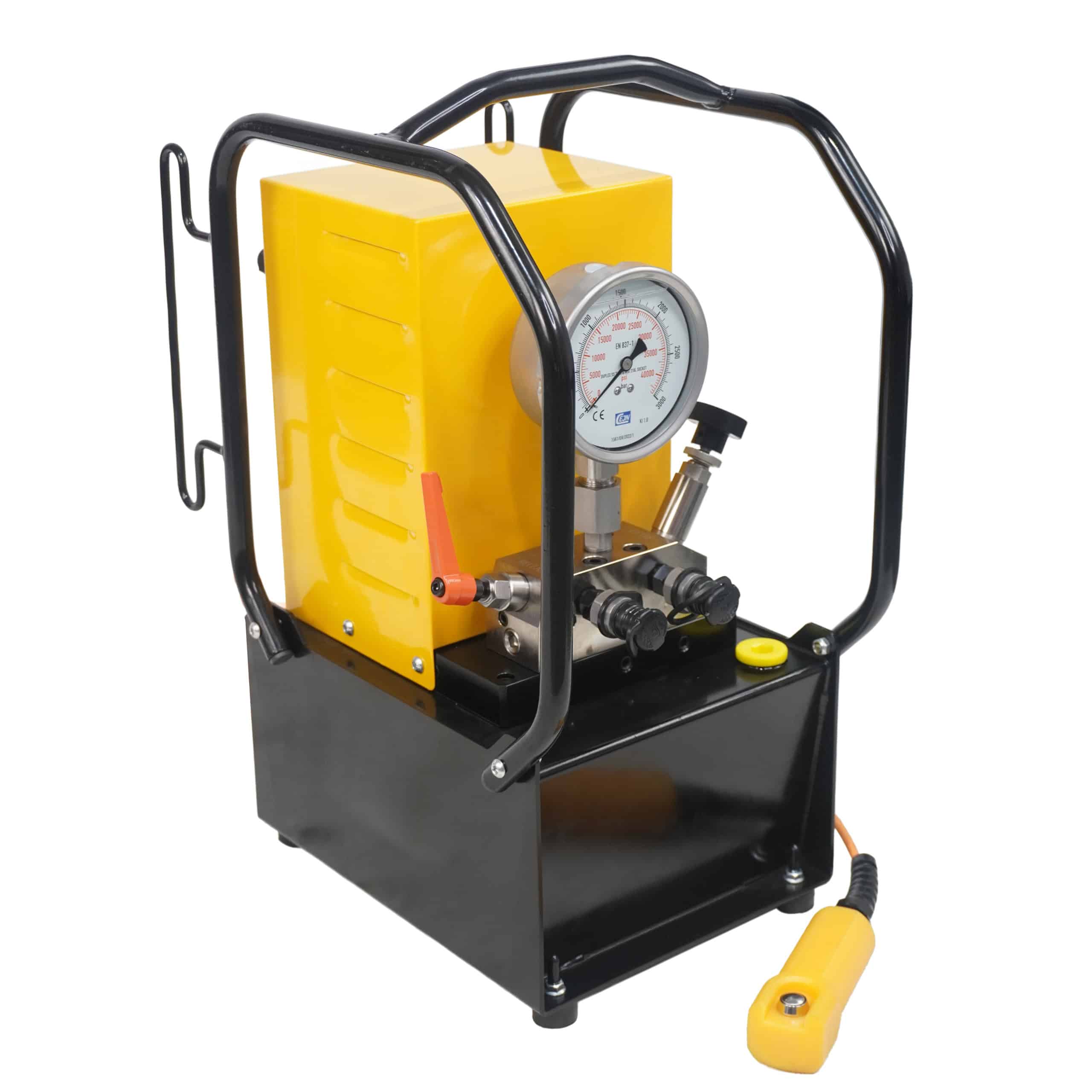

- PES series hydraulic tensioning pumps all use servo motors and have a one-button CNC operation function, which is simple and convenient.
- Equipped with a hydraulic oil filter, hydraulic oil can be used for more than 300 hours.
- Automatically shut down when reaching the set pressure to avoid misoperation, with automatic pressure replenishment function.
- It is equipped with a compact frame to protect the pump body, lightweight, and convenient for on-site high-altitude operations.
- 5-meter detachable remote control line, remote control operation, convenient for transportation and maintenance of the pump body.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Specifications
| Model | Rated Working Pressure(Bar) | High Pressure Flow Rate(L/min) | Low Pressure Flow Rate(L/min) | Usable Oil(L) | Power(KW) | Number of Tensioners | Dimensions(cm） | Voltage | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|
| PTES20020 | 2000 | 0.2 | 4 | 20 | 3/4.5/5.5/7.5 | 1 or 2 or 4 | 61.5X45X60 | 110/230/380 | 35.2 |
| PTES28020 | 2800 | 0.2 | 4 | 20 | 3/4.5/5.5/7.5 | 1 or 2 or 4 | 61.5X45X60 | 110/230/380 | 38.3 |
| PTES40020 | 4000 | 0.2 | 4 | 20 | 3/4.5/5.5/7.5 | 1 or 2 or 4 | 61.5X45X60 | 110/230/380 | 40.3 |
