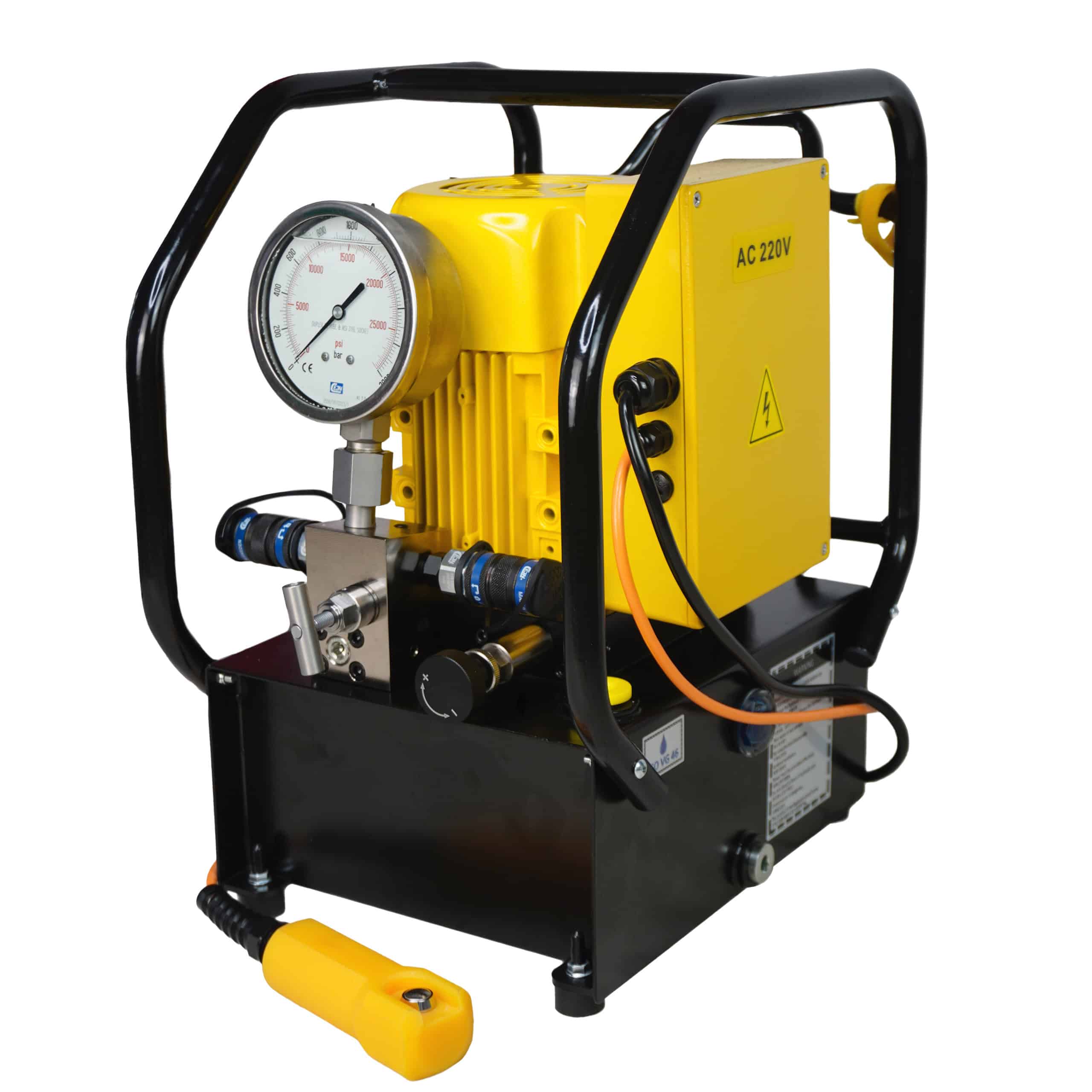

Description
Model: NEP
Product Lines: Industrial Tools
- Brushless motor, maintenance free.
- 100% cover protection frame.
- Panel-mounted user-adjustable valve for safe and precise pressure control.
- The safety relief valve limits output pressure.
- Pressure control accuracy:±2MPa.
- MAX pressure: 150-250MPa.
- Noisy level: 75dB.
- 24VDC safety control button.
- Easy operation cable collector.
- CEJN gauge and couplers.
- The two-stage pump design provides high flow at low pressure for fast system fills and controlled flow at high pressure for safe and accurate operation.
- The compact and lightweight design fits through tight openings and provides easy handling.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Image Gallery
Dimensions
Parts Diagram
Specifications
| Model | Rated Working Pressure(Bar) | High Pressure Flow Rate(L/min) | Low Pressure Flow Rate(L/min) | Usable Oil(L) | Power(KW) | Noise level(dB) | CEJN Couplers | Voltage | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|
| NEP1500 | 1500 | 0.25 | 1.5 | 7 | 1.1 | 75 | 116 | 230VAC/50HZ or 115VAC/60HZ | 36 |
| NEP2500 | 2500 | 0.15 | 1.5 | 7 | 1.1 | 75 | 125 | 230VAC/50HZ or 115VAC/60HZ | 36 |
