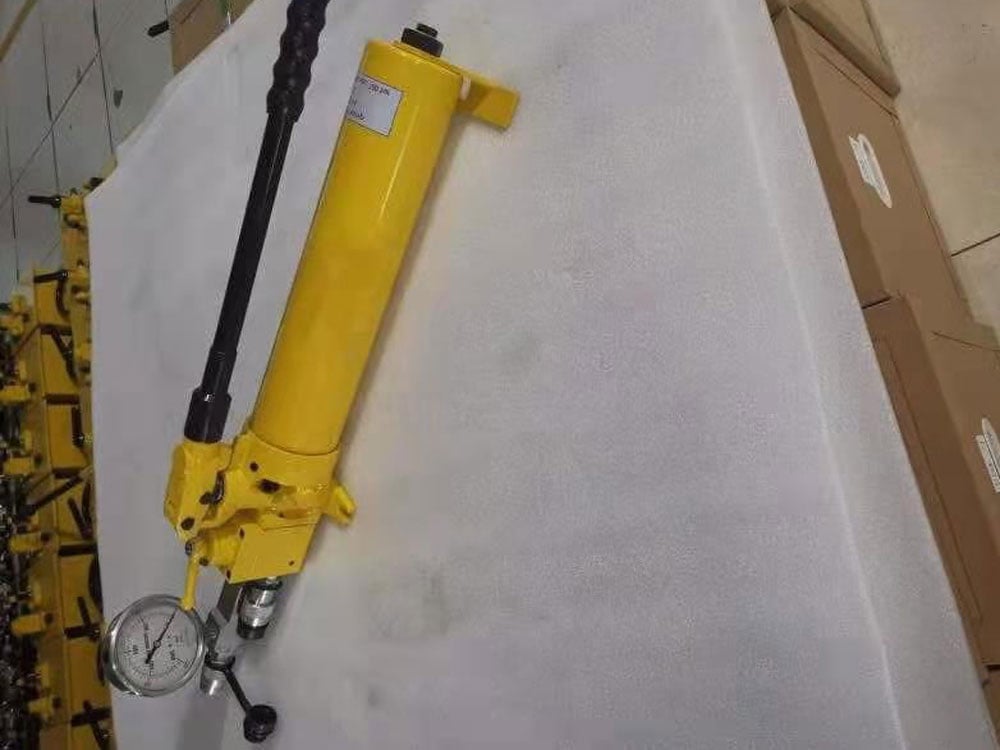

Description

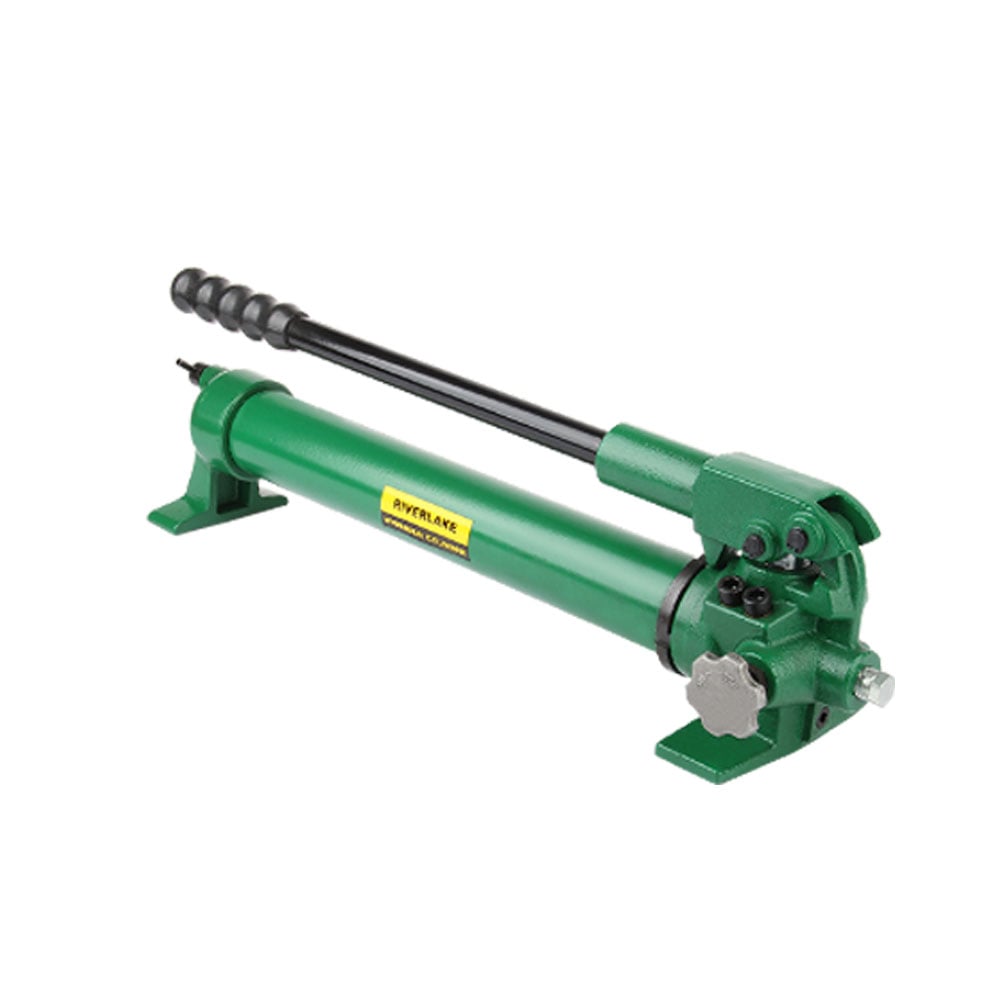

Model: P-392
Series: P Series
Product Lines: Industrial Tools
- Lightweight and compact design
- Lower handle effort to minimize operator fatigue
- The two-speed operation can reduce the work intensity of the operator
- Equipped with external pressure relief valve,can be used to operate single acting hydraulic cylinder
- The internal safety valve is equipped to protect the pump from overloading
- The oil capacity is big enough to match a wide range of hydraulic tools
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Specifications
Maximum Operating Pressure (bar) | 700 |
Usable Oil Capacity/cm3 | 655 |
First Stage Pressure(bar) | 25 |
Second Stage Pressure(bar) | 700 |
Oil Displacement Per Stroke 1st Stage (cm3) | 15 |
Oil Displacement Per Stroke 2nd Stage (cm3) | 2.62 |
Piston Stroke(mm) | 20.6 |
Pump Type | Two-speed, single acting |
Max handle Force(Kg) | 50 |
Weight(Kg) | 5.9 |

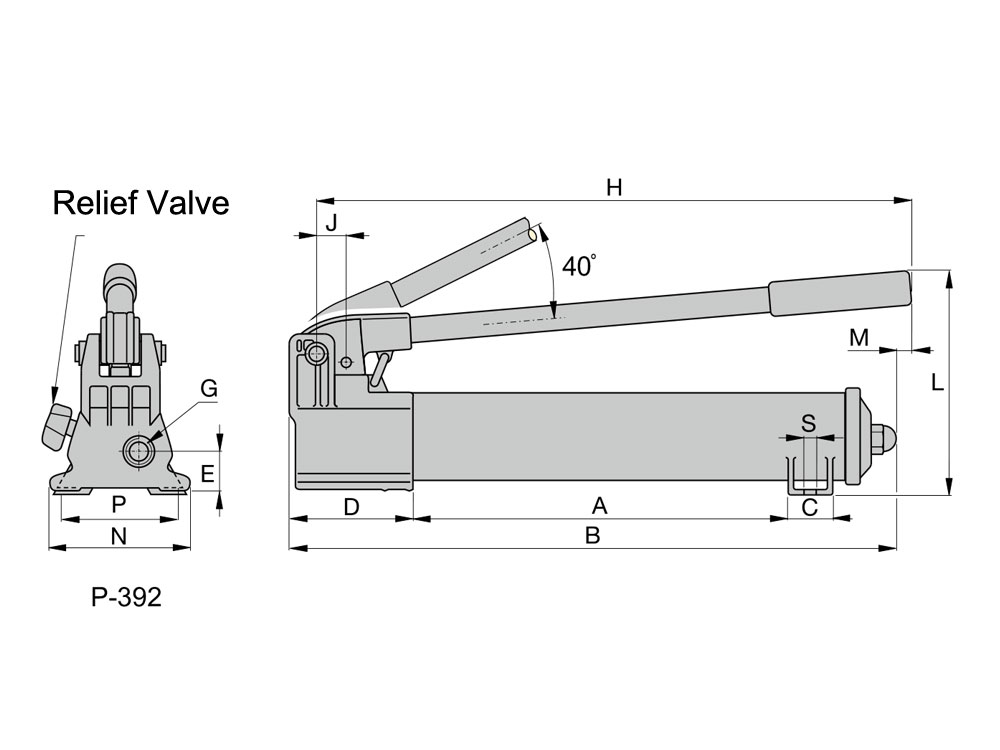

Dimensions
Dimension A/mm | 393 |
Dimension B/mm | 520 |
Dimension C/mm | 33 |
Dimension D/mm | 38 |
Dimension E/mm | 32 |
Dimension F/mm | * |
Dimension H/mm | 464 |
Dimension J/mm | 30 |
Dimension L/mm | 119 |
Dimension M/mm | 65 |
Dimension N/mm | 133 |
Dimension P/mm | * |
Dimension Q/mm | * |
Dimension R/mm | * |
Dimension S/mm | * |
Dimension T/mm | * |

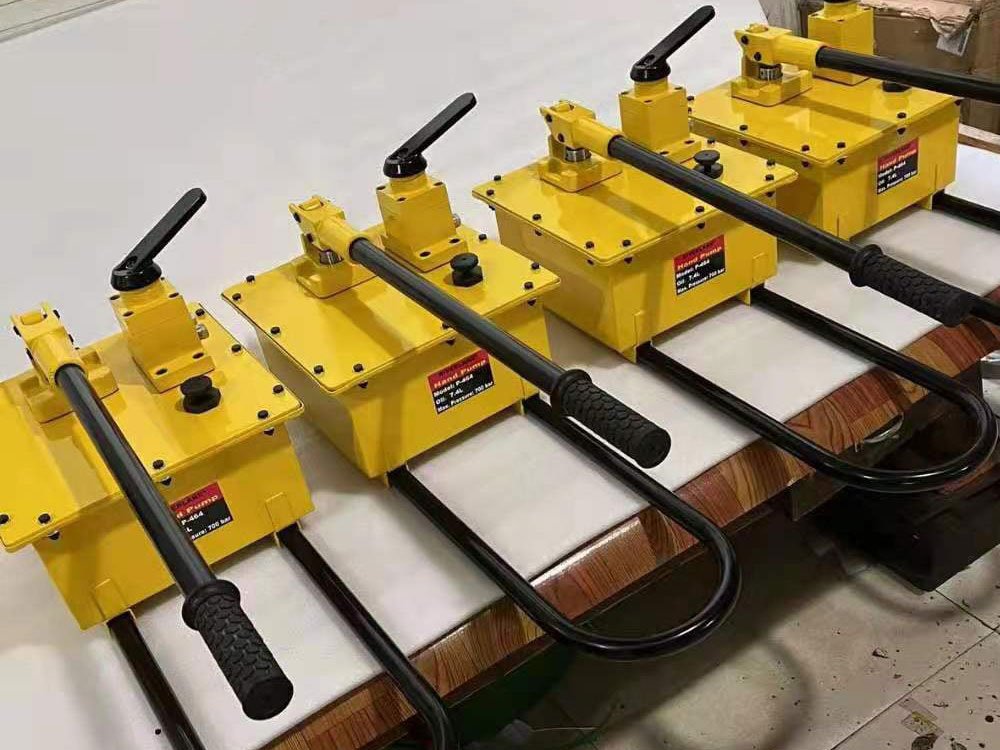

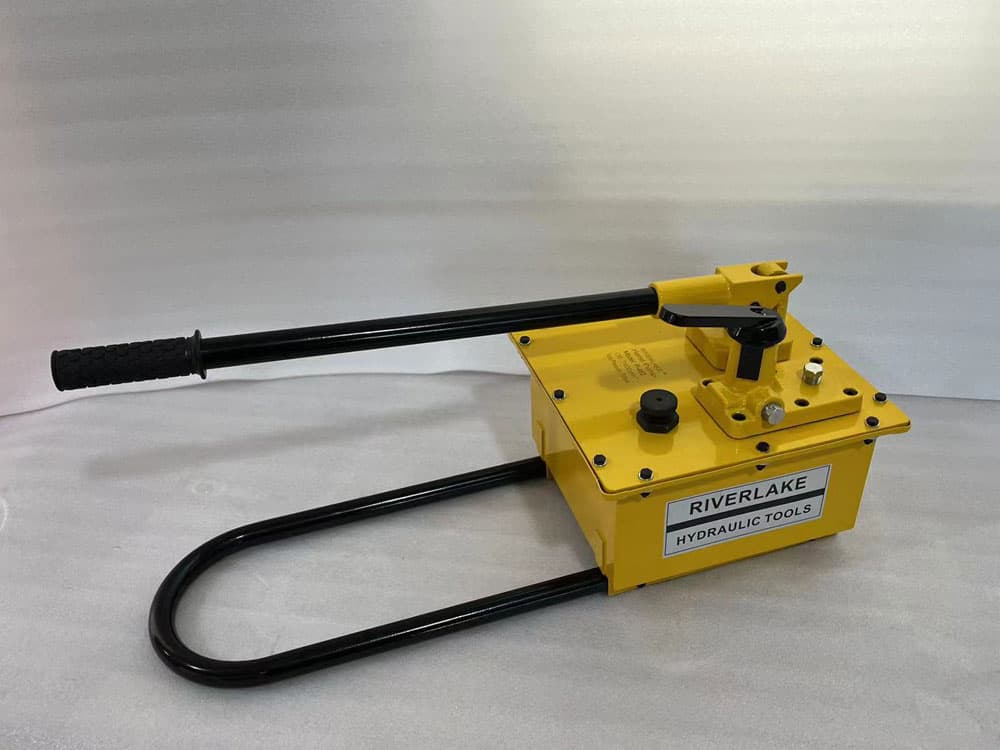

Series Comparison
Model | Usable Oil Capacity/cm3 | First Stage Pressure/bar | Second Stage Pressure/bar | Max handles Force/Kg | Oil Displacement Per Stroke 1st Stage (cm3) | Oil Displacement Per Stroke 2nd Stage (cm3) | Piston Stroke | Weight/Kg |
---|---|---|---|---|---|---|---|---|
P-392 | 655 | 25 | 700 | 50 | 15 | 2.62 | 20.6 | 5.9 |
P-80 | 2200 | 25 | 700 | 47 | 16.22 | 2.46 | 25.4 | 10.9 |

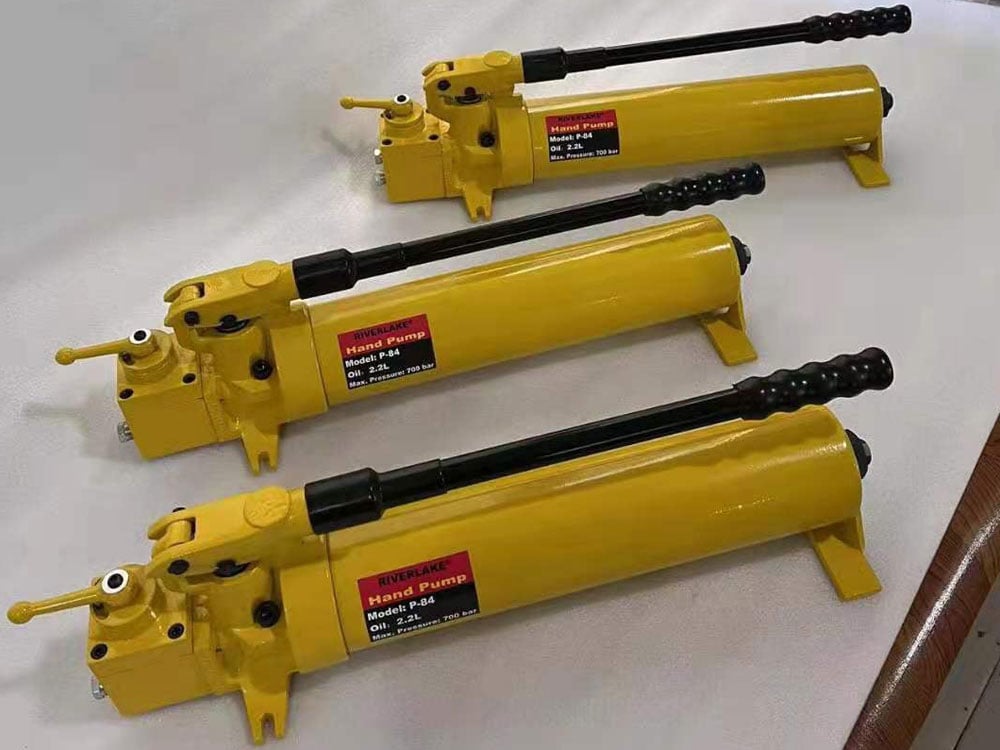

P-84 | 2200 | 25 | 700 | 47 | 16.22 | 2.46 | 25.4 | 13.2 |
P-462 | 7423 | 14 | 700 | 49 | 126.2 | 4.75 | 38.1 | 27 |
P-464 | 7423 | 14 | 700 | 49 | 126.2 | 4.75 | 38.1 | 27.7 |
