Description
Model: IPE-5010
Product Lines: Industrial Tools
- Quality welded frame for maximum strength and long life
- Effortless adjustment of the vertical daylight (10-ton models are manual)
- Roller head design is standard to allow movement and locking of the cylinder from side to side(10-ton, 25-ton, and 30-ton are manual)
- All models in the Quick Selection Chart have been matched to a pump, cylinder, hoses, and gauge, offering the complete package
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Specifications
Maximum Operating Pressure (bar) | 700 |
Capacity Class (tonnage) | 50 |
Maximum Vertical Daylight (mm) | 1233 |
Maximum Bed Width (mm) | 730 |
Power Source Type | Electric |
Pump Model Number | IPE-220 |
Cylinder Model Number | RC-5013 |
Cylinder Stroke (mm) | 330 |
Tool Feed Speed(mm/sec) | 20 |
Punching Speed(mm/sec) | 1.9 |
Weight (kg) | 495 |

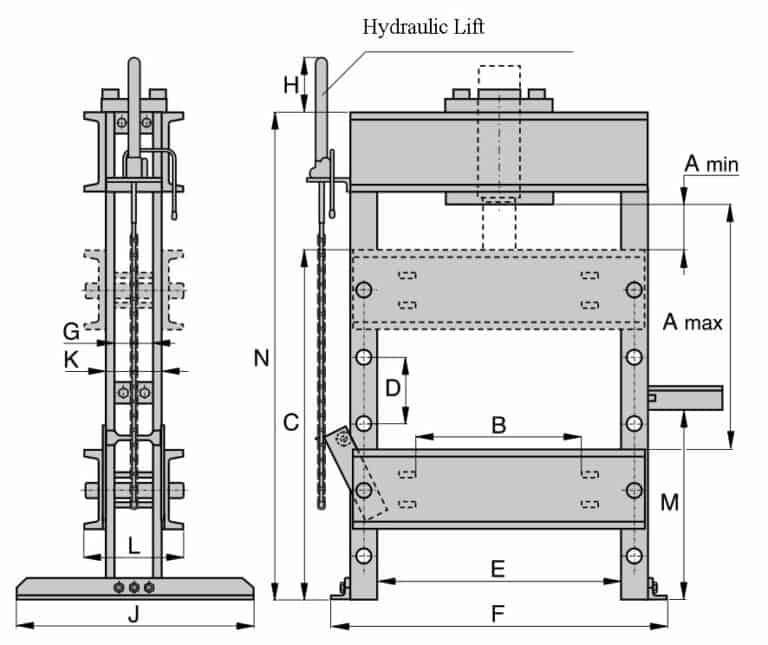

Dimensions
A(Max) | 1233 |
A(Min.) | 179 |
B | 476 |
C | 1371 |
D | 263 |
E | 730 |
F | 1085 |
G | 127 |
H | 222 |
J | 914 |
K | 184 |
L | 333 |
M | 781 |
N | 1930 |
Series Comparison
Model | Capacity/Ton | Pump | Hydraulic Cylinder Model | Cylinder Stroke/mm | Tool Feed Speed(mm/sec) | Punching Speed(mm/sec) | A(Max.) | A(Min.) | B | C | D | E | F | G | H | J | K | L | M | N | Weight/Kg |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IPE-1215 | 10 | IPE-220 | RC-1010 | 254 | 28 | 3.8 | 1016 | 62 | * | 1187 | 127 | 473 | 632 | * | * | 755 | 108 | 189 | 889 | 1320 | 135 |
IPH-1240 | 10 | P-392 | RC-1010 | 254 | 7.8 | 1.7 | 1016 | 62 | * | 1187 | 127 | 473 | 632 | * | * | 755 | 108 | 189 | 889 | 1320 | 71 |
IPH-1234 | 10 | P-84 | RR-1010 | 254 | 11 | 1.7 | 1016 | 62 | * | 1187 | 127 | 473 | 632 | * | * | 755 | 108 | 189 | 889 | 1320 | 85 |
IPE-2505 | 25 | IPE-220 | RC-256 | 152 | 16 | 1.6 | 1384 | 177 | * | 1447 | 301 | 736 | 1028 | 101 | 336 | 762 | 133 | 271 | 673 | 1930 | 274 |
IPE-2510 | 25 | IPE-220 | RC-2514 | 355 | 23 | 3.6 | 1384 | 177 | * | 1447 | 301 | 736 | 1028 | 101 | 336 | 762 | 133 | 271 | 673 | 1930 | 313 |
IPH-2531 | 25 | P-80 | RC-2514 | 355 | 4.9 | 0.7 | 1384 | 177 | * | 1447 | 301 | 736 | 1028 | 101 | 336 | 762 | 133 | 271 | 673 | 1930 | 281 |
IPE-3060 | 30 | IPE-220 | RR-3014 | 355 | 18 | 2.8 | 1384 | 177 | * | 1447 | 301 | 736 | 1028 | 101 | 336 | 762 | 133 | 271 | 673 | 1930 | 325 |
IPH-3080 | 30 | P-84 | RR-3014 | 355 | 3.6 | 0.7 | 1384 | 177 | * | 1447 | 301 | 736 | 1028 | 101 | 336 | 762 | 133 | 271 | 673 | 1930 | 301 |
IPE-5010 | 50 | IPE-220 | RC-5013 | 330 | 20 | 1.9 | 1233 | 179 | 476 | 1371 | 263 | 730 | 1085 | 127 | 222 | 914 | 184 | 333 | 781 | 1930 | 495 |
IPH-5030 | 50 | P-462 | RC-506 | 152 | 19 | 0.7 | 1233 | 179 | 476 | 1371 | 263 | 730 | 1085 | 127 | 222 | 914 | 184 | 333 | 781 | 1930 | 439 |
IPH-5031 | 50 | P-80 | RC-506 | 152 | 2.3 | 0.3 | 1233 | 179 | 476 | 1371 | 263 | 730 | 1085 | 127 | 222 | 914 | 184 | 333 | 781 | 1930 | 420 |
IPE-5005 | 50 | IPE-220 | RC-506 | 152 | 7.7 | 0.8 | 1233 | 179 | 476 | 1371 | 263 | 730 | 1085 | 127 | 222 | 914 | 184 | 333 | 781 | 1930 | 421 |
IPE-5060 | 50 | IPE-220 | RR-5013 | 330 | 20 | 1.9 | 1233 | 179 | 476 | 1371 | 263 | 730 | 1085 | 127 | 222 | 914 | 184 | 333 | 781 | 1930 | 499 |
IPH-5080 | 50 | P-464 | RR-5013 | 330 | 19 | 0.7 | 1233 | 179 | 476 | 1371 | 263 | 730 | 1085 | 127 | 222 | 914 | 184 | 333 | 781 | 1930 | 455 |
IPE-10010 | 100 | IPE-220 | RC-10010 | 254 | 14 | 1 | 1079 | 177 | 508 | 1295 | 296 | 889 | 1295 | 171 | 222 | 914 | 222 | 395 | 841 | 1930 | 776 |
IPH-10030 | 100 | P-462 | RC-10010 | 254 | 10 | 0.4 | 1079 | 177 | 508 | 1295 | 296 | 889 | 1295 | 171 | 222 | 914 | 222 | 395 | 841 | 1930 | 751 |
IPE-10060 | 100 | IPE-220 | RR-10013 | 330 | 11 | 1 | 1079 | 177 | 508 | 1295 | 296 | 889 | 1295 | 171 | 222 | 914 | 222 | 395 | 841 | 1930 | 816 |
IPH-10080 | 100 | P-464 | RR-1006 | 152 | 10 | 0.4 | 1079 | 177 | 508 | 1295 | 296 | 889 | 1295 | 171 | 222 | 914 | 222 | 395 | 841 | 1930 | 755 |
IPE-15065 | 150 | IPE-220 | RR-15013 | 330 | 9 | 1.4 | 1231 | 317 | 711 | 1384 | 254 | 1219 | 1706 | 231 | 333 | 1117 | 333 | 555 | 1212 | 2286 | 1794 |
IPE-20056 | 200 | IPE-220 | RR-20013 | 330 | 6.7 | 1 | 1231 | 317 | 711 | 1384 | 254 | 1219 | 1706 | 231 | 333 | 1117 | 333 | 555 | 1212 | 2286 | 1794 |
