Aluminum Hydraulic Cylinders

RIVERLAKE is one of the major manufacturers of aluminum hydraulic cylinders in China,our aluminum hydraulic cylinders use 7075-T6 light-weight high strength aluminum alloy as material, combine with high-strength coatings, seal design, and high-quality composite bearing materials, providing the strength of steel while overcoming the heavyweight. Aluminum is inherently less corrosive than steel which makes it a great material for use in many caustic environments. Our aluminum cylinders are also finished with a hard anodized treatment.

RIVERLAKE Lightweight Hydraulic Cylinders are available for sale in a complete range of variants, including single-acting spring return, double-acting, hollow plunger, or lock nut. With capacities ranging from 20 tons to 150 tons, our aluminum cylinders are suitable for lifting, pulling, pushing, and holding operations for most industrial and commercial jobs.

  • RAC-Series Lightweight Hydraulic Cylinders are single-acting, lightweight hydraulic cylinders with a high-strength return spring for rapid cylinder retraction, and an integral stop ring prevents plunger over-travel. RAC cylinders come equipped with bolt-on removable hardened steel saddles and base plates.
  • RAR-Series Lightweight Hydraulic Cylinders are double-acting for rapid and more controlled retraction.
  • RACL-Series Lightweight, Lock Nut Hydraulic Cylinders are single-acting, spring return and include a lock nut for safe mechanical load holding. RACL cylinders include a stop ring and bolt-on hardened steel saddle and base plate.
  • RACH-Series Lightweight, Hollow Hydraulic Cylinders are hollow, single-acting with a spring return.  RACH Cylinders include a steel base plate and bolt-on hardened steel removable saddle.
  • RARH-Series Lightweight, Hollow Hydraulic Cylinders are hollow and double-acting to exert both pull and push with hydraulic force. RARH Cylinders include a steel base plate and bolt-on hardened steel removable saddle.

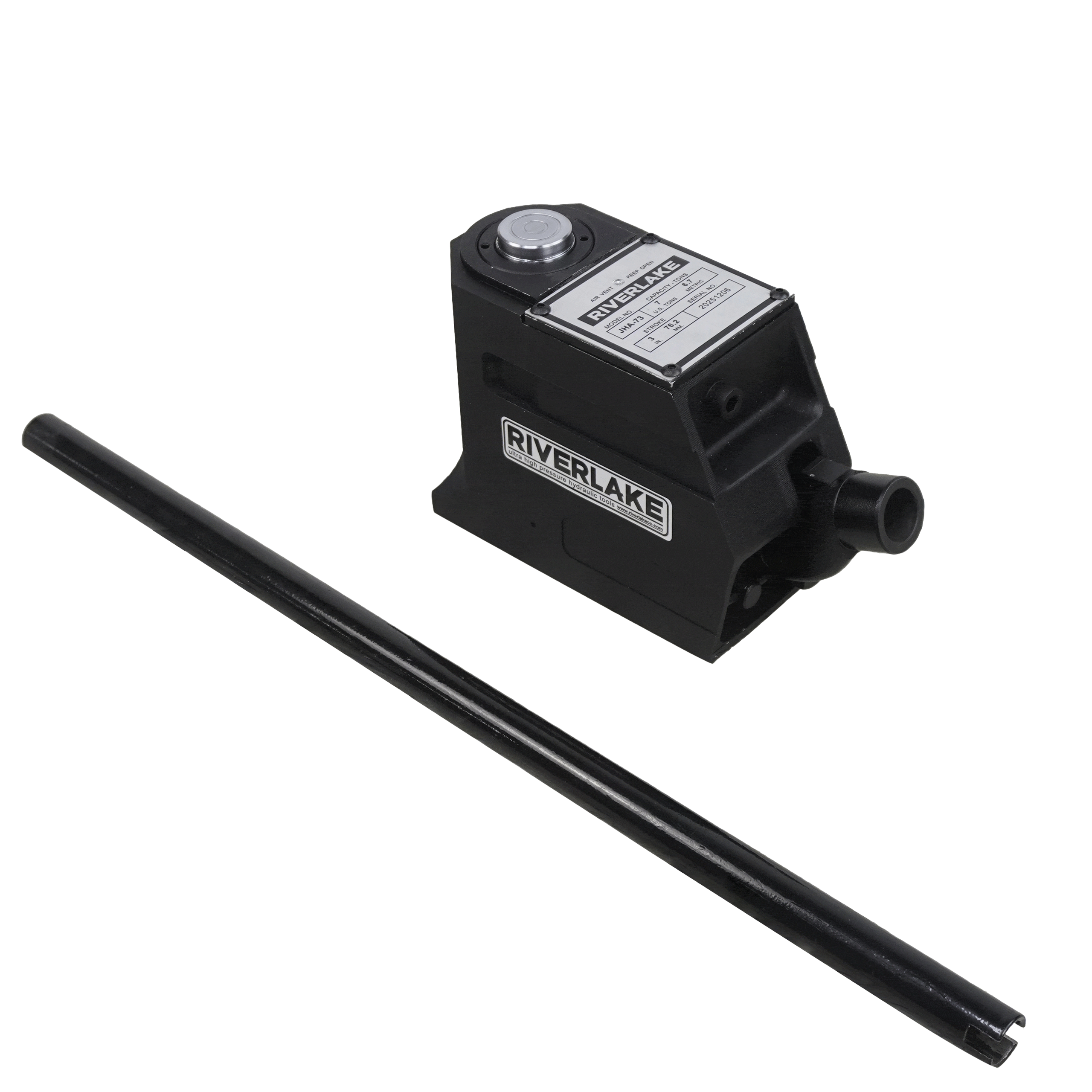

  • JHA-Series Aluminum Hydraulic Jacks are aluminum bottle jack,with a built-in manual hydraulic pump,the integral design requires no extra hydraulic pumps,hydraulic hoses for a convenient lifting operation.

All Series

All Products

Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

RACH202, 20 Ton Capacity, 50mm Stroke, Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

The RACH series is a spring return hollow piston rod aluminum cylinder. The hollow piston allows for a rod or cable to be inserted through the entire body length. They can be used in tensioning, load testing, bush extracting, and maintenance applications. All RACH-Series cylinders feature a hard chrome cylinder bore and piston rod for maximum corrosion resistance…

Get a Free Quote
Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

RACH204, 20 Ton Capacity, 100mm Stroke, Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

The RACH series is a spring return hollow piston rod aluminum cylinder. The hollow piston allows for a rod or cable to be inserted through the entire body length. They can be used in tensioning, load testing, bush extracting, and maintenance applications. All RACH-Series cylinders feature a hard chrome cylinder bore and piston rod for maximum corrosion resistance…

Get a Free Quote
Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

RACH206, 20 Ton Capacity, 150mm Stroke, Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

The RACH series is a spring return hollow piston rod aluminum cylinder. The hollow piston allows for a rod or cable to be inserted through the entire body length. They can be used in tensioning, load testing, bush extracting, and maintenance applications. All RACH-Series cylinders feature a hard chrome cylinder bore and piston rod for maximum corrosion resistance…

Get a Free Quote
Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

RACH208, 20 Ton Capacity, 200mm Stroke, Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

The RACH series is a spring return hollow piston rod aluminum cylinder. The hollow piston allows for a rod or cable to be inserted through the entire body length. They can be used in tensioning, load testing, bush extracting, and maintenance applications. All RACH-Series cylinders feature a hard chrome cylinder bore and piston rod for maximum corrosion resistance…

Get a Free Quote
Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

RACH2010, 20 Ton Capacity, 250mm Stroke, Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

The RACH series is a spring return hollow piston rod aluminum cylinder. The hollow piston allows for a rod or cable to be inserted through the entire body length. They can be used in tensioning, load testing, bush extracting, and maintenance applications. All RACH-Series cylinders feature a hard chrome cylinder bore and piston rod for maximum corrosion resistance…

Get a Free Quote
Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

RACH302, 30 Ton Capacity, 50mm Stroke, Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

The RACH series is a spring return hollow piston rod aluminum cylinder. The hollow piston allows for a rod or cable to be inserted through the entire body length. They can be used in tensioning, load testing, bush extracting, and maintenance applications. All RACH-Series cylinders feature a hard chrome cylinder bore and piston rod for maximum corrosion resistance…

Get a Free Quote
Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

RACH304, 30 Ton Capacity, 100mm Stroke, Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

The RACH series is a spring return hollow piston rod aluminum cylinder. The hollow piston allows for a rod or cable to be inserted through the entire body length. They can be used in tensioning, load testing, bush extracting, and maintenance applications. All RACH-Series cylinders feature a hard chrome cylinder bore and piston rod for maximum corrosion resistance…

Get a Free Quote
Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

RACH306, 30 Ton Capacity, 150mm Stroke, Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

The RACH series is a spring return hollow piston rod aluminum cylinder. The hollow piston allows for a rod or cable to be inserted through the entire body length. They can be used in tensioning, load testing, bush extracting, and maintenance applications. All RACH-Series cylinders feature a hard chrome cylinder bore and piston rod for maximum corrosion resistance…

Get a Free Quote
Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

RACH308, 30 Ton Capacity, 200mm Stroke, Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

The RACH series is a spring return hollow piston rod aluminum cylinder. The hollow piston allows for a rod or cable to be inserted through the entire body length. They can be used in tensioning, load testing, bush extracting, and maintenance applications. All RACH-Series cylinders feature a hard chrome cylinder bore and piston rod for maximum corrosion resistance…

Get a Free Quote
Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

RACH3010, 30 Ton Capacity, 250mm Stroke, Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

The RACH series is a spring return hollow piston rod aluminum cylinder. The hollow piston allows for a rod or cable to be inserted through the entire body length. They can be used in tensioning, load testing, bush extracting, and maintenance applications. All RACH-Series cylinders feature a hard chrome cylinder bore and piston rod for maximum corrosion resistance…

Get a Free Quote
Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

RACH602, 60 Ton Capacity, 50mm Stroke, Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

The RACH series is a spring return hollow piston rod aluminum cylinder. The hollow piston allows for a rod or cable to be inserted through the entire body length. They can be used in tensioning, load testing, bush extracting, and maintenance applications. All RACH-Series cylinders feature a hard chrome cylinder bore and piston rod for maximum corrosion resistance…

Get a Free Quote
Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

RACH604, 60 Ton Capacity, 100mm Stroke, Single Acting Hollow Plunger Aluminum Hydraulic Cylinders

The RACH series is a spring return hollow piston rod aluminum cylinder. The hollow piston allows for a rod or cable to be inserted through the entire body length. They can be used in tensioning, load testing, bush extracting, and maintenance applications. All RACH-Series cylinders feature a hard chrome cylinder bore and piston rod for maximum corrosion resistance…

Get a Free Quote
