Description
Series: TMS
Product Lines: Industrial Tools
- It is suitable for the construction site of nut disassembly and assembly in a narrow space, light, and convenient for manual operation.
- The planetary gear structure produces large torque output, and the reaction support arm can be adjusted arbitrarily in 360°.
- Interchangeable sockets of different specifications are suitable for a variety of large-diameter bolts and nuts.
- The smallest tool diameter produces the largest torque output.
- The reaction feet can be customized according to the actual working conditions of the user
- Use with RIVERLAKE torque wrench to get higher torque accuracy
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

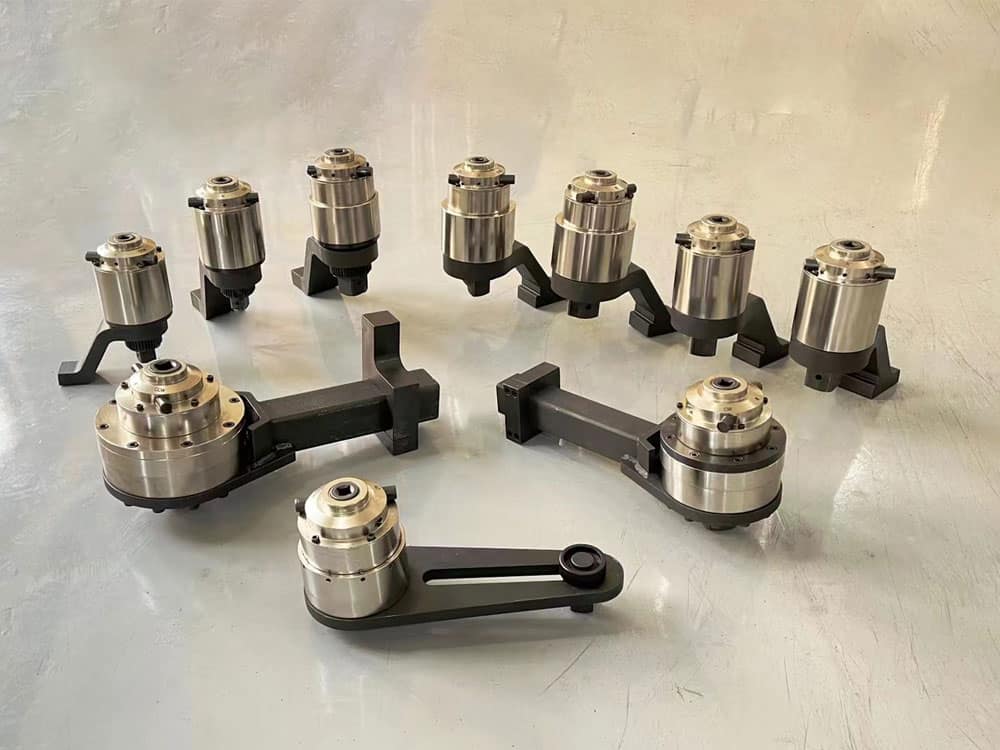

Image Gallery
Torque Multiplier Selection Table
| Model | Torque Range(Nm) | Bolt Range | Nut Range | Torque Ratio | Input Square Drive | Output Square Drive | Weight/Kg |
|---|---|---|---|---|---|---|---|
| TMS15 | 1500 | M20-M30 | S30-S46 | 5:1 | 1/2” | 1” | 2.6 |
| TMS20 | 2000 | M22-M36 | S32-S55 | 16:1 | 1/2” | 1” | 3.9 |
| TMS35 | 3500 | M30-M45 | S46-S70 | 18:1 | 1/2” | 1” | 5.5 |
| TMS42 | 4200 | M33-M48 | S50-S75 | 20:1 | 1/2” | 1 1/2” | 6 |
| TMS55 | 5500 | M36-M52 | S55-S80 | 22:1 | 1/2” | 1 1/2” | 7.5 |
| TMS75 | 7500 | M42-M60 | S65-S90 | 26:1 | 1/2” | 1 1/2” | 10 |
| TMS100 | 10000 | M52-M72 | S80-S105 | 60:1 | 1/2” | 1 1/2” | 17 |
| TMS150 | 15000 | M60-M80 | S90-S115 | 75:1 | 1/2” | 2” | 25 |
| TMS-200 | 20000 | M72-M95 | S105-S135 | 90:1 | 1/2” | 2” | 31 |
