Description

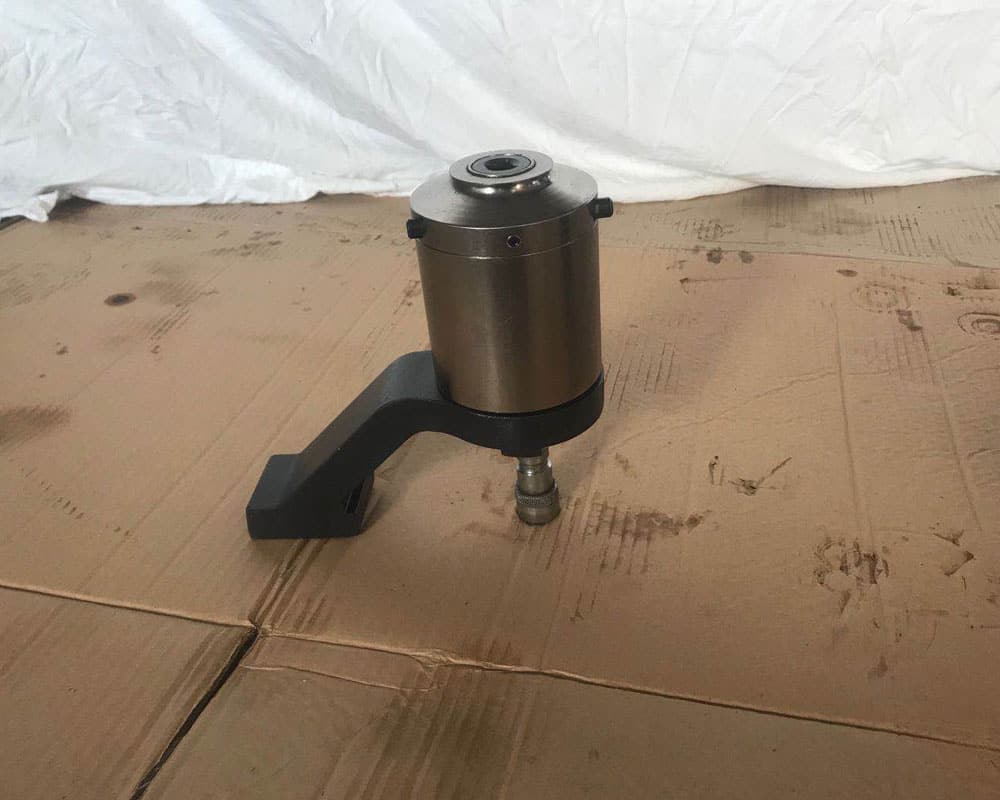

Series: HT-52
Product Lines: Industrial Tools
- The body size is moderate, the operation is convenient and safe
- Repeatability accuracy better than ±4%
- With anti-rebound device
- Rugged construction, easy maintenance, and long service life
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Dimensions
Torque Multiplier Selection Table
Model | Torque Range(Nm) | Torque Range(lbf.ft) | Torque Ratio | Input Square Drive | Output Square Drive | Dimension A(mm) | Dimension B(mm) | Dimension C(mm) | Dimension D(mm) | Body Weight(Kg) | Reaction Arm Weight(Kg) |
---|---|---|---|---|---|---|---|---|---|---|---|
HT-52/22.1 | 1000 | 740 | 22:1 | 3/8” | 3/4” | 52 | 139 | 131 | 175 | 1.4 | 0.85 |
HT-52/22.2 | 1000 | 740 | 22:1 | 1/2” | 3/4” | 52 | 139 | 131 | 175 | 1.4 | 0.85 |
HT-52/22.3 | 1000 | 740 | 22:1 | 3/8” | 3/4” | 52 | 150.1 | 131 | 186.3 | 1.6 | 0.85 |
HT-52/22.4 | 1000 | 740 | 22:1 | 1/2” | 3/4” | 52 | 150.1 | 131 | 186.3 | 1.6 | 0.85 |
HT-52/4.5 | 1000 | 740 | 4.5:1 | 1/2” | 3/4” | 52 | 115 | 131 | 150.3 | 1.02 | 0.85 |
