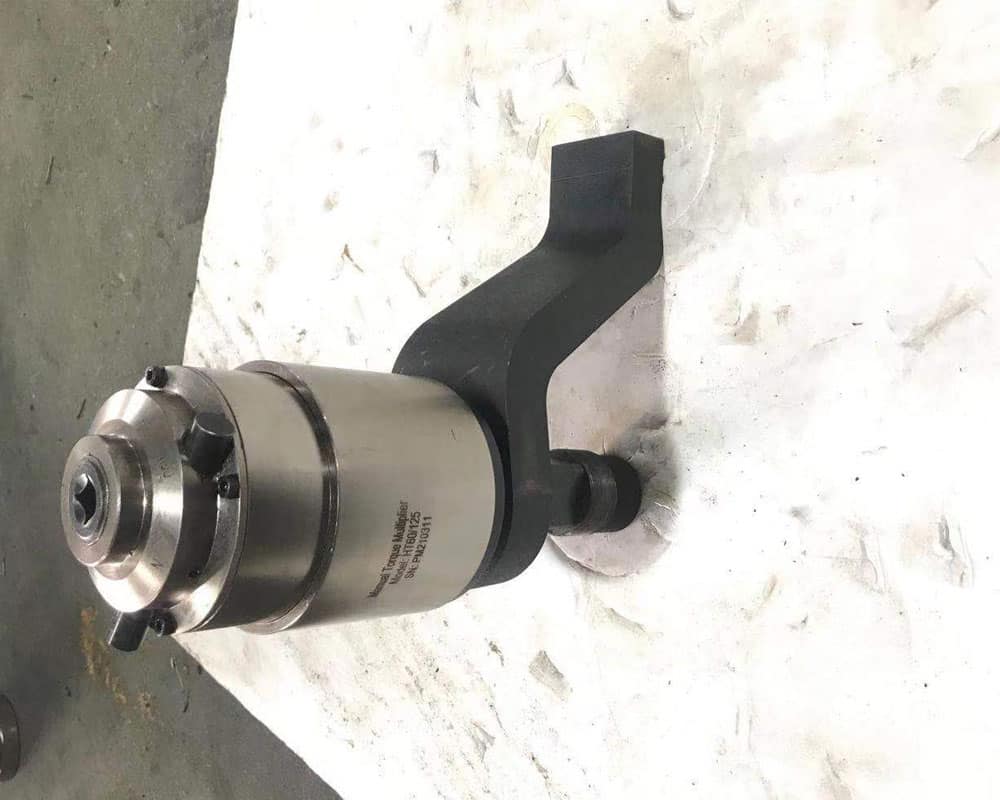

Description
Series: HT
Product Lines: Industrial Tools
- Reduced diameter allows better access, particularly on pipe flanges.
- Reaction taken from the high-strength spline.
- Reaction feet can slide on the spline to allow for sockets of various lengths.
- Anti Wind-Up Ratchet is available on all models (except 5:1 ratios), allowing safer and more practical operation.
- HT45 has an integral angle protractor for easy torque and angle tightening.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

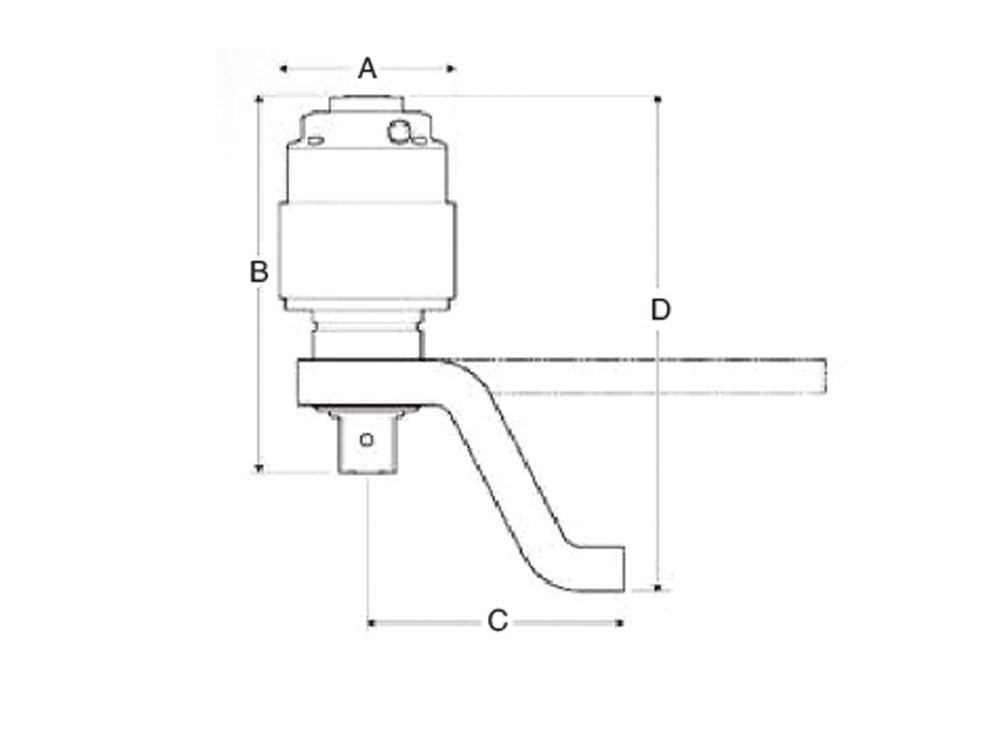

Dimensions
Torque Multiplier Selection Table
Model | Torque Range(Nm) | Torque Range(lbf.ft) | Torque Ratio | Input Square Drive | Output Square Drive | Dimension A(mm) | Dimension B(mm) | Dimension C(mm) | Min Dimension D(mm) | Max Dimension D(mm) | Body Weight(Kg) | Reaction Arm Weight(Kg) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
HT30/5 | 3000 | 2200 | 5:1 | 3/4” | 1” | 108 | 192 | 140 | 224.2 | 252.4 | 5 | 2 |
HT30/15 | 3000 | 2200 | 15:1 | 1/2” | 1” | 108 | 210.9 | 140 | 243.2 | 271.4 | 7 | 2 |
HT30/25 | 3000 | 2200 | 25:1 | 1/2” | 1” | 108 | 210.9 | 140 | 243.2 | 241.4 | 7 | 2 |
HT45/26 | 4500 | 3300 | 26:1 | 1/2” | 1” | 108 | 228 | 174 | * | 322 | 8.7 | 4 |
HT60/25 | 6000 | 4400 | 25:1 | 1/2” | 1 1/2” | 119 | 256 | 174 | 311.5 | 337 | 10.6 | 4 |
HT60/125 | 6000 | 4400 | 125:1 | 1/2” | 1 1/2” | 119 | 284.7 | 174 | 340.5 | 366 | 12.1 | 4 |
