Description
Series: HT
Product Lines: Industrial Tools
- Electronic torque transducers can be fitted for precise torque monitoring.
- True torque multiplication guaranteed better than +/-4%.
- High ratios allow the use of a small torque wrench, multipliers can be used where access is limited.
- Anti Wind-Up Ratchet available on models of 25:1 ratio and above.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

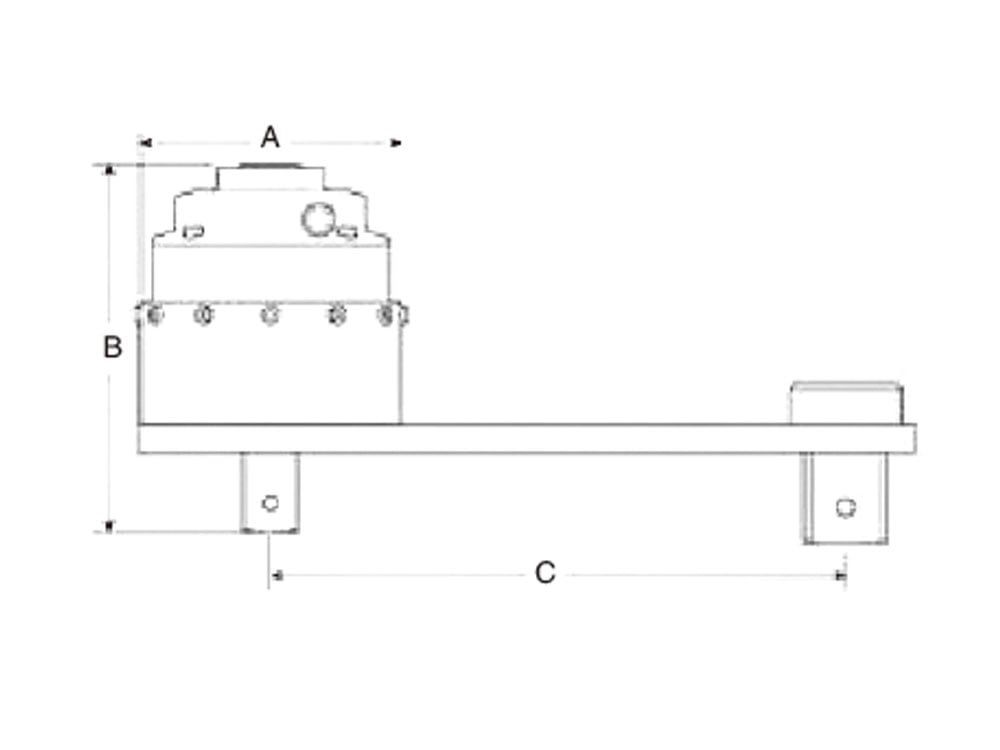

Dimensions

Torque Multiplier Selection Table
Model | Torque Range(Nm) | Torque Range(lbf.ft) | Torque Ratio | Input Square Drive | Output Square Drive | Dimension A(mm) | Dimension B(mm) | Min Dimension C(mm) | Max Dimension C(mm) | Body Weight(Kg) | Reaction Arm Weight(Kg) |
---|---|---|---|---|---|---|---|---|---|---|---|
HT7/5 | 6000 | 4500 | 5:1 | 3/4” | 1 1/2” | 144 | 174.8 | 146 | 333 | 8.1 | 6.3 |
HT7/25 | 6000 | 4500 | 25:1 | 1/2” | 1 1/2” | 144 | 201.1 | 146 | 333 | 10.7 | 6.3 |
HT7/25SMD | 6000 | 4500 | 125:1 | 1/2” | 1 1/2” | 130 | 201.1 | 163.4 | 337 | 10.6 | 4.9 |
HT7/125 | 6000 | 4500 | 25:1 | 1/2” | 1 1/2” | 144 | 226 | 146 | 333 | 12.2 | 6.3 |
HT7/125SMD | 6000 | 4500 | 125:1 | 1/2” | 1 1/2” | 130 | 226 | 163.4 | 337 | 12.1 | 4.9 |
HT9/25 | 9500 | 7000 | 25:1 | 3/4” | 1 1/2” | 184 | 200.1 | 171 | 351 | 17.4 | 8.3 |
HT9/125 | 9500 | 7000 | 125:1 | 1/2” | 1 1/2” | 184 | 220.1 | 171 | 351 | 18.9 | 8.3 |
HT11/25 | 20000 | 14700 | 25:1 | 3/4” | 2 1/2” | 212 | 265.6 | * | 500 | 30.1 | 13.3 |
HT11/125 | 20000 | 14700 | 125:1 | 1/2” | 2 1/2” | 212 | 293.4 | * | 500 | 32.1 | 13.3 |
HT12/875 | 34000 | 25000 | 87.5:1 | 1/2” | 2 1/2” | 240 | 337 | * | * | 41.5 | 6.5 |
HT13/125 | 47500 | 35000 | 125:1 | 3/4” | 2 1/2” | 315 | 379 | * | * | 95.2 | 6.9 |
