Description

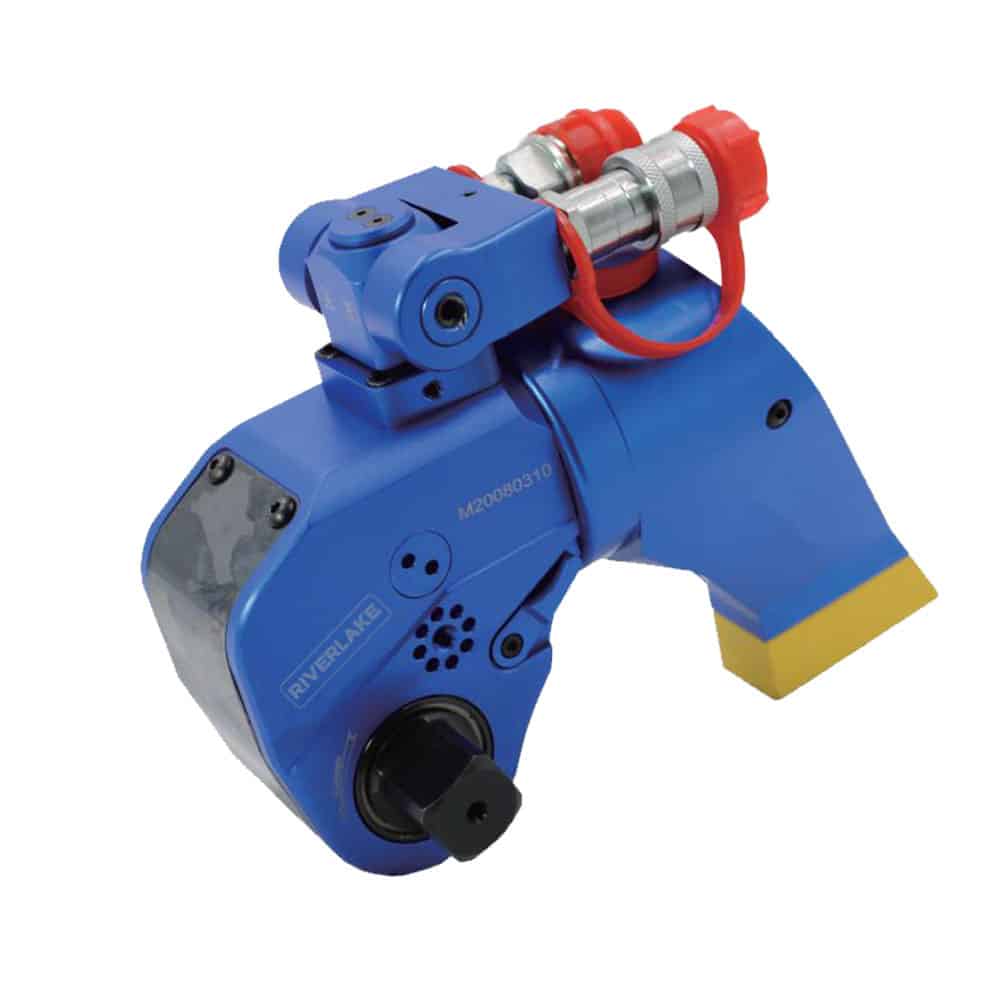

Model: 5MXT
Series: MXT
Product Lines: Industrial Tools
- 70Mpa Max working pressure and the accuracy keep within ±3%
- Altogether 12 models with the range from 110N.m to 140882N.m, which covers the most bolt size
- The 360°×180°degree swivel is free to operate with no space limitation
- The square drive operates with high intense socket and is suitable for a large range of bolts
- 360-degree adjustable reaction arm allows placing in any support point
- Compact design with the raw material of advanced aluminum-titanium alloy, highly intense
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Specifications
Torque Wrench Model Number | 5MXT |
Torque Range(Nm) | 745-7451 |
Square Drive Size(inch) | 1-1/2” |
Weight(Kg) | 7.6 |
Dimensions
Series Comparison
Torque Wrench Model Number | Torque Range(Nm) | Square Drive Size(inch) | Dimension(mm)A | Dimension(mm)B | Dimension(mm)C | Dimension(mm)R | Dimension(mm)E | Dimension(mm)F | Dimension(mm)G | Weight(Kg) |
---|---|---|---|---|---|---|---|---|---|---|
07MXT | 110-1100 | 3/4” | 108.1 | 139.3 | 110.8 | 20.5 | 42 | 65.8 | 76.2 | 1.8 |
1MXT | 188-1882 | 3/4” | 133 | 182 | 130 | 26 | 52 | 77 | 96 | 2.5 |
3MXT | 447-4466 | 1” | 165 | 249 | 170 | 34 | 70 | 98 | 127 | 4.9 |
5MXT | 745-7451 | 1 1/2” | 184 | 286 | 202 | 39 | 81 | 125 | 149 | 7.6 |
8MXT | 1073-10732 | 1 1/2” | 207 | 326 | 228 | 47 | 90 | 134 | 172 | 11.2 |
10MXT | 1536-15359 | 1 1/2” | 216 | 336 | 237 | 51 | 100 | 144 | 181 | 13.5 |
15MXT | 2011-20108 | 2 1/2” | 241 | 391 | 273 | 55 | 110 | 164 | 206 | 20.8 |
20MXT | 2639-26392 | 2 1/2” | 256 | 433 | 287 | 59 | 120 | 187 | 221 | 25.9 |
25MXT | 3540-35397 | 2 1/2” | 293 | 464 | 323 | 67 | 138 | 206 | 258 | 34.4 |
35MXT | 4874-48740 | 2 1/2” | 315 | 494 | 351 | 79 | 153 | 217 | 279 | 50 |
50MXT | 7066-70660 | 2 1/2” | 326 | 528 | 376 | 81 | 162 | 226 | 291 | 85 |
110MXT | 14088-140882 | 4” | 473 | 758 | 520 | 115 | 210 | 307 | 415 | 220 |
