20SGT, 2000-20000Nm, Super Thin Low Profile Hydraulic Torque Wrench

RIVERLAKE low-profile hollow hydraulic torque wrenches are made of high-strength aluminum- a strong and durable titanium alloy. Our high-torque hydraulic wrenches come with a max torque range of 90000Nm for your selection. Adopting a precision ratchet and power mechanical design, the wrench's accuracy is as high as ±3%.

Send us inquiry

For inquiries about our products, please email us your detailed requirements and we will be in touch within 24 hours.

Send Email

Became a distributor

Please email us your company information and we will be in touch within 24 hours.

Description

Model: 20SGT

Series: SGT

Product Lines: Industrial Tools

70Mpa Max working pressure and the accuracy keep within ±3%;
Small dimensions and compact design for confined spaces;
An integrated pressure relief valve ensures a safer working environment;
Generously sized oil channels in the device, provide minimal heating under continuous load;
Various inserts are available as an accessories, for flexible working;
Unique notch design, suitable for working conditions with small clearances such as blowout preventers, Christmas trees, valves, etc;

Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Torque Wrench Specifications

Torque Wrench Model Number	20SGT
Torque Range(Nm)	1850-18500/2000-20000
Bolt Size(s)	70-95/100-115
Drive Unit Weight(Kg)	5.5
Working Head Weight(Kg)	5.8/6.8

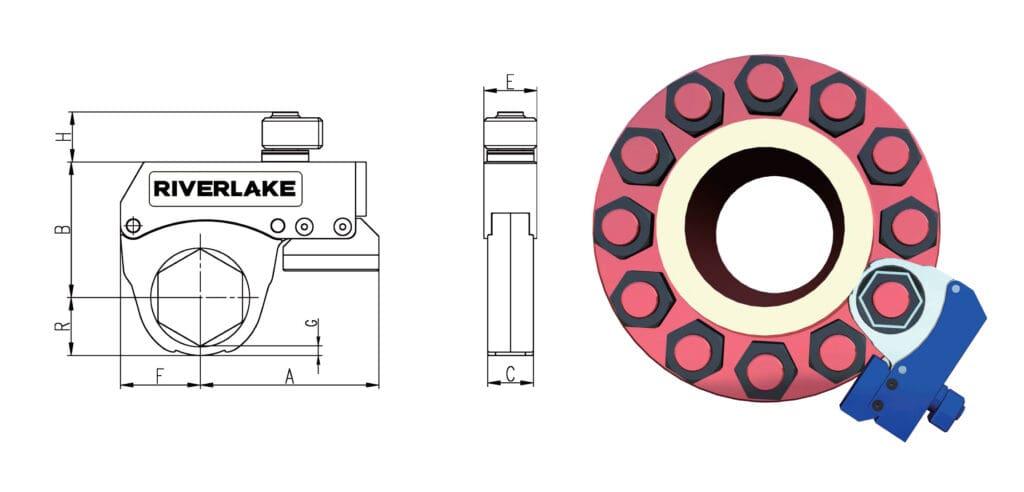

Torque Wrench Dimensions

Torque Wrench Drive Unit & Cassette Series Specification

Drive Unit Model	Minimum Torque(N.m)	Max. Torque(N.m)	Hexagon Range(mm)	Power Head Weight (Kg)	Work Head Weight (Kg)	A(mm)	B(mm)	C(mm)	E(mm)	F(mm)
3SGT	203	2030	19-41	1.2	1.3	148	109	28	40	57
3SGT	303	3030	46-60	1.2	1.4	148	109	28	40	57
6SGT	560	5600	41-65	2.2	1.5	168	127	35	50	83
6SGT	660	6600	70-80	2.2	1.7	168	127	35	50	83
10SGT	986	9860	41-65	3.3	3.4	216	148	46	66	86
10SGT	1200	12000	70-95	3.3	3.8	216	148	46	66	86
20SGT	1850	18500	70-95	5.5	5.8	282	191	56	82	86
20SGT	2000	20000	100-115	5.5	6.8	282	191	56	82	86
30SGT	3000	30000	100-115	11.5	15.8	341	237	72	105	116
40SGT	4000	40000	115-135	12.5	16.8	341	237	72	105	116
40SGT	4509	45090	135-155	12.5	17.5	341	237	72	105	116
60SGT	6000	60000	115-165	13.8	18.9	374	265	88	130	131
70SGT	7000	70000	130-180	30	32	365	278	91.8	135	149
90SGT	9000	90000	145-210	36.8	41.6	382	275	102	150	174

Cassette Model	R	G	Cassette Model	R	G	Cassette Model	R	G	Cassette Model	R	G	Cassette Model	R	G	Cassette Model	R	G
3SG-19	24	13	6SG-34	33	13	10SG-41	42	18	20SG-50	56	27	30SG–65	60	22	40SG-85	72	22
3SG-22	24	11	6SG-36	33	12	10SG-46	42	15	20SG-55	56	24	30SG–70	60	20	40SG-90	72	22
3SG-27	24	8	6SG-41	36	12	10SG-50	42	13	20SG-60	56	21	30SG–75	63	20	40SG-95	77	22
3SG-30	26	9	6SG-46	39	12	10SG-55	46	14	20SG-65	56	18	30SG–80	63	17	40SG-100	77	19
3SG-32	26	8	6SG-50	41	12	10SG-60	48	13	20SG-70	56	15	30SG–85	68	19	40SG-105	83	22
3SG-34	28	8	6SG-55	43	11	10SG-65	51	13	20SG-75	59	15	30SG–90	68	16	40SG-110	83	19
3SG-36	28	7	6SG-60	47	12	10SG-70	54	13	20SG-80	62	15	30SG–95	72	17	40SG-115	89	22
3SG-41	31	7	6SG-65	50	12	10SG-75	56	13	20SG-85	65	15	30SG–100	72	14	40SG-117	89	21
3SG-46	34	7	6SG-70	53	12	10SG-80	59	12	20SG-90	68	16	30SG–105	77	16	40SG-120	89	19
3SG-50	37	8	6SG-75	56	12	10SG-85	62	12	20SG-95	70	15	30SG–110	77	14	40SG-125	95	23
3SG-55	40	8	6SG-80	58	12	10SG-90	65	13	20SG-100	73	15	30SG–115	83	17	40SG-130	95	20
3SG-60	43	8				10SG-95	67	12	20SG-105	76	15	30SG–117	83	15	40SG-135	98	20
						10SG-100	71	13	20SG-110	79	15	30SG–120	89	20	40SG-140	104	23
						10SG-105	74	13	20SG-115	83	16	30SG–125	89	17	40SG-145	104	20
									20SG-117	83	15	30SG–130	93	18	40SG-150	110	23
												30SG–135	93	15	40SG-155	110	20
															40SG-160	122	30
															40SG-165	122	27
															40SG-170	122	24
															40SG-175	122	21
