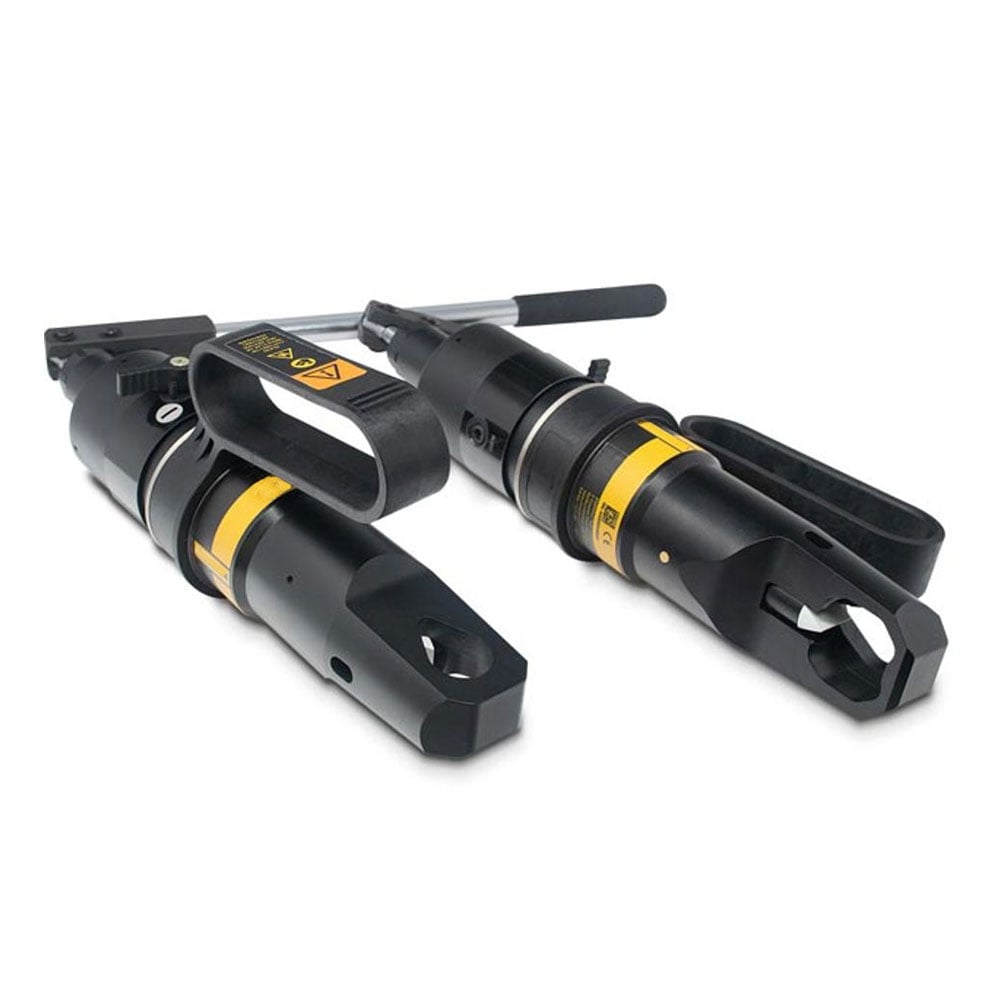

NSC1927, M12-M18, Integral Hydraulic Nut Splitters

RIVERLAKE integral hydraulic nut splitters are a simple, fast, safe, and efficient tool to remove the bolt and nut. In the open-air high temperature or corrosive environment, the bolt is usually bitten by rust and damaged by smashing, It is very difficult to remove them In the past. With the help of our hydraulic bolt cutters, engineers are able to remove nuts ranging from M12 to M22 easily under different work conditions.

Send us inquiry

For inquiries about our products, please email us your detailed requirements and we will be in touch within 24 hours.

Send Email

Became a distributor

Please email us your company information and we will be in touch within 24 hours.

Description

Model: NSC1927

Series: NSC

Product Lines: Industrial Tools

Powered by a built-in hydraulic hand pump, the NSC-Series is a ready-to-use tool – no need for a hose, separate hand pump, or couplings. Useful for subsea applications and working at heights.
Quick and easy cutting tip replacement
Drop-tested revolving anchor point and safety lanyard
Revolving composite handle for vibration and shock isolation
Nut Splitters include a set of hexagon keys and the following spare parts:
– cutting tip
– tip retention screw
– spare alignment screw
Standard Safety Lanyard with each nut splitter. Includes steel cable with carabiners.
The maximum allowable hardness to split is ASTM A194 Gr 2H. Not to be used on square nuts or stainless steel.

Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Specifications

Max Cutting Force/Ton	12
Bolt Range	M12-M18
Hexagon Nut Range/mm	19-27
Replacement Blade No.	NSH1927CTK
Weight (kg)	5.8

Dimensions

Dimension A/mm	353
Dimension B/mm	*
Dimension C/mm	152
Dimension D/mm	81
Dimension H/mm	18
Dimension N/mm	11.5
Dimension S/mm	24.5
Dimension T/mm	26.5
Dimension W/mm	53.5

Integral Hydraulic Nut Splitters Dimension

Series Comparison

Model	Max Cutting Force/Ton	Oil Capacity/cm3	Bolt Range	Hexagon Nut Range/mm	Replacement Blade No.	Weight/Kg	Dimension A/mm	Dimension B/mm	Dimension C/mm	Dimension D/mm	Dimension H/mm	Dimension N/mm	Dimension S/mm	Dimension T/mm	Dimension W/mm
NSC1927	12	*	M12-M18	19-27	NSH1927CTK	5.8	353	*	152	81	18	11.5	24.5	26.5	53.5
NSC2432	15	*	M16-M22	24-32	NSH2432CTK	6.3	370	*	152	81	25	9	26.6	32	57.5
NSH1927	12	46	M12-M18	19-27	NSH1927CTK	3.5	258	213	152	81	18	11.5	24.5	26.5	53.5
NSH2432	15	46	M16-M22	24-32	NSH2432CTK	4	265	220	152	81	25	9	26.5	32	57.5
NSH3646	20	80	M24-M30	36-46	NSH3646CTK	6.9	290	239	169	93	34	16	39	44	83.5
NSH5065	36	230	M33-M42	50-65	NSH5065CTK	10.9	377	322	210	185	45	23	49.5	52	108
NSH6575	50	328	M42-M48	65-75	NSH6575CTK	24.5	396	345	220	202	54	27	61	65	135
