Description
Model: TMBS 50E
Product Lines: Industrial Tools
• Separator placement between the bearing and shoulder on the shaft is easily done.
• The spring-loaded center point of the spindle allows easy puller centering and minimizes the risk of shaft damage.
• The mechanical spindle generates dismounting force.
• A firm grip behind the bearing’s inner ring reduces the force required to dismount the bearing.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Specifications
Maximum Operating Pressure (bar) | 700 |
Capacity(Ton) | 3 |
Reach(mm) | 110 |
Spread(mm) | 7-50 |
Stroke(mm) | * |
Weight(Kg) | 1.8 |

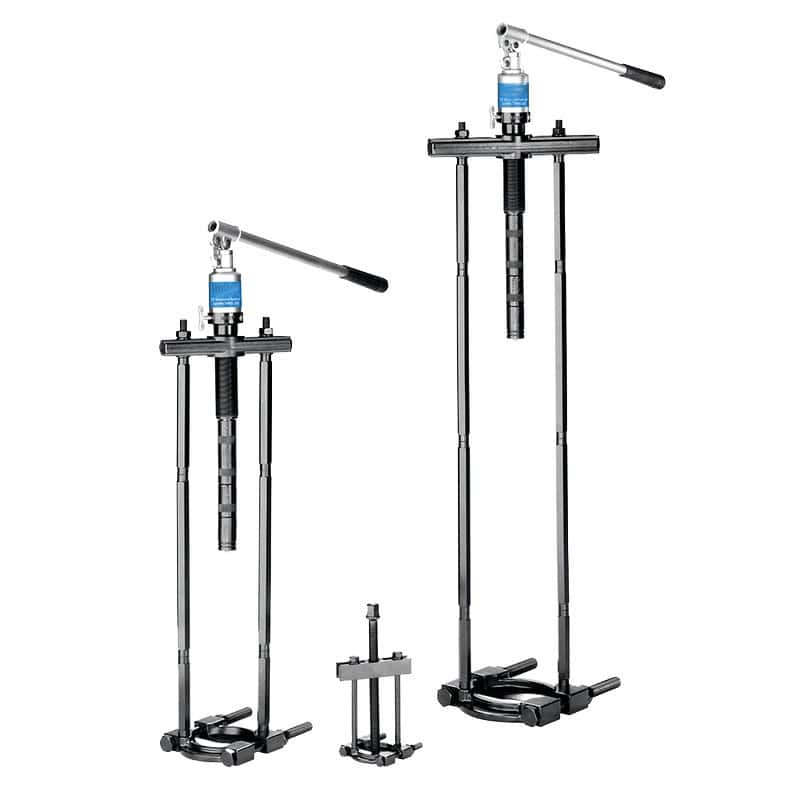

Series Comparison
Model | Capacity/Ton | Reach/mm | Spread/mm | Stroke/mm | Weight/Kg |
---|---|---|---|---|---|
TMBS 50E | 3 | 110 | 7-50 | * | 1.8 |
TMBS 100E | 10 | 120-816 | 20-100 | 80 | 13.5 |
TMBS 150E | 10 | 120-816 | 35-150 | 80 | 17 |
