Description

Model: BHP5751G

Series: BHP

Product Lines: Industrial Tools

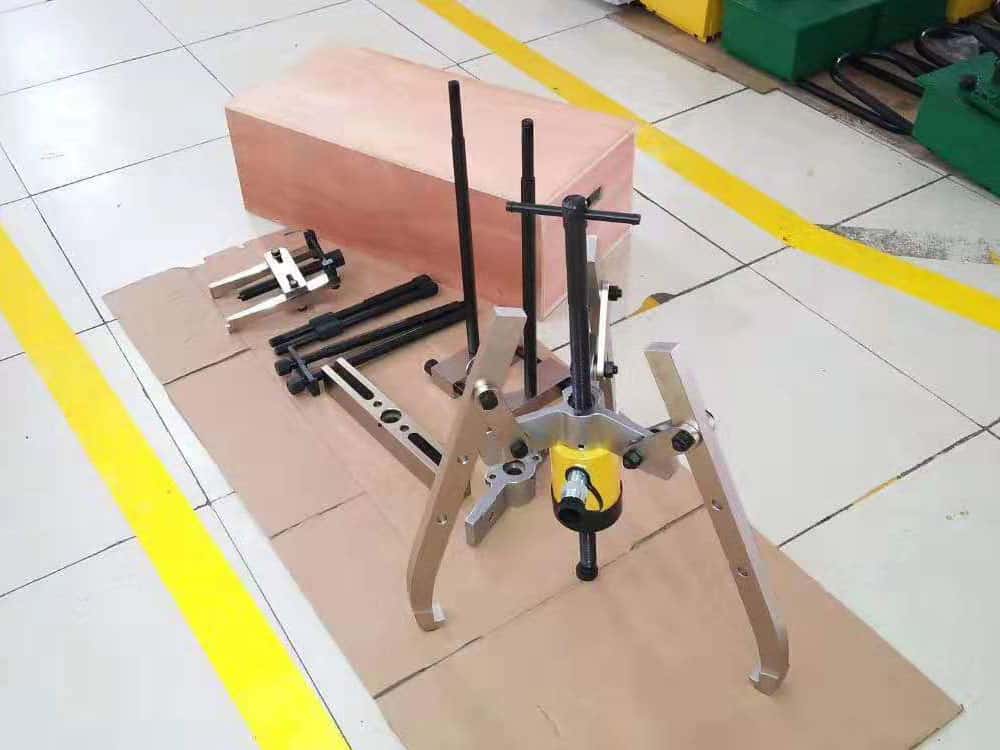

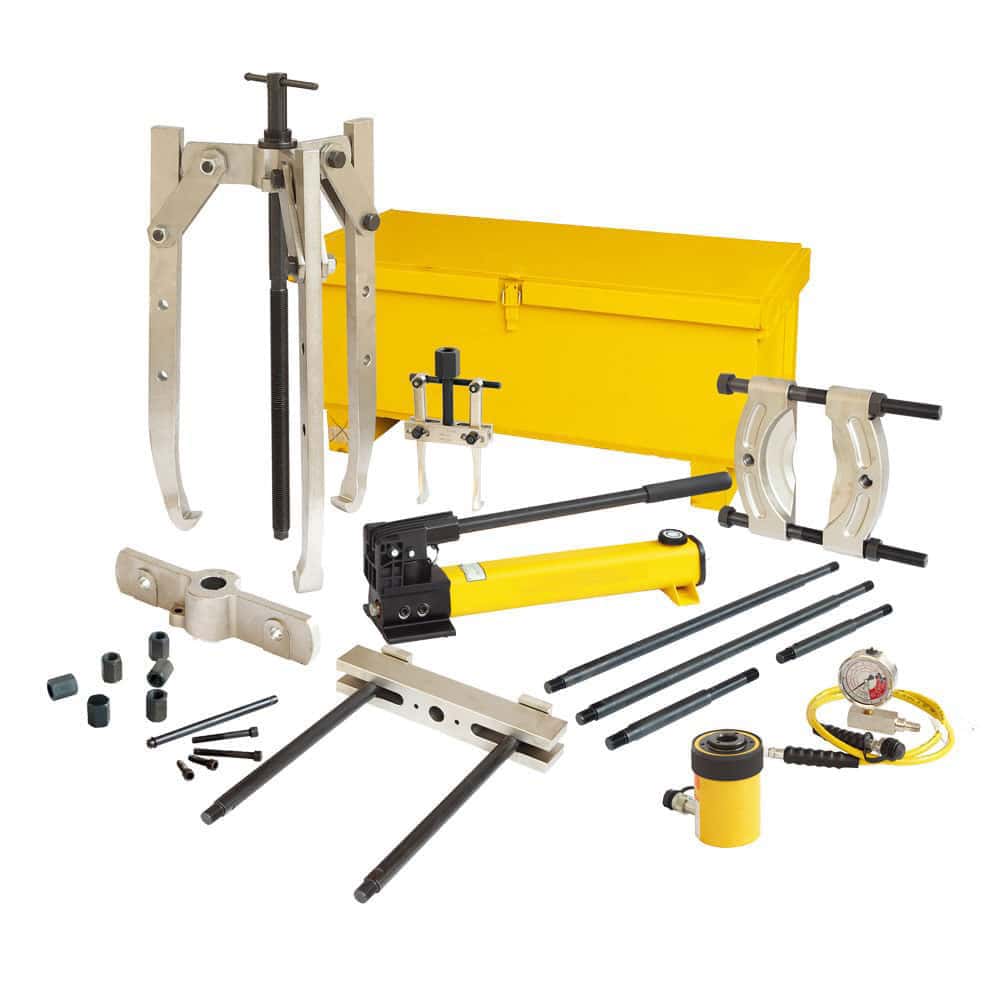

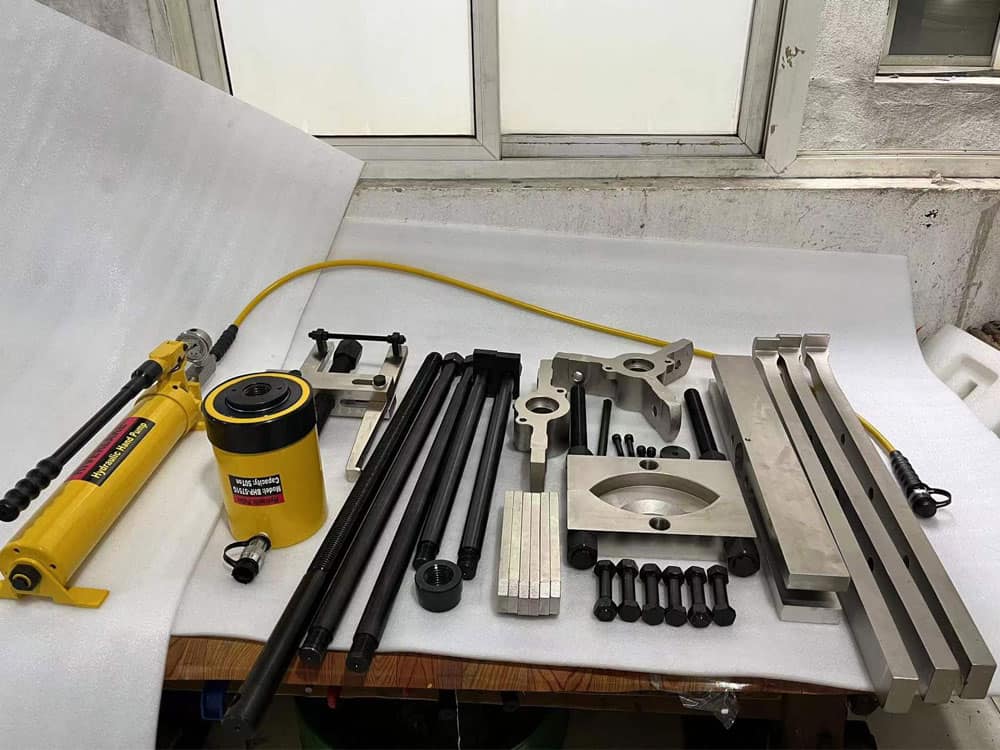

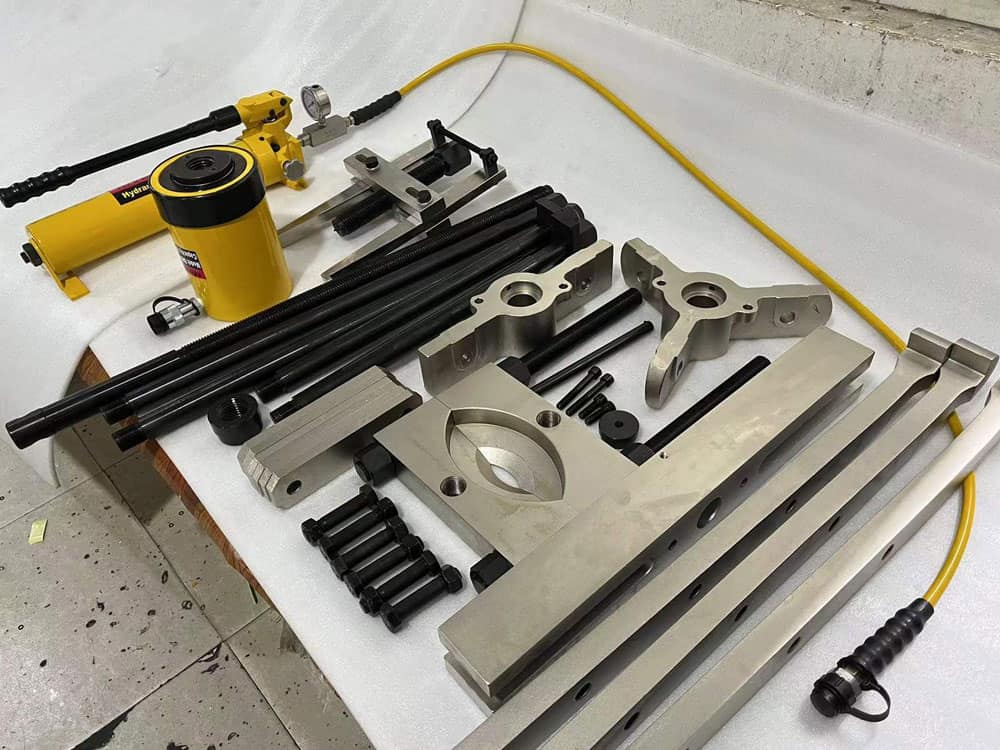

  • All master puller sets include a grip puller, a cross-bearing puller, a bearing cup puller, and a bearing puller attachment, which can be ordered separately.

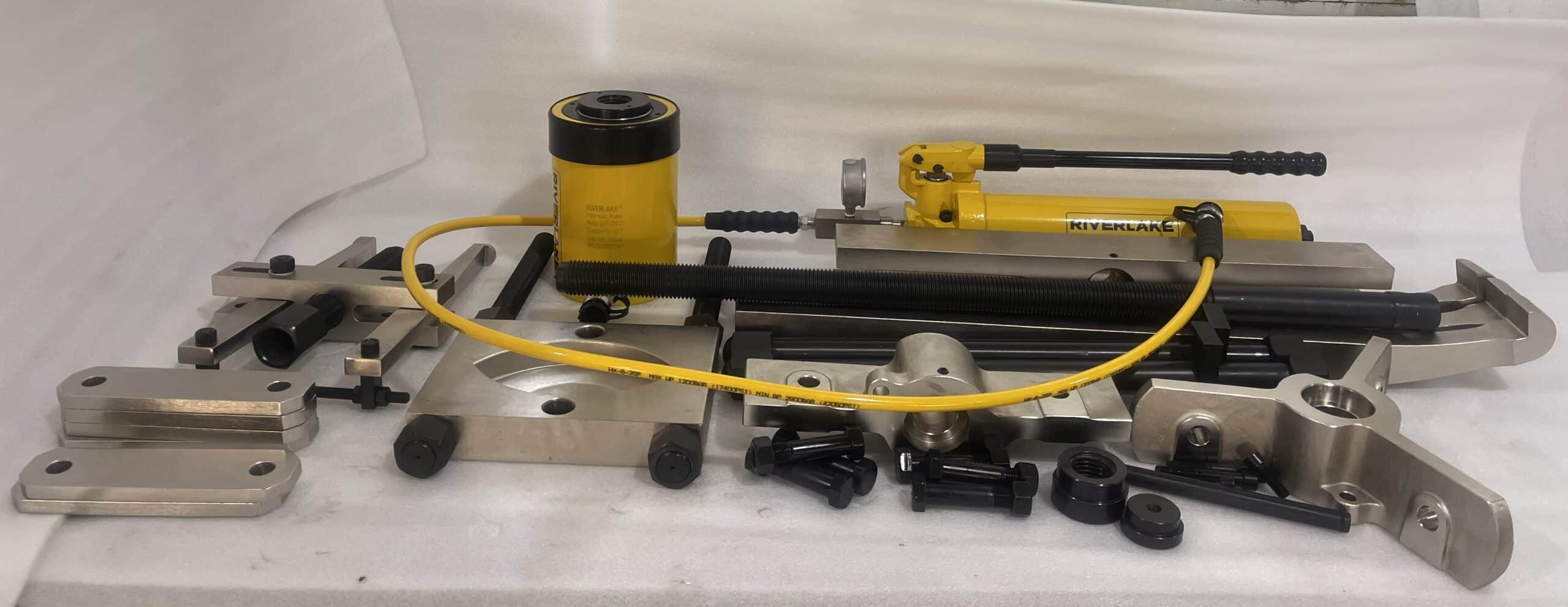

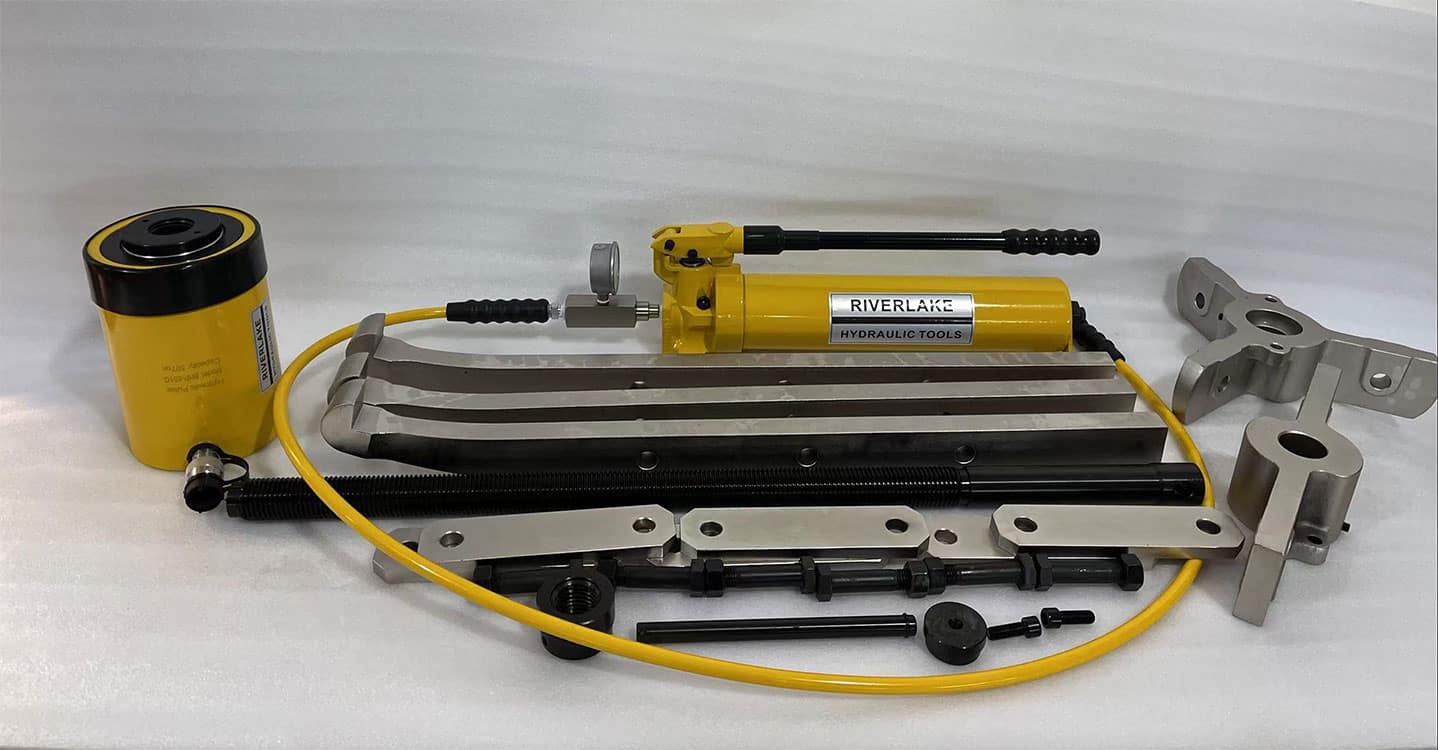

  • Supplied with a fully hydraulic set including pump, hose, cylinder, gauge, gauge adaptor, and wooden case.
  • High-quality, forged steel components provide superior reliability and service.
  • Sets include speed crank and adjusting screw for fast contact to work before hydraulics are applied
  • These hydraulic pullers eliminate time-consuming and unsafe hammering, heating, or prying. Damage to parts is minimized through the use of controlled hydraulic power.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Specifications

Maximum Operating Pressure (bar)700
Capacity(Ton)50
Power SourceP-80 Hydraulic Hand Pump

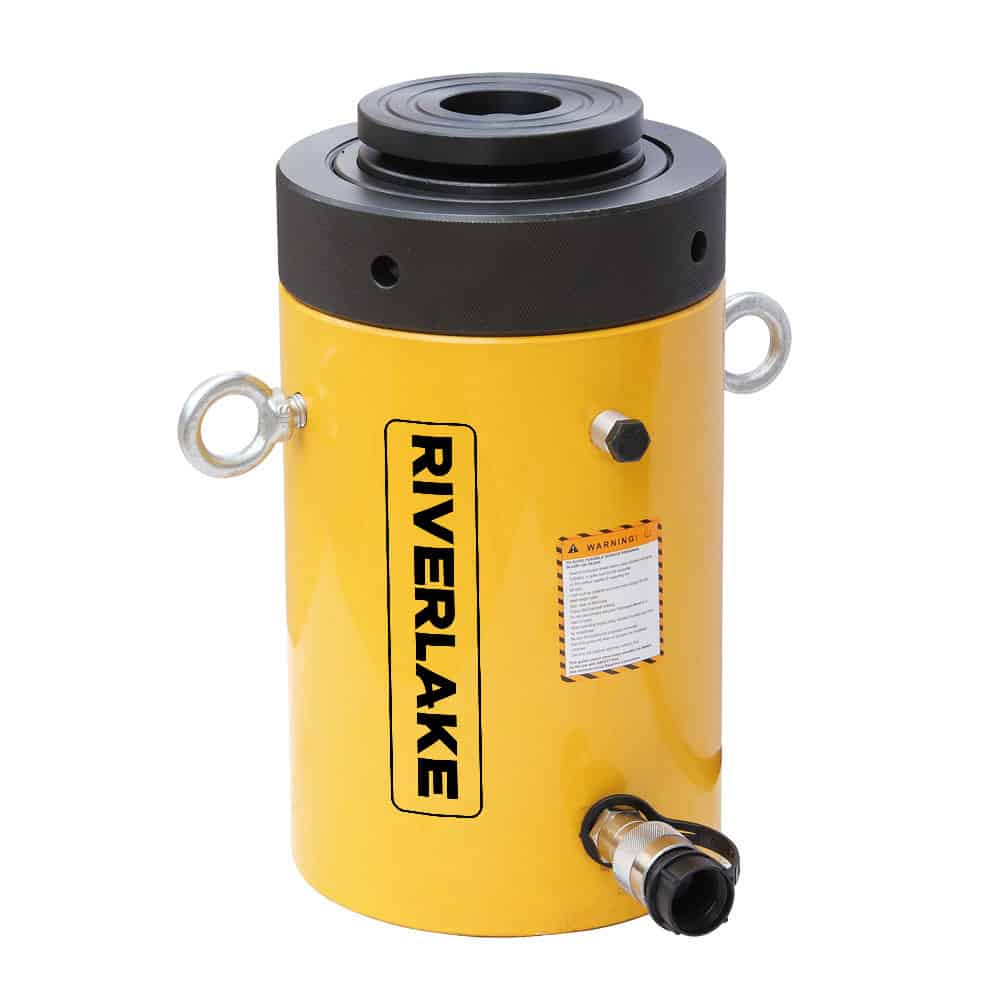

Hydraulic CylinderRCH-603
SaddleHP-5016
Hydraulic HoseHC-7206
Pressure GaugeGF813B
Gauge AdapterGA3
Grip PullerBHP-552
Cross Bearing PullerBHP-562
Bearing Cup PullerBHP-580
Bearing PullerBHP-582
Wooden BoxCW-750
Weight(Kg)298

Series Comparison

ModelCapacity(Ton)Power SourceHydraulic CylinderSaddleHydraulic HosePressure GaugeGauge AdapterGrip PullerCross Bearing PullerBearing Cup PullerBearing PullerWooden BoxWeight(Kg)
BHP-175214P-392 Hydraulic Hand PumpRCH-1211*HC-7206GF120BGA3BHP-1762BHP-1772BHP-180BHP-181CM-637
BHP-2751G20P-392 Hydraulic Hand PumpRCH-202HP-2015HC-7206GF813BGA3BHP-252BHP-262BHP-280BHP-282CW-35090
BHP-3751G30P-392 Hydraulic Hand PumpRCH-302HP-3015HC-7206GF813BGA3BHP-352BHP-362BHP-380BHP-382CW-350172
BHP-5751G50P-80 Hydraulic Hand PumpRCH-603HP-5016HC-7206GF813BGA3BHP-552BHP-562BHP-580BHP-582CW-750298
