Description
Model: PH1002
Product Lines: Industrial Tools

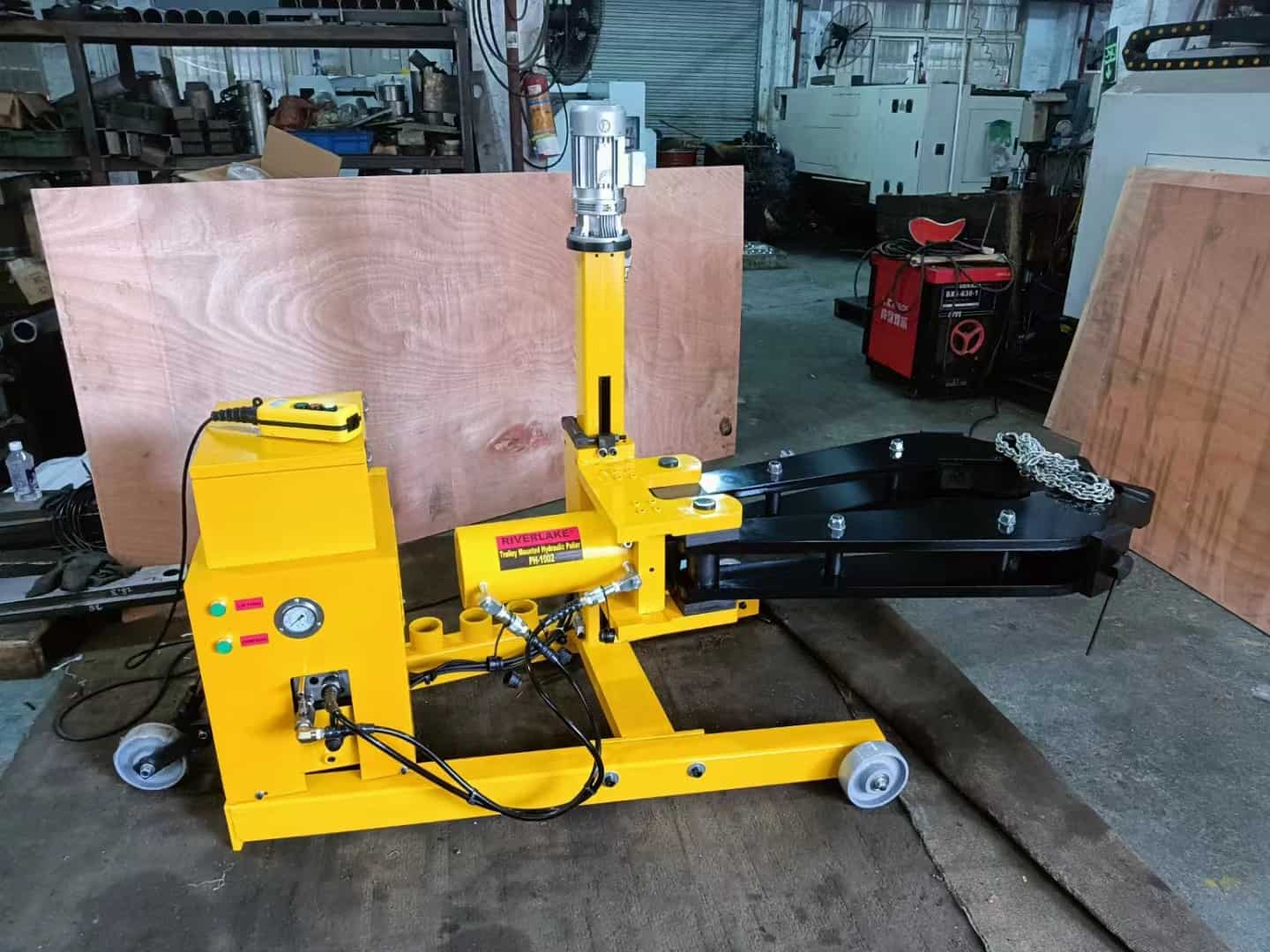

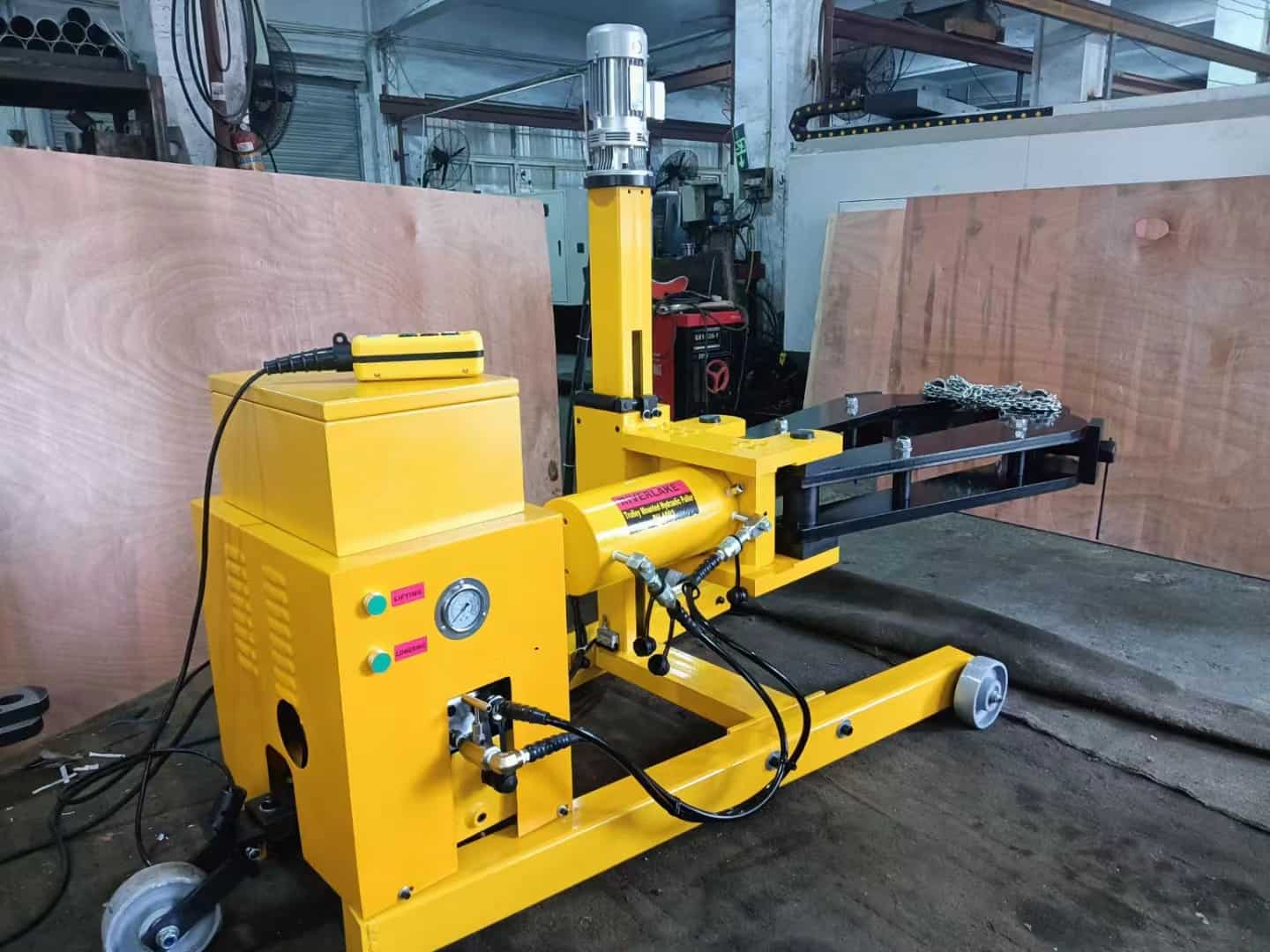

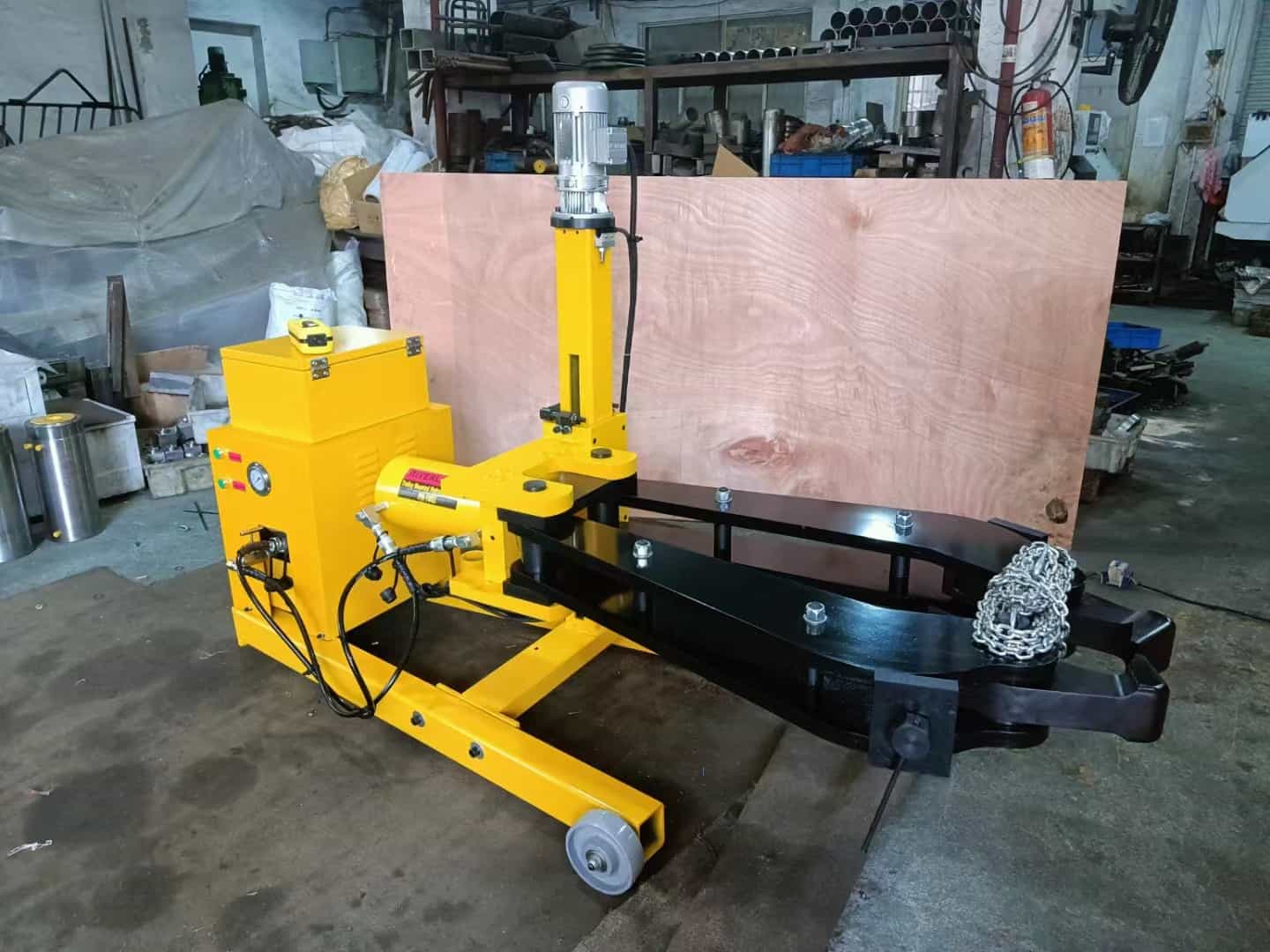

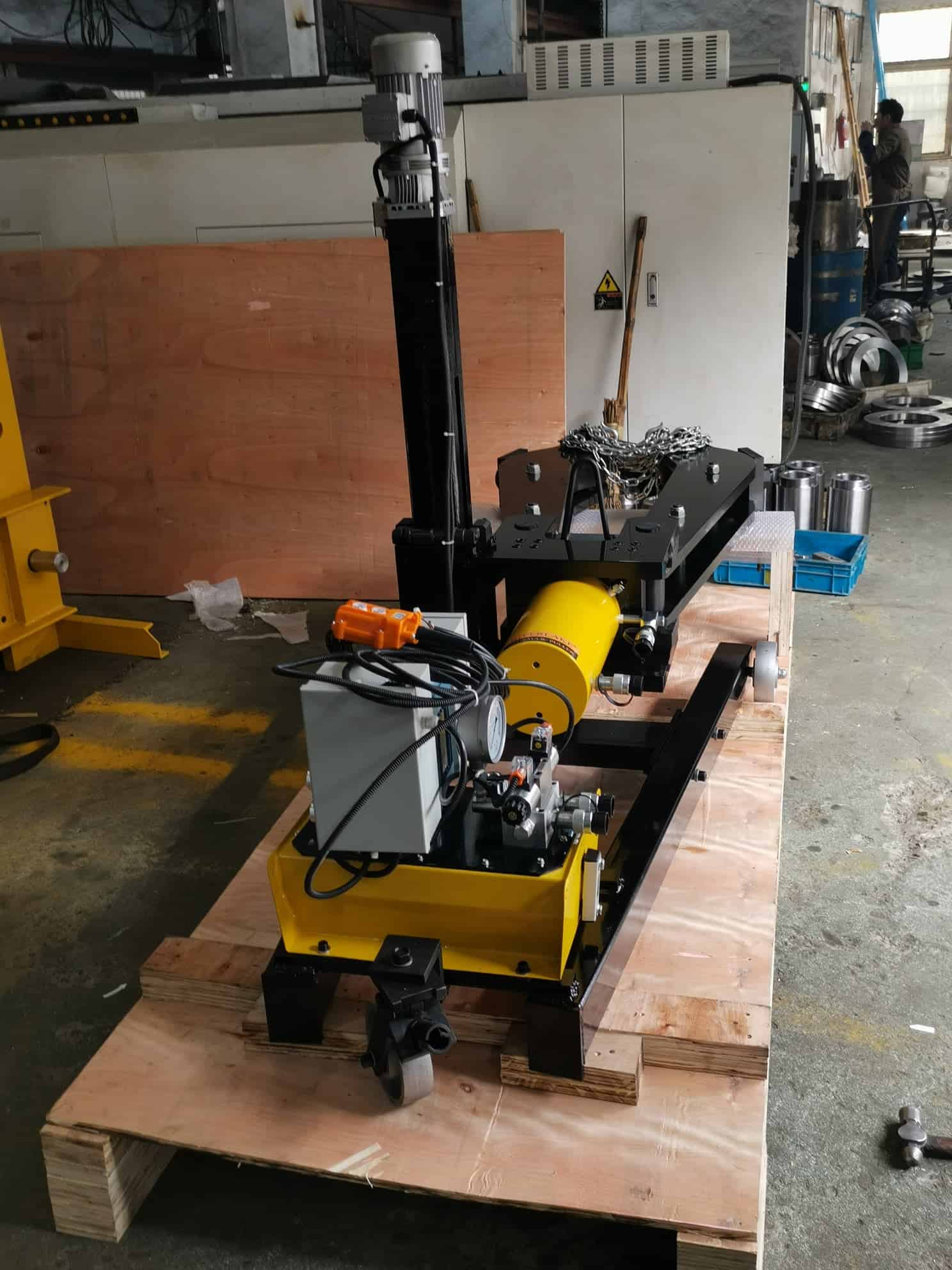

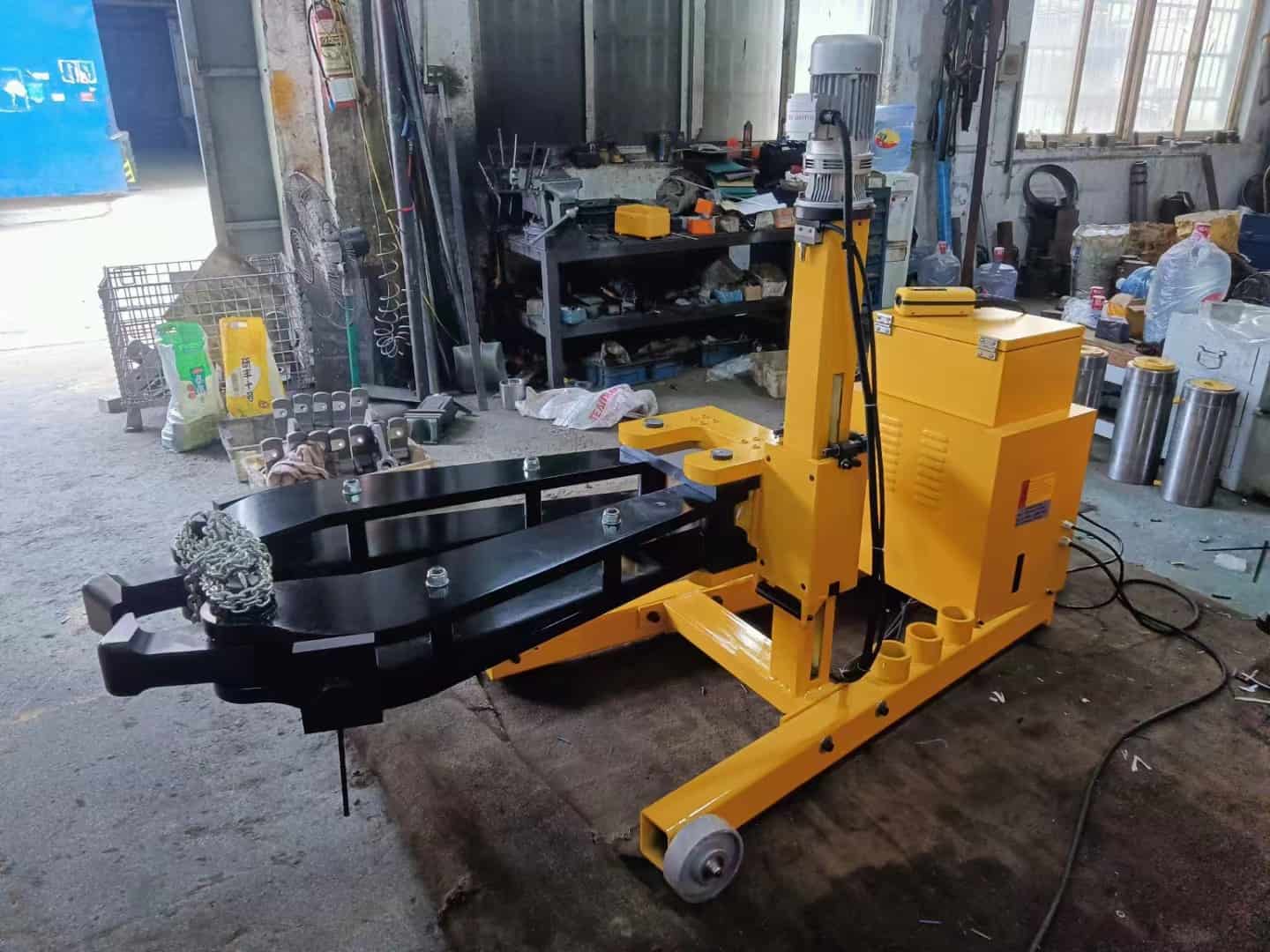

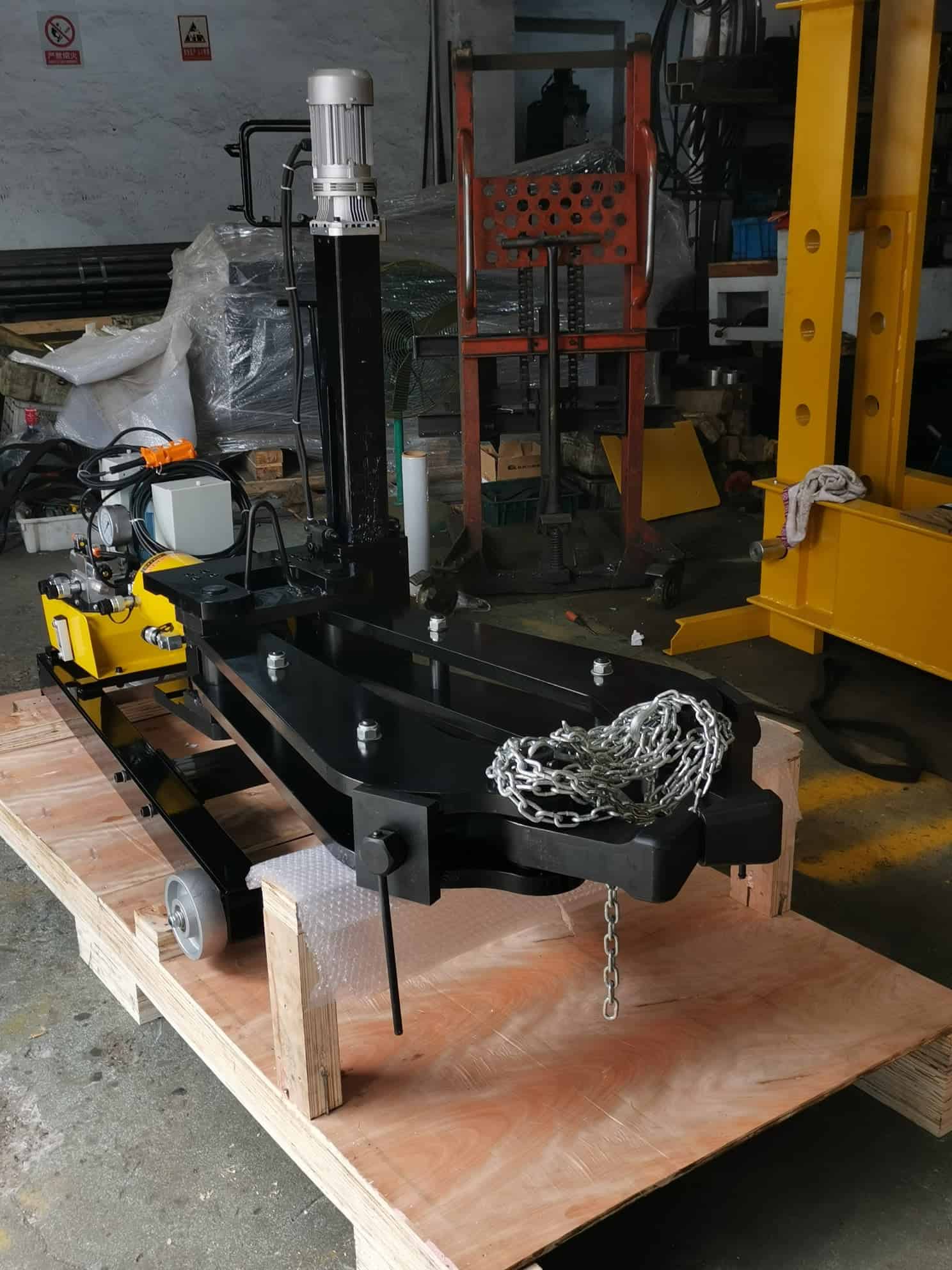

- The puller is self-centering, the arm slides inward or outward simultaneously, easy to maneuver and adjust in height.
- Can be equipped with an electric lifting motor.
- The complete stroke is 250mm,3 adapters(extensions) included.
- The jaw is made of forged high-strength steel alloy. The tighter the force, the harder the jaw grip.
- The integral safety release valve prevents overloading and ensures that you will never exceed the max working capacity.
- One person can do the job efficiently and save time.
- Remote control 220V/AC or 380V/AC electric power pack
- ABB motor and HAWE solenoid valve
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Specifications
Maximum Operating Pressure (bar) | 700 |
Number of Jaws | 2 |
Capacity(Ton) | 100 |
Stroke(mm) | 250 |
Min. Spread(mm) | 381 |
Max. Spread(mm) | 1219 |
Min.Reach(mm) | 860 |
Max. Reach(mm) | 1060 |
Center Height Adjustment(mm) | 305~915 |
Weight(Kg) | 550 |
