Description

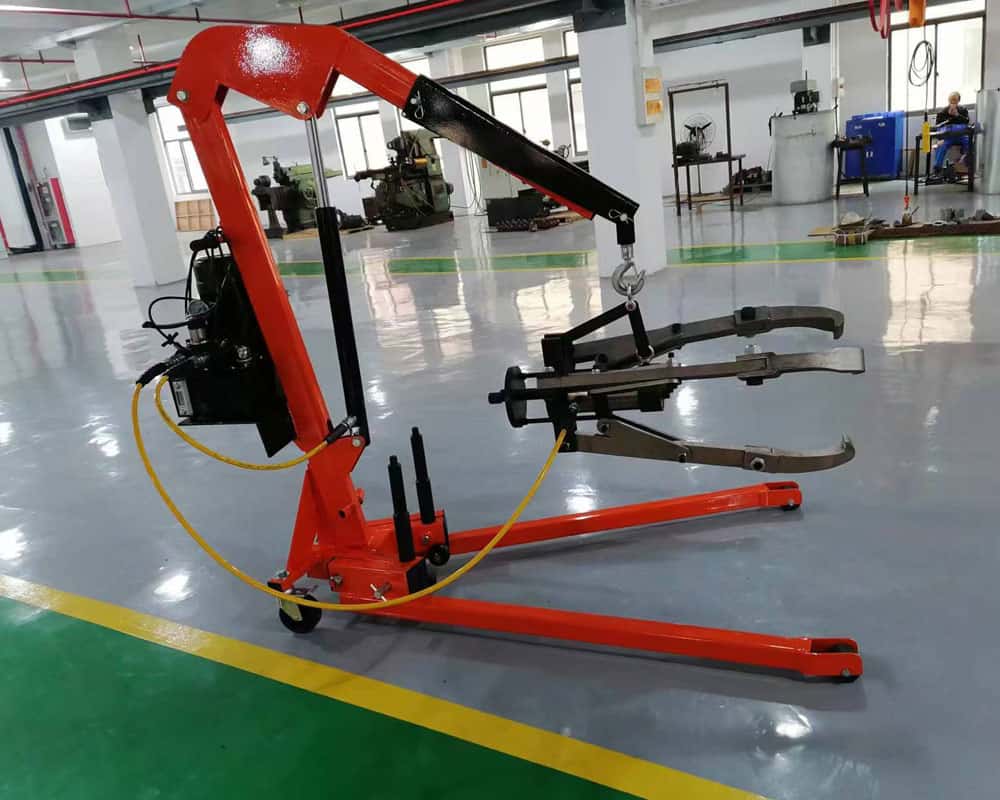

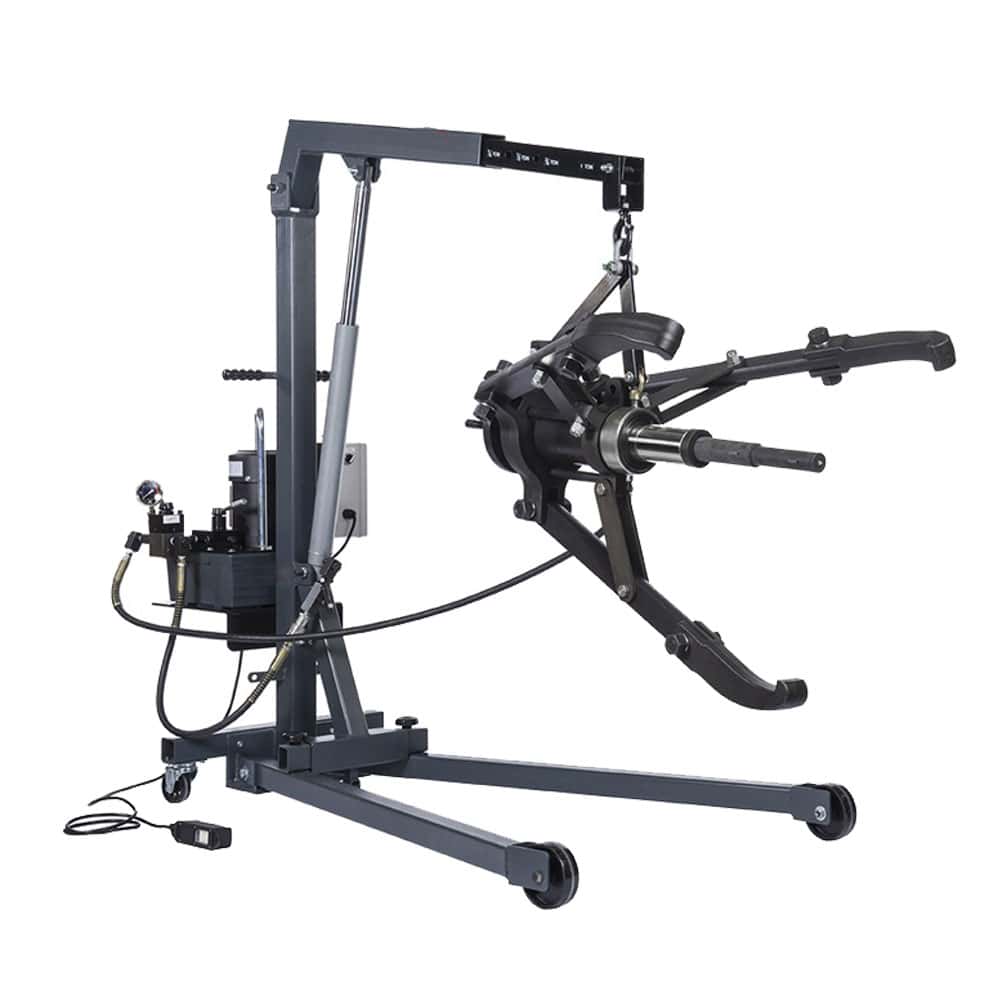

Model: BHT100
Product Lines: Hydraulic Pullers
- The puller is self-centering, easy to maneuver, and adjustable in height.
- 360° rotary coupler design for safe operation.
- Jaws proceed with forging made parts and special treatment for providing the best strength and long life use
- A unique safety valve designed to reduce the risk of the puller overload by limiting the applied force
- Manganous-phosphate coating for corrosion proof.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Specifications
Maximum Operating Pressure (bar) | 700 |
Capacity Class (tonnage) | 100 |
Stroke (mm) | 168 |
Spread(mm) | 230-1350 |
Reach(mm) | 650 |
Centeral Height(mm) | 300-1650 |
Trolley Dimension(mm) | 1180*2300*1650 |
Pump | 380V 1.5KW; 8L Oil Tank;2L/min Flow Rate |
Weight(Kg) | 385 |
