Description

Model: SW15TE

Product Lines: Industrial Tools

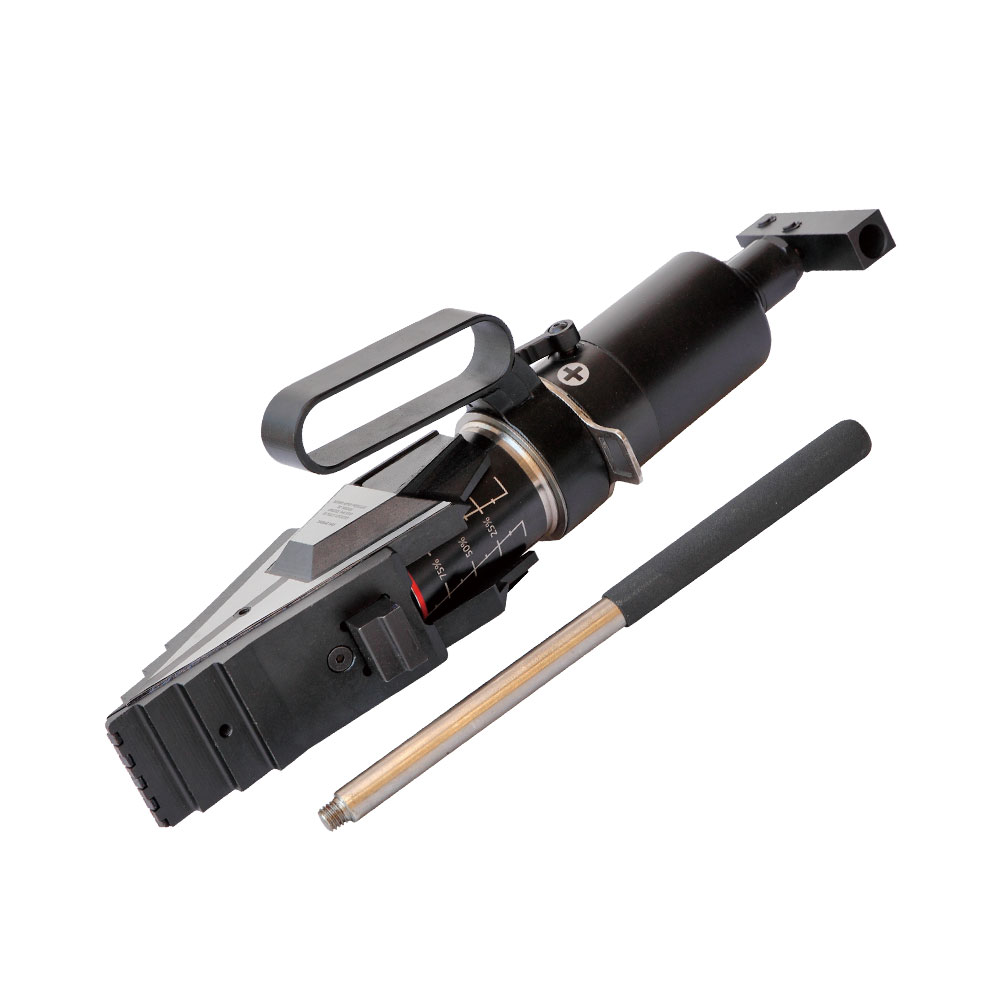

  • The hydraulic flange spreader is available as a set(pump, tool, gauge, gauge adapter. couplers, and hose) for your ordering convenience.
  • Suitable for maintenance, overhaul, testing, and valve replacement applications.
  • Integrated wedge design:friction-free, smooth, and parallel wedge movement eliminates flange damage and prevents spreading arm failure
  • Unique interlocking wedge design: no first step bending and risk of slipping out of joint
  • Require very small access of only a 6mm gap
  • Stepped  spreader arm design: each step can spread under full load

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Specifications

Maximum Operating Pressure (bar)700
Maximum Spreading Force (ton)15.5
Maximum Spread (mm)81
Tip Clearance (mm)6
Power SourceHydraulic
Oil Capacity (cm3)79
Weight (kg)14

Series Comparison

Model NumberMax Spreading Force/TonTip Clearance/mmMax Spread/mmSpreader Type Oil Capacity/cm³Weight/Kg
SW15TE15681Hydraulic7914
SW9TM9681Mechanical*7.5
