Description

Model: SWi12/14TM

Series: SW

Product Lines: Industrial Tools

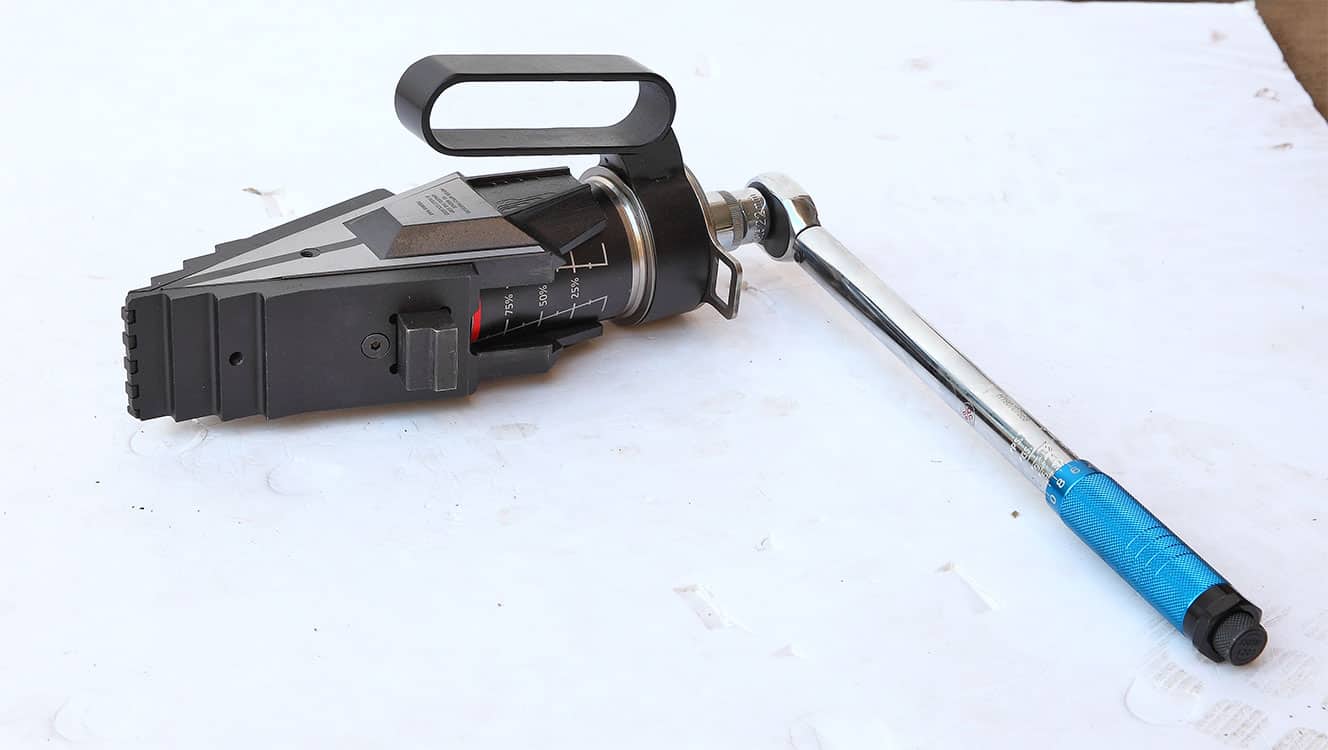

A simple solution to mechanically spreading flange joints with a minimum access gap of 6.0mm (0.25″). The SWi12/14TM Innovative Mechanical Flange Spreading Wedge provides a 30% higher spreading capacity than the SW9TM.

The tool is smaller, lighter, and narrower than the SW9TM. It features a swivel handle, no finger pinch points, and a safety lanyard as standard.

The SWi12/14TM is mechanically operated and capable of exerting a 14T (140kN) Spreading Force.

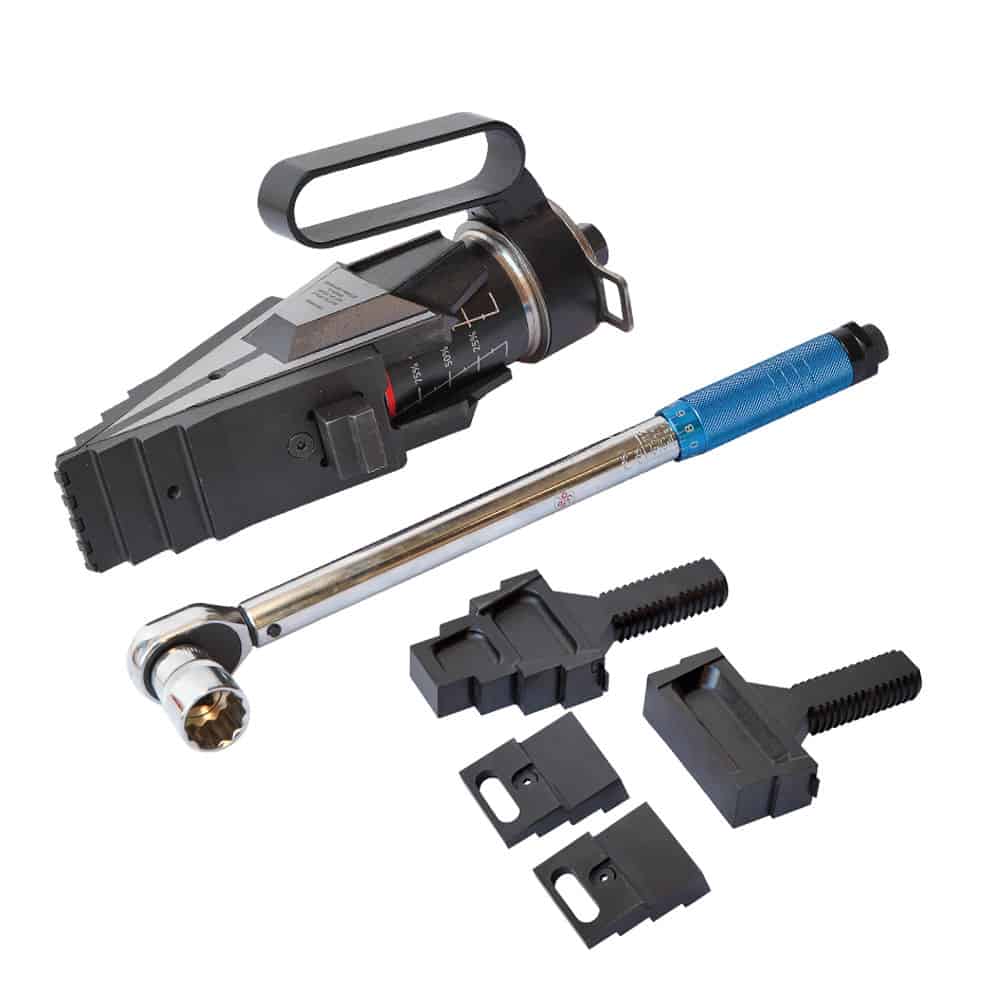

Delivery Includes:

1 x SWi12/14TM Mechanical Flange Spreader Wedgehead

1 x SWi12/14TM Mechanical Flange

1 x 12/14TM Mechanical Cylinder

1 x (230N.m) Torque Wrench with 22mm Socket

1 x Set of Safety Blocks

1 x Pair of Stepped Blocks

1 x Lanyard

1 x Hex Key

1 x Instruction Manual

1 x Plastic Carry Case

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Specifications

Maximum Operating Pressure (bar)700
Maximum Spreading Force (ton)14
Maximum Spread (mm)103,5
Spreading Starting Range(mm)6
Jaw Width/(mm)60
Tool Weight(kg)6,2
With Case Weight (kg)13
