Description

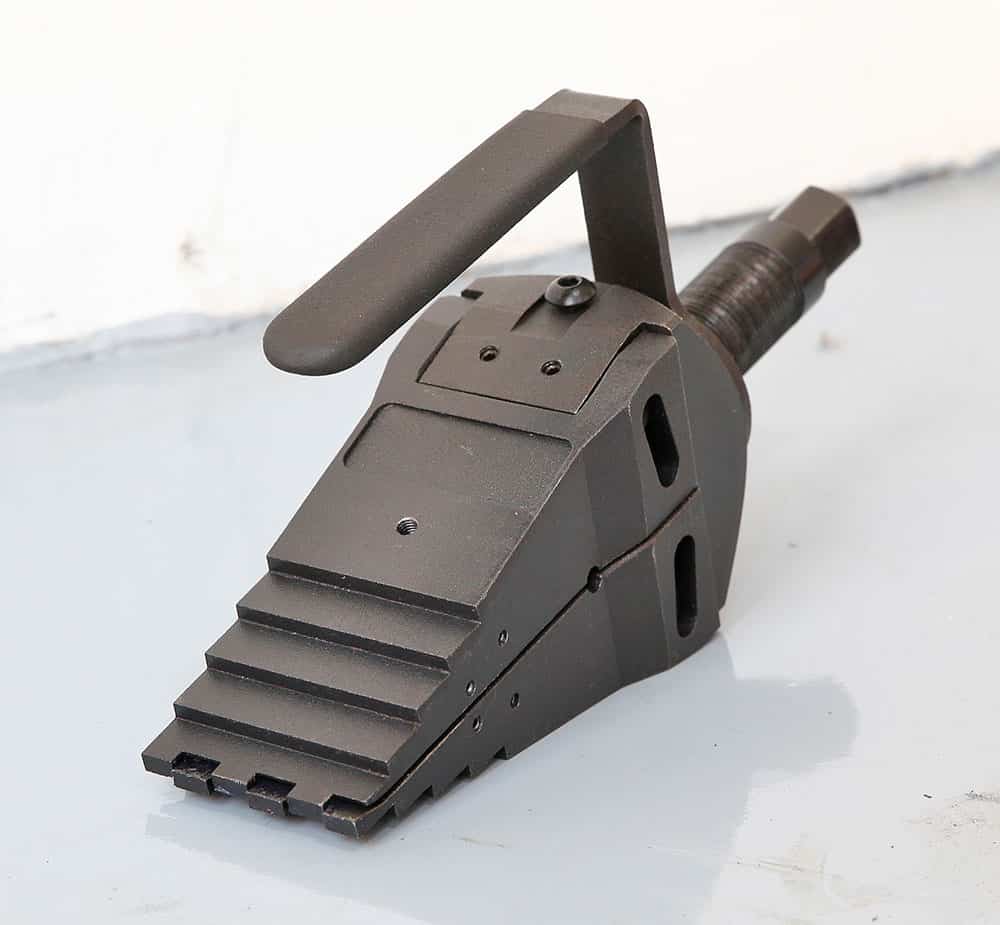

Model: SW9TM
Product Lines: Industrial Tools
- Flange spreading force 9 ton
- Spreading distance 81 mm
- The minimum required gap is 6 mm
- The tool is maintenance free
- Protected against corrosion
- It is used with a 200 N.m torque wrench
- Ergonomic – lightweight, easy use
- It can be operated individually or in pairs
- Used for safely opening pipe flanges
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Specifications
Maximum Operating Pressure (bar) | 700 |
Maximum Spreading Force (ton) | 9 |
Maximum Spread (mm) | 81 |
Tip Clearance (mm) | 6 |
Power Source | Mechanical |
Weight (kg) | 7.5 |
Series Comparison
Model Number | Max Spreading Force/Ton | Tip Clearance/mm | Max Spread/mm | Spreader Type | Oil Capacity/cm³ | Weight/Kg |
---|---|---|---|---|---|---|
SW15TE | 15 | 6 | 81 | Hydraulic | 79 | 14 |
SW9TM | 9 | 6 | 81 | Mechanical | * | 7.5 |
