Description

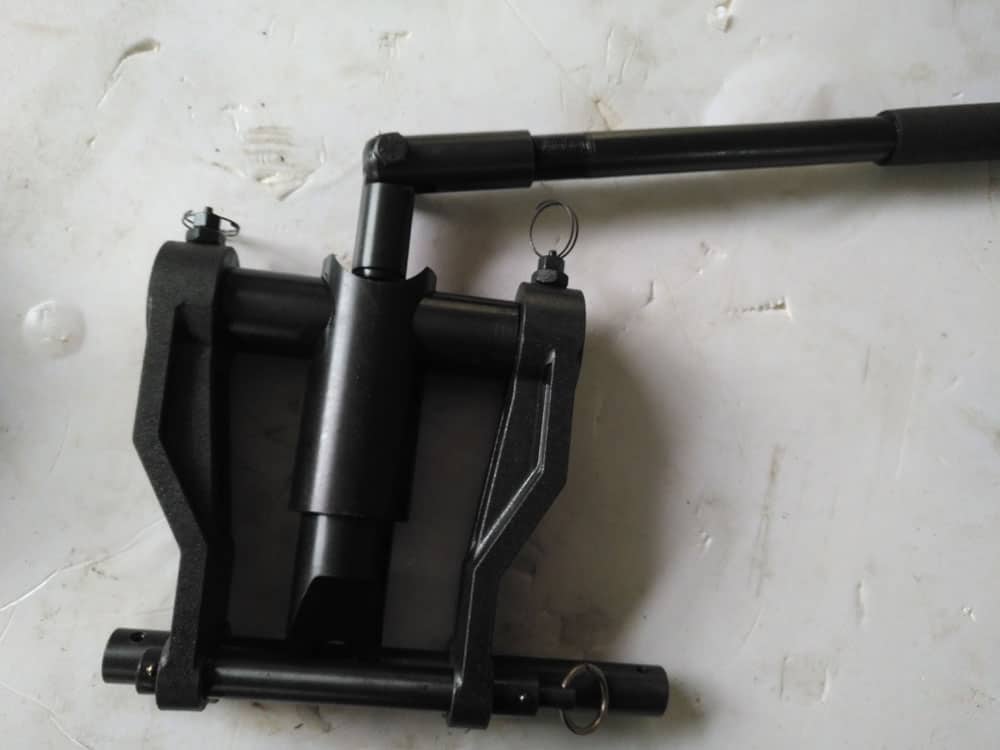

Model: MG7TMSTD

Product Lines: Industrial Tools

For use on smaller, lower pressure flange joints if the flange joint you are working on has an access gap of 2.0mm (0.08″). The tool will provide 7 ton of spreading force. It is recommended that tools are used in pairs giving: 14 tons of spreading force.

  • A reversible leg design gives a greater range of applications
  • Unique double-angled wedge produces great spreading force without reducing the spreading distance
  • Robust lightweight tool
  • Locks on to flange joint
  • 1 x MG7TM Tool
  • 2 x Spreading Bar
  • Gross Set Weight: 11,5 kg

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Dimensions

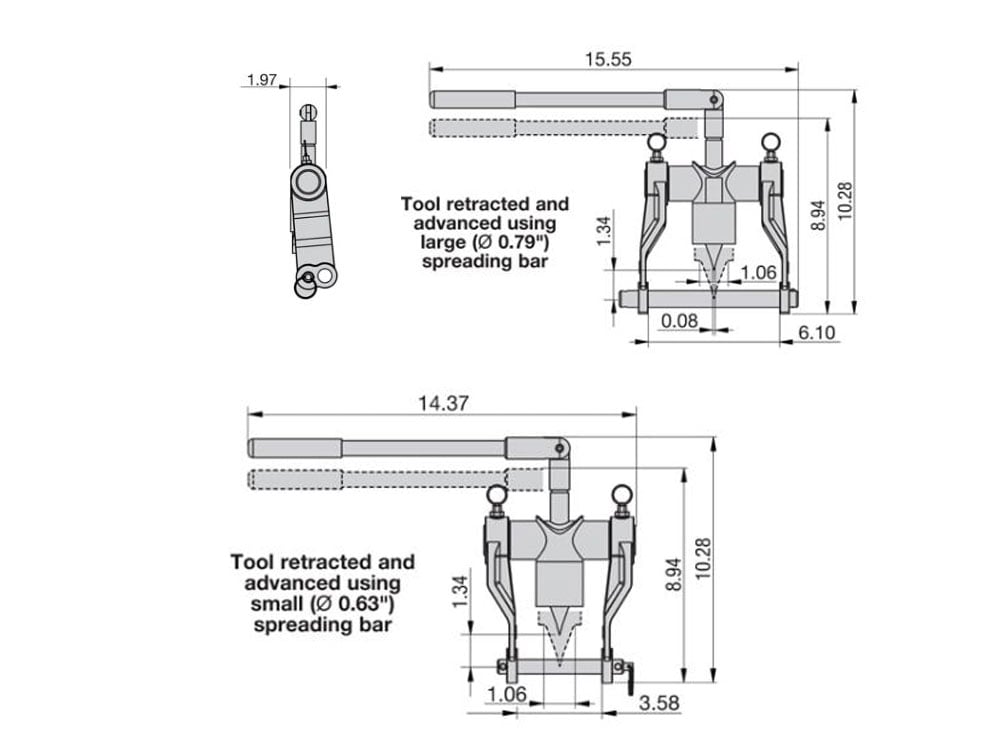

MG7TMSTD, 7 Ton, Mini-Gap Flange Spreader Dimension

Specifications

Maximum Operating Pressure (bar)700
Maximum Spreading Force (ton)7
Maximum Spread (mm)27
Tip Clearance (mm)2
Power SourceMechanical
Weight (kg)11.5
