Model: FSM8

Series: FSM

Product Lines: Industrial Tools

  • Integrated wedge concept: friction-free, smooth, parallel wedge movement eliminates flange damage and spreading arm failure
  • Unique interlocking wedge design: no first step bending and risk of slipping out of joint
  • Requires a very small access gap of only 6mm
  • Stepped spreader arm design: each step can spread under full load
  • Few moving parts mean durability and low maintenance
  • Safety block SB1 and ratchet spanner SW22 included

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!


Maximum Operating Pressure (bar)700
Maximum Spreading Force (ton)8
Maximum Spread (mm)81
Tip Clearance (mm)6
Power SourceMechanical
Weight (kg)6.5

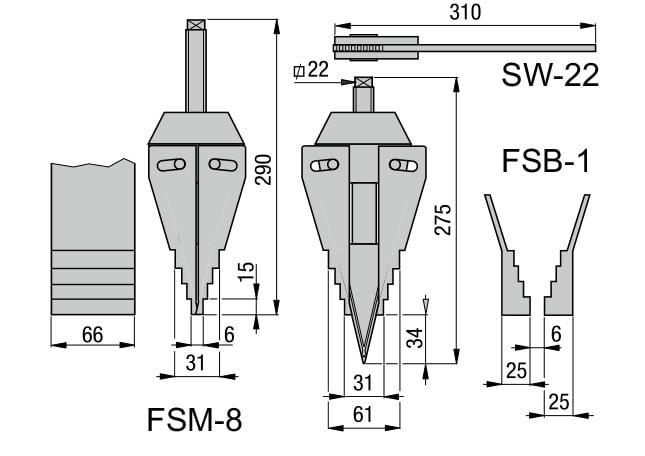

 FSM8, 8 Ton, Mechanical Industrial Spreader Dimension

Series Comparison

Model NumberMax Spreading Force/TonTip Clearance/mmMax Spread/mmSpreader Type Oil Capacity/cm³Weight/Kg
