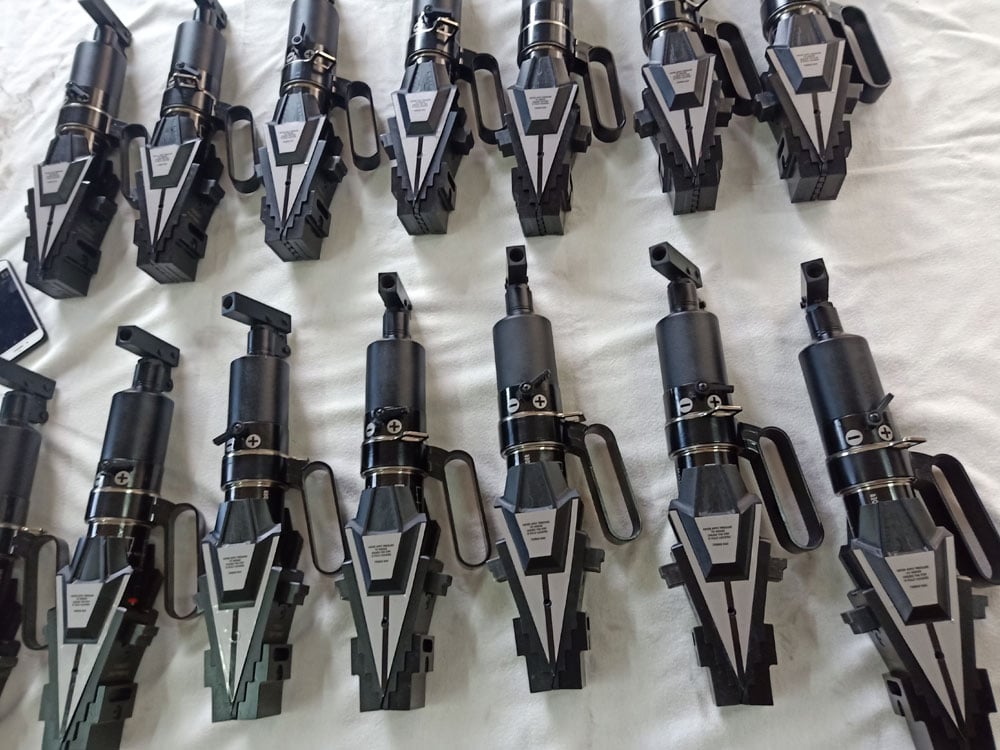

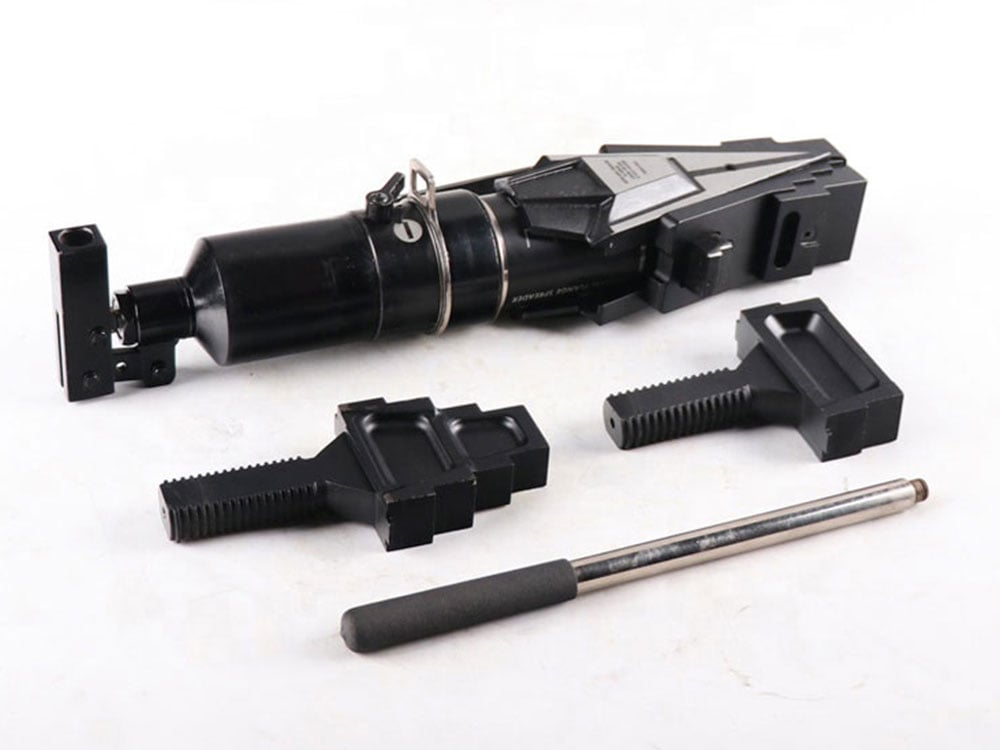

Model: SWI20/25TI

Series: SWI

Product Lines: Industrial Tools

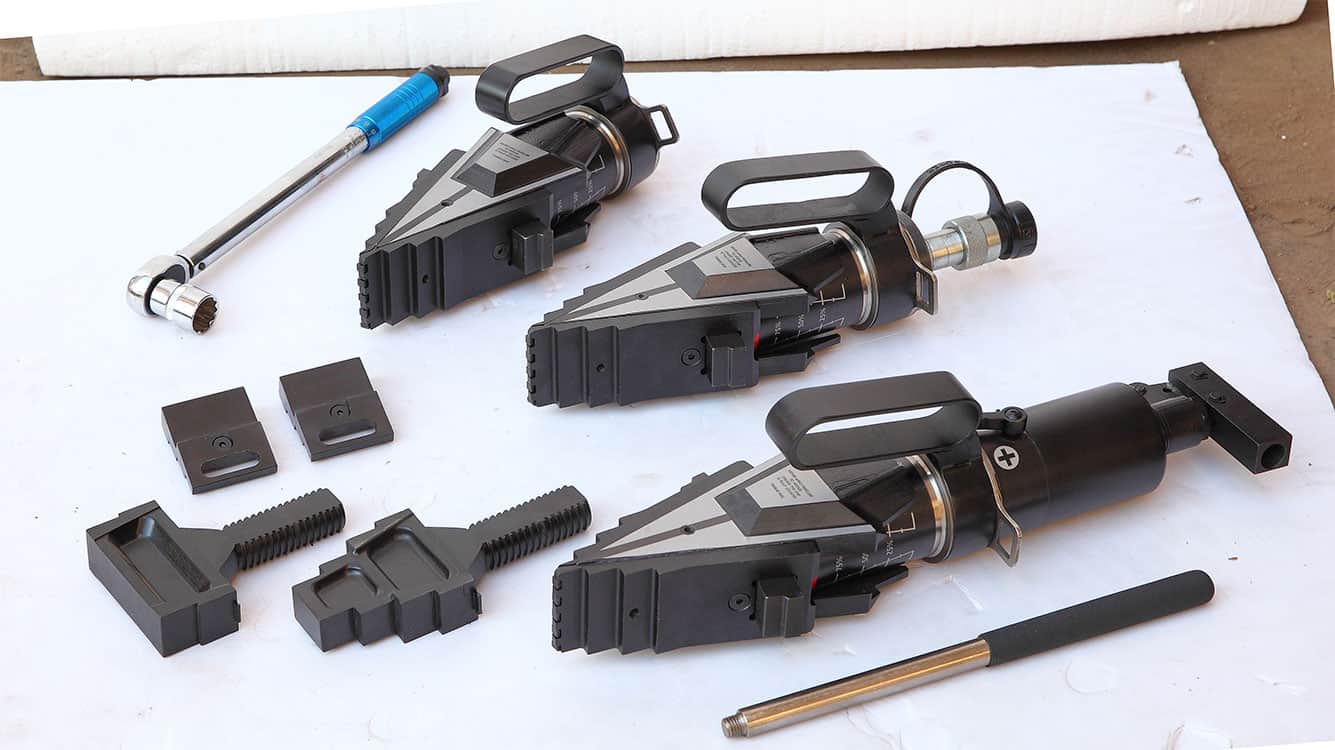

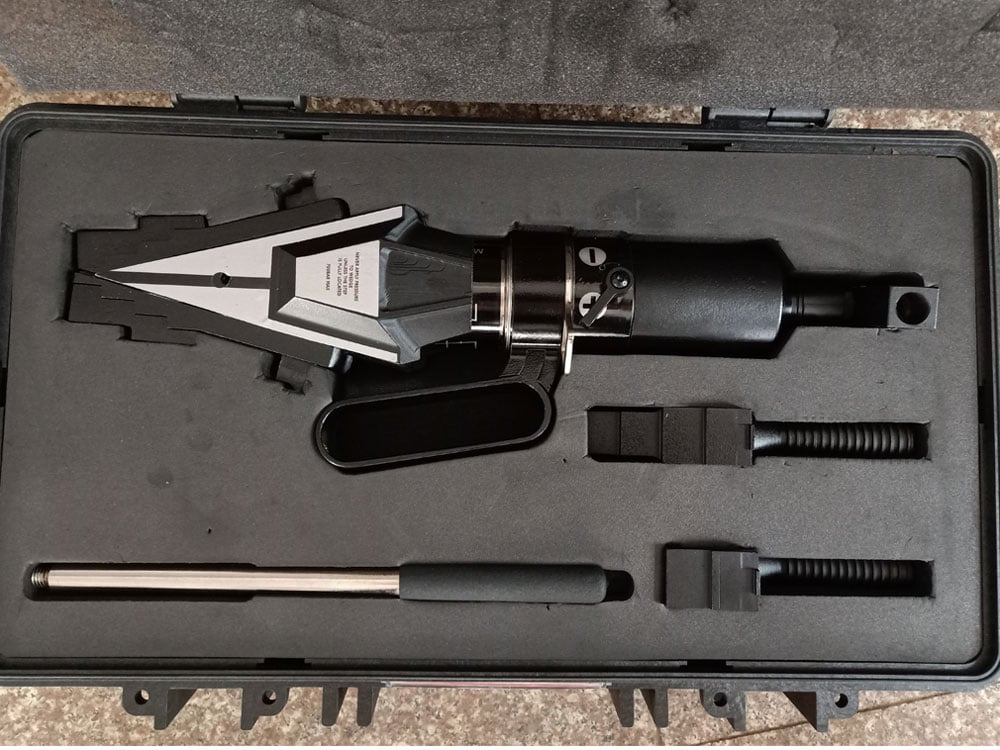

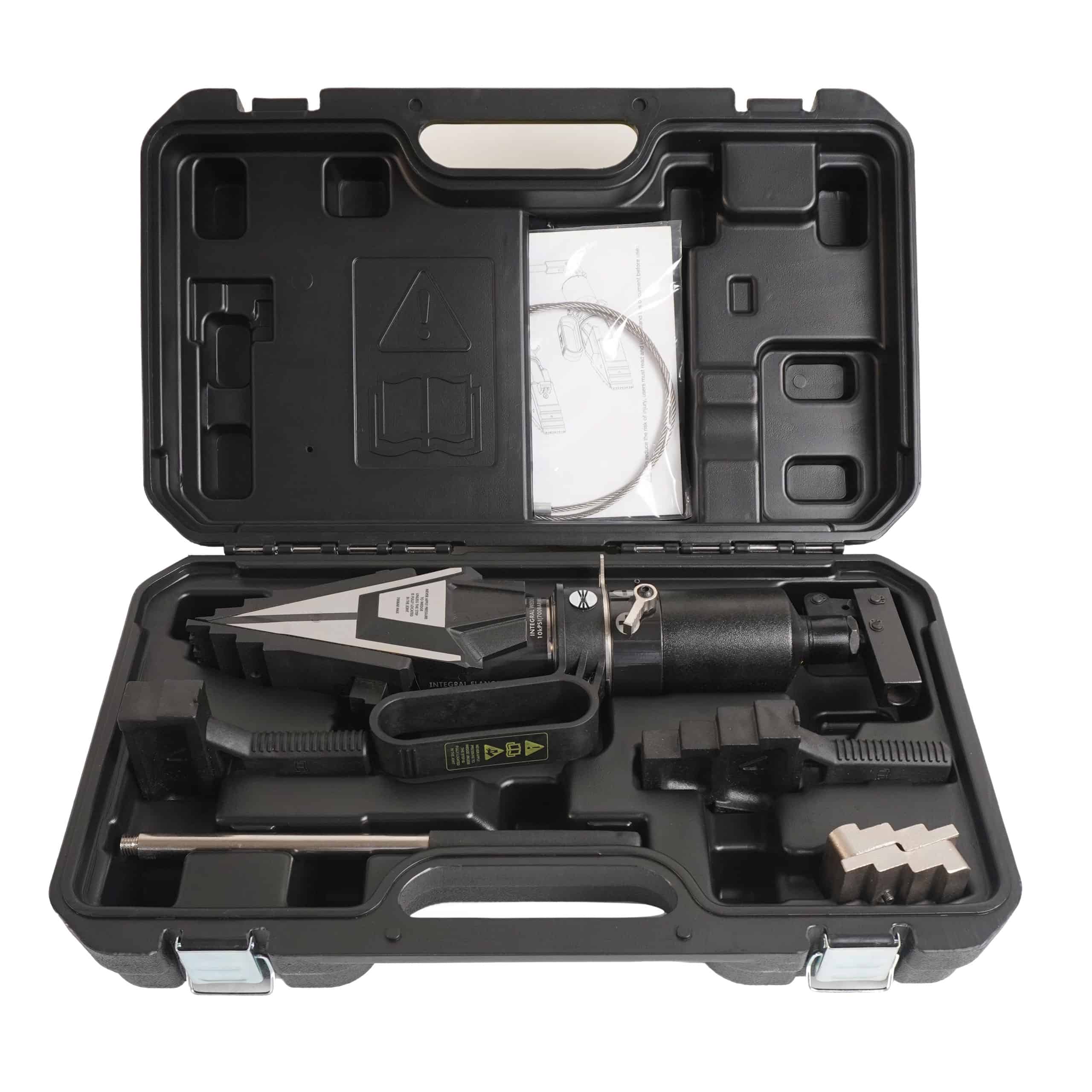

Tool Kit Inclusions:

  • 1 x SWI2025TI Flange Spreader Wedgehead
  • 1 x 10,000psi (700bar) Integral Hydraulic Pump/Cylinder
  • 1 x Set of Safety Blocks
  • 1 x Pair of Stepped Blocks
  • 1 x Lanyard
  • 1 x Hex Key
  • 1 x Carry-Strap
  • 1 x Instruction Manual

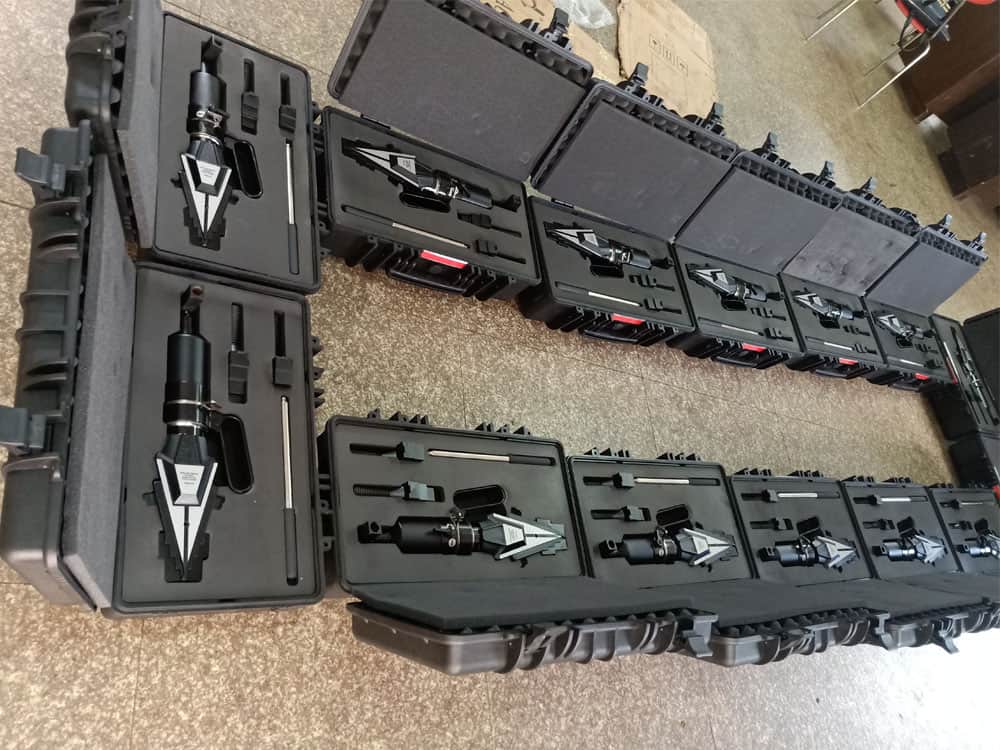

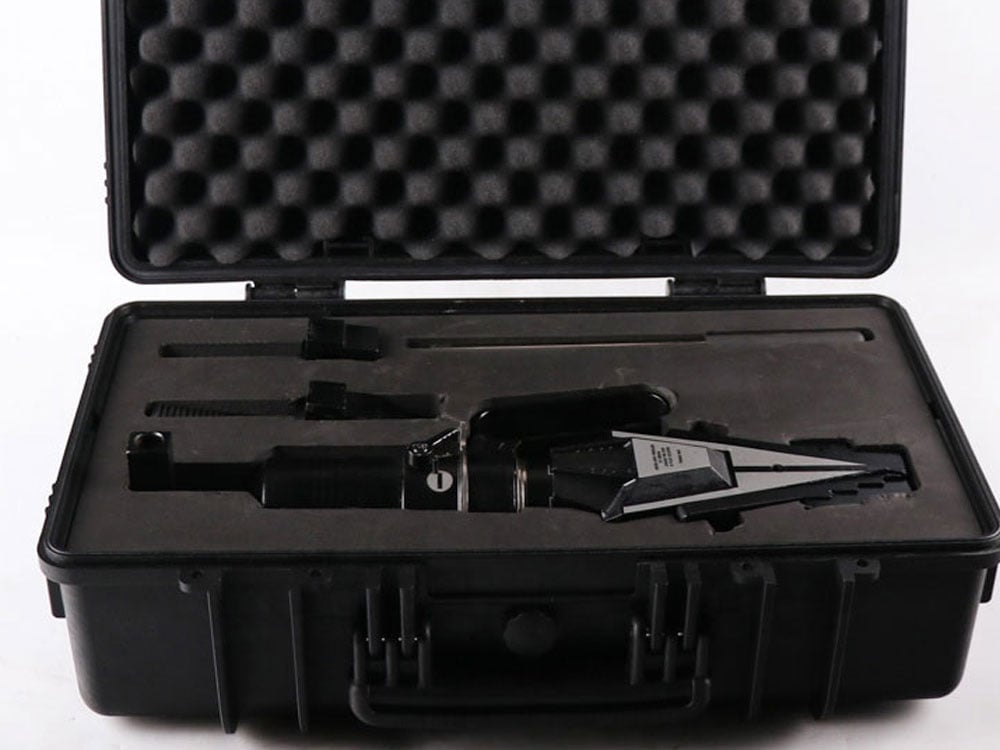

  • 1 x Carry Case

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!


Maximum Operating Pressure (bar)700
Maximum Spreading Force (ton)24
Maximum Spread (mm)103.5
Tip Clearance (mm)6
Jaw Width(mm)60
Power SourceIntegral Hydraulic Type
Weight (kg)18.1


SWI20/25TI, 24 Ton Integral Hydraulic Flange Spreader Dimension

Series Comparison

ModelCapacity/TonMaximum Spread/mmTip Clearance/mmJaw Width/mmOil Capacity/cm3PowerWeight/Kg
SWi2025TE24103,5660250Split Hydraulic Power15
SWI20/25TI24103.5660*Integral Hydraulic Type18.1
SW14.5TE14.5816**Integral Hydraulic Type10
