Description
Model: SW14.5TI
Series: SWI
Product Lines: Industrial Tools

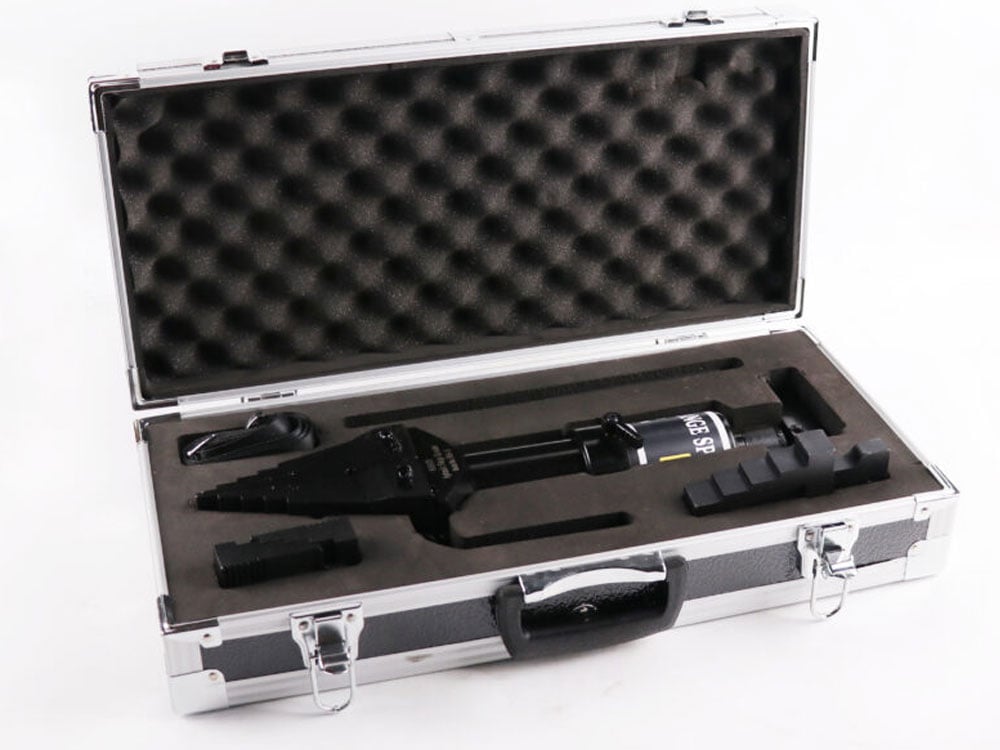

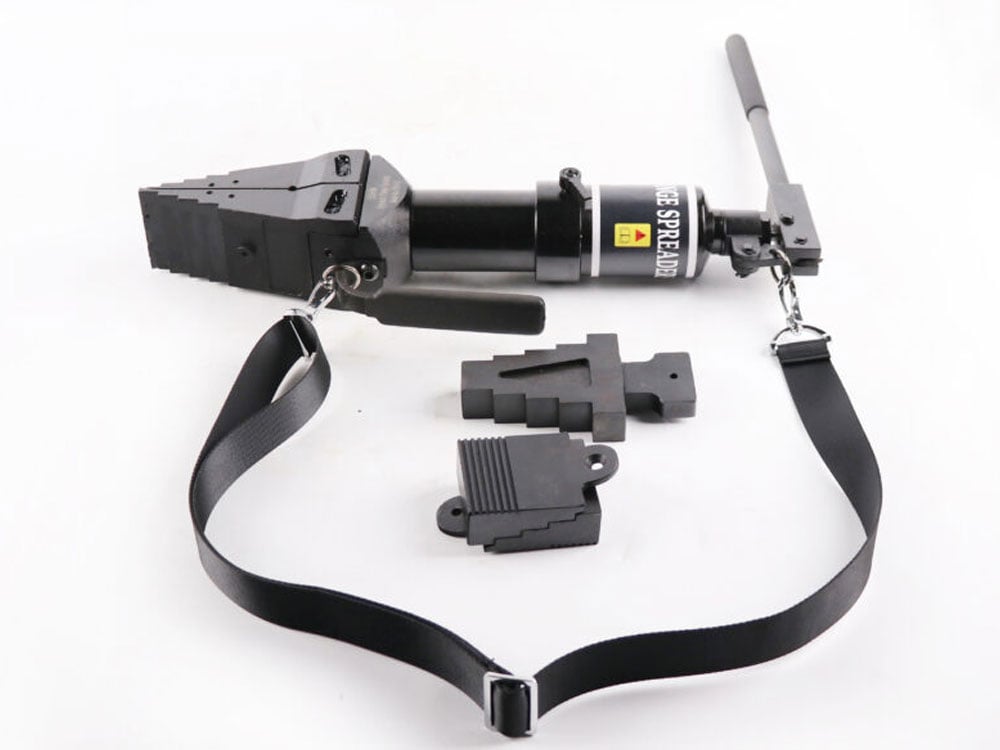

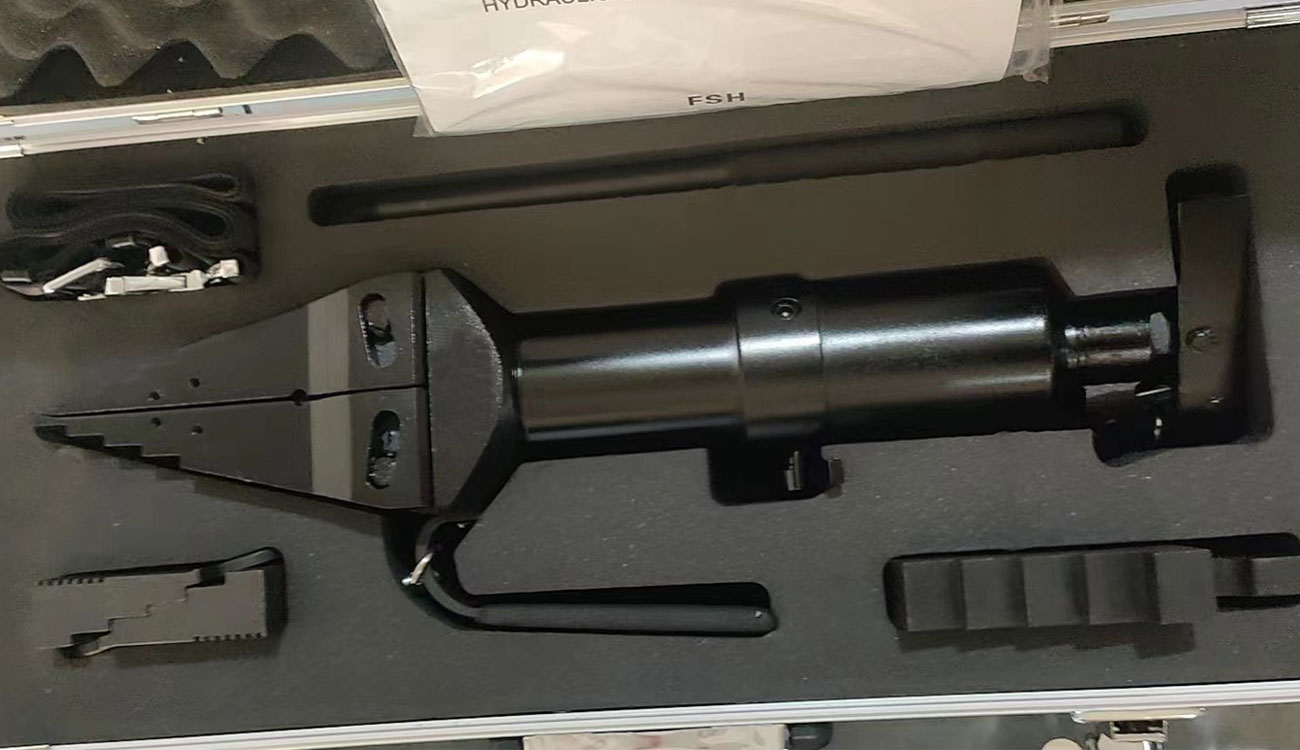

Tool Kit Inclusions:
- 1 X SW14.5TI Wedgehead
- 1 X 700bar Integral Hydraulic Pump/Jack
- 1 X Safety Block;1 X Pair of Stepped Blocks
- 1 X Carry Strap; 1 X Carry Case.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Specifications
Maximum Operating Pressure (bar) | 700 |
Maximum Spreading Force (ton) | 14.5 |
Maximum Spread (mm) | 81 |
Tip Clearance (mm) | 6 |
Power Source | Integral Hydraulic Type |
Weight (kg) | 10 |
Dimensions

Series Comparison
Model | Capacity/Ton | Maximum Spread/mm | Tip Clearance/mm | Jaw Width/mm | Oil Capacity/cm3 | Power | Weight/Kg |
---|---|---|---|---|---|---|---|
SWi2025TE | 24 | 103,5 | 6 | 60 | 250 | Split Hydraulic Power | 15 |
SWI20/25TI | 24 | 103.5 | 6 | 60 | * | Integral Hydraulic Type | 18.1 |
SW14.5TE | 14.5 | 81 | 6 | * | * | Integral Hydraulic Type | 10 |
