Description

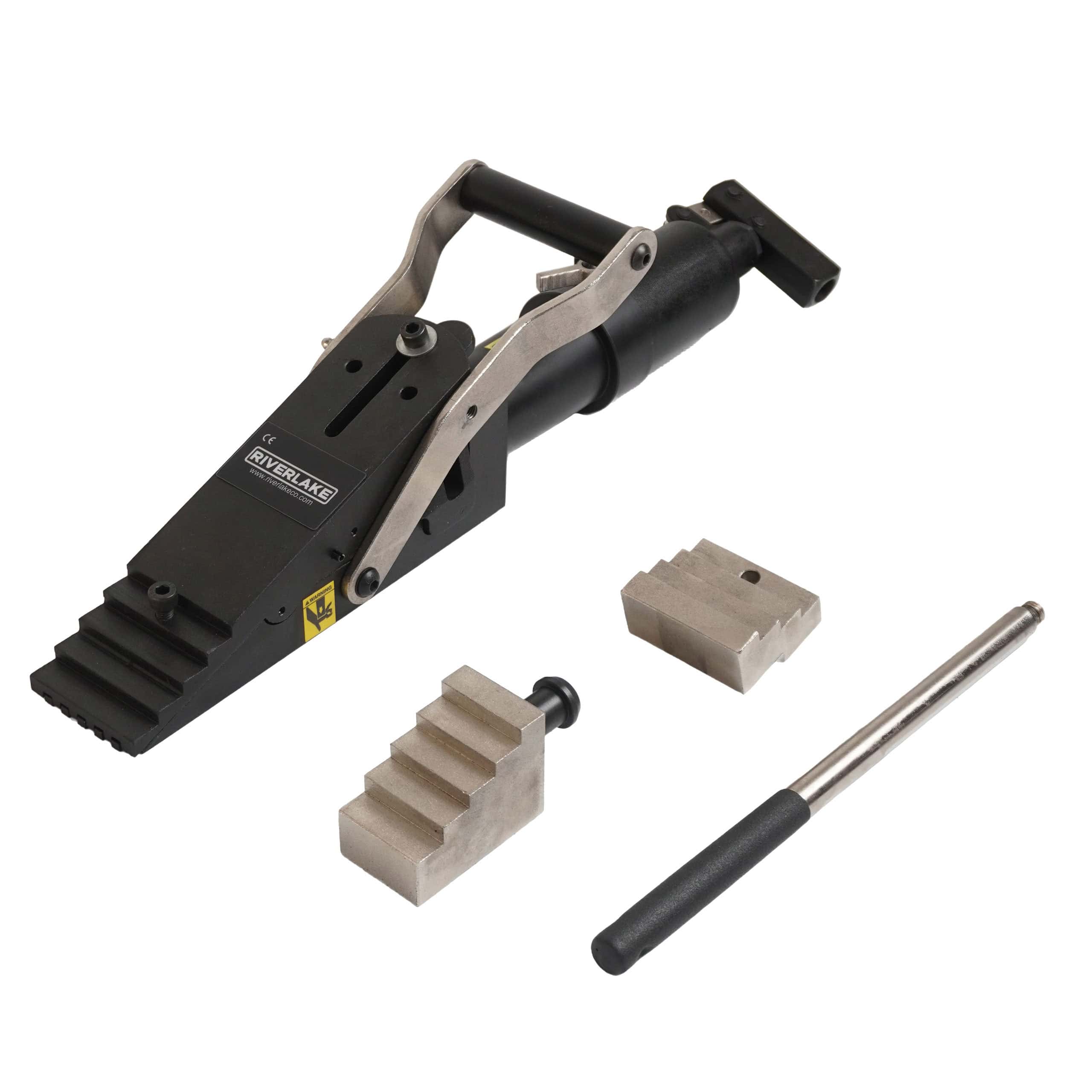

Model: LW-18
Series: LW
Product Lines: Industrial Tools
- Integral Vertical Lifting Wedge
- Requires very small access gap of 10mm
- Each step can spread under full load
- Includes safety block SB2
- Single acting, spring return
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Specifications
Maximum Operating Pressure (bar) | 700 |
Maximum Spreading Force (ton) | 16 |
Maximum Spread (mm) | 81 |
Stroke (mm) | 21 |
Min Width(mm) | 10 |
Power Source | Integral Hydraulic Type |
Weight (kg) | 12 |
